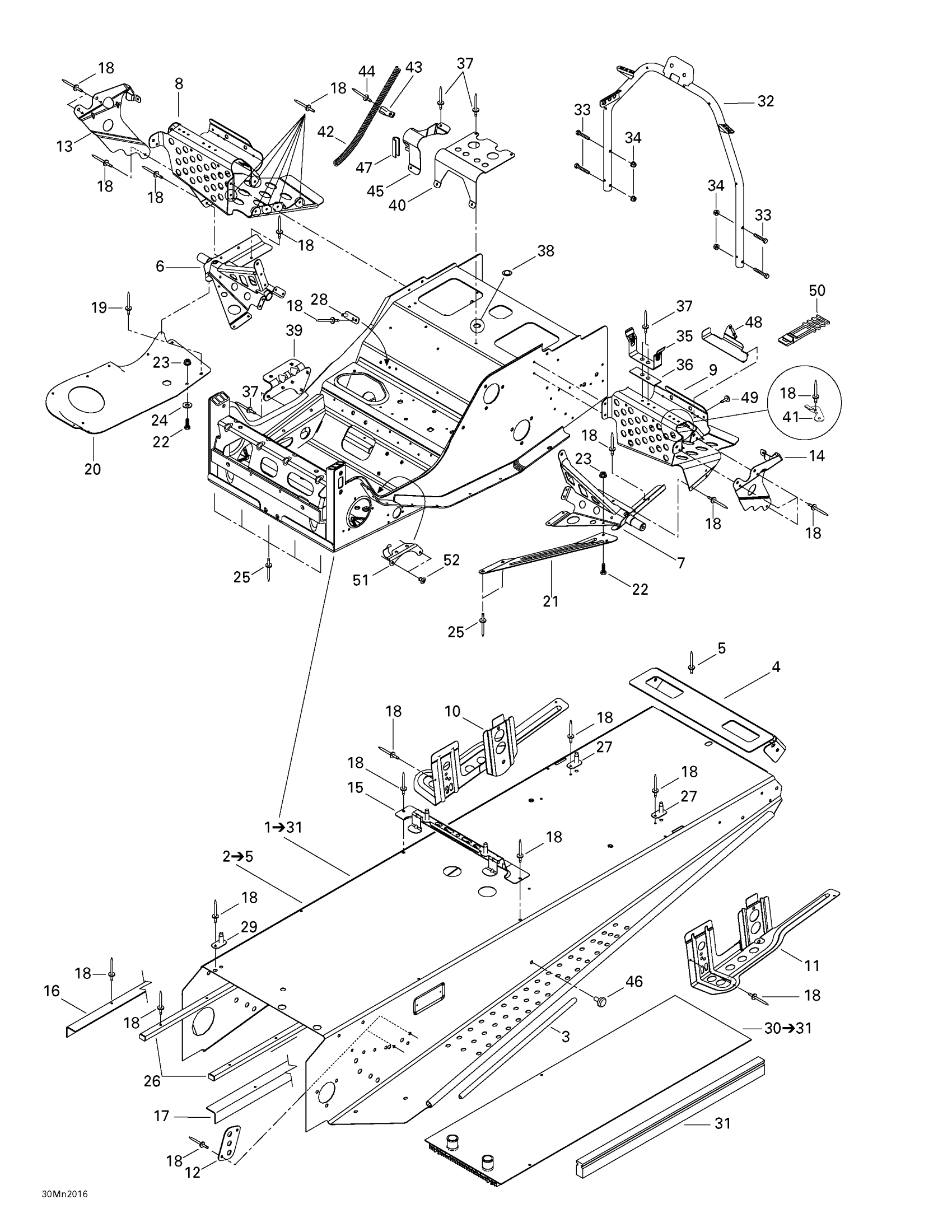

Ski-Doo Formula Z 600/700, 2000 Frame And Accessories Diagram
#
1
Frame | Includes 1 - 31.
518322091
Unavailable
2
Forming Frame | Includes 2 - 5.
518322115
Unavailable
3
FOOTREST REINFORCEMENT - Call your local BRP dealership
518304746
Unavailable
6
RH Footrest Support
518320506
Unavailable
8
RH Footrest
518319722
Unavailable
9
LH Footrest
518319723
Unavailable
10
RH Slide Bracket
518319742
Unavailable
11
LH Slide Bracket
518319743
Unavailable
16
RH Frame Reinforcement
518321561
Unavailable
17
LH Frame Reinforcement
518321562
Unavailable
19
Pop Rivet 3/16"
390402300
Unavailable
20
RH Bottom Pan Plate | 600
518319760
Unavailable
23
Hex. Flange Elastic Nut M5
233251414
Unavailable
24
FLAT WASHER - Call your local BRP dealership | 4X4
250200081
Unavailable
25
HENROB RIVET - Call your local BRP dealership
390910300
Unavailable
26
Frame Protector
518321543
Unavailable
27
Guide
518319730
Unavailable
28
Double Bracket
518319728
Unavailable
29
Guide
518321604
Unavailable
30
Rear Radiator | Includes 29 - 30.
517296300
Unavailable
31
Radiator Protector
518321655
Unavailable
32
Handle Support
518321957
Unavailable
34
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
39
Muffler Support | Formula DLX 500 F.
518206300
Unavailable
40
AIR INTAKE SUPPORT - Call your local BRP dealership
518310400
Unavailable
42
ROPE GUIDE - Call your local BRP dealership
518321569
Unavailable
43
Open Clamp
518321570
Unavailable
44
Pop Rivet 3/16"
390406500
Unavailable
45
Hose Support
518319762
Unavailable
46
Panel Fastener
518321954
Unavailable
47
Was 271000110 Protection Trim
219704353
Unavailable
48
Tool Kit Support
518321999
Unavailable
49
Pop Rivet 3/16"
390406500
Unavailable
50
LATCH - Call your local BRP dealership
570069700
Unavailable
51
Cable Support
515175254
Unavailable
52
Pop Rivet 3/16"
390402300
Unavailable
