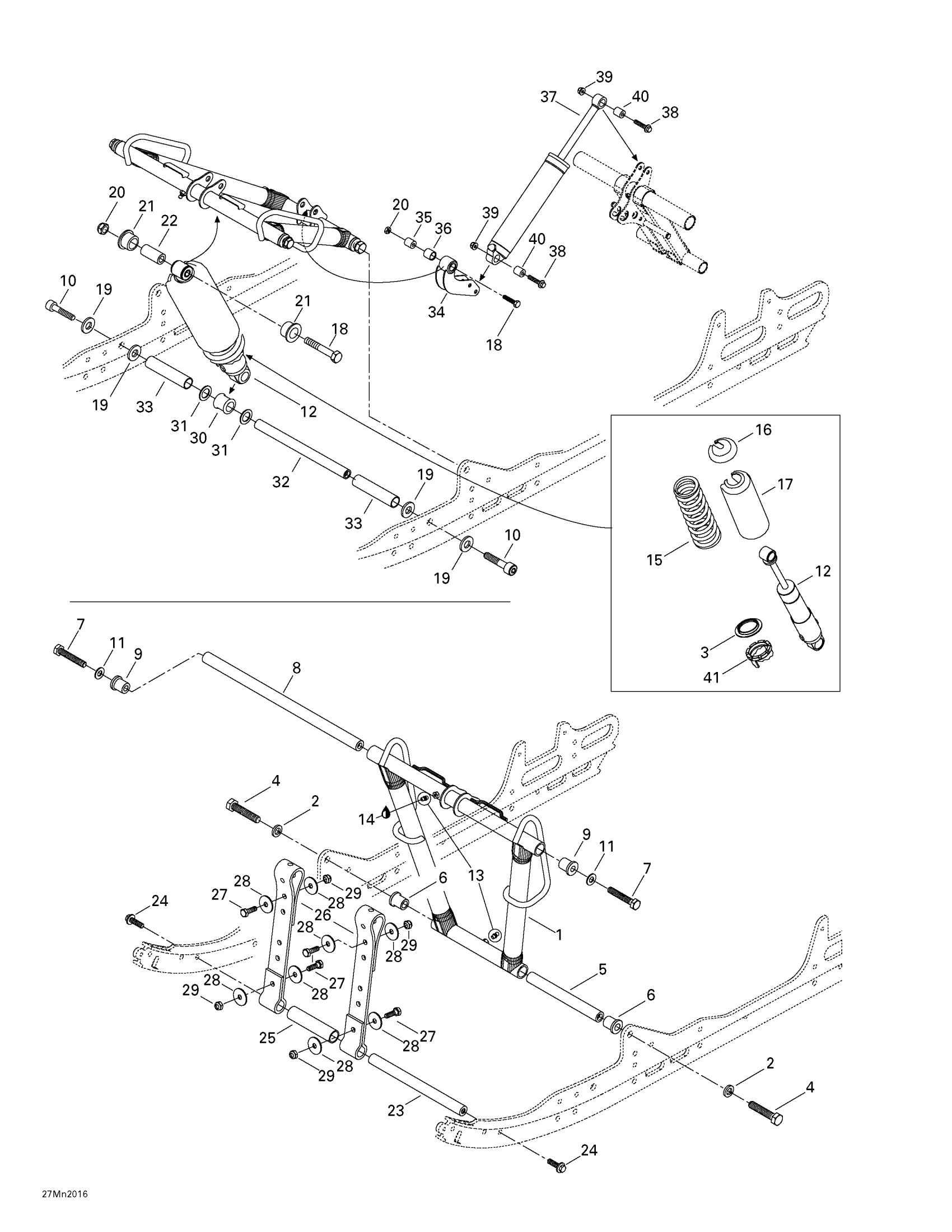

Ski-Doo Formula Z 600/700, 2000 Front Arm Diagram

#

Description
Price

1

Front Arm

503189292

Unavailable

2

Washer

503189276

$3.20

3

Spring Guide

503187500

$7.37

4

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

5

SHAFT - Call your local BRP dealership

503189313

Unavailable

6

CUSHION - Call your local BRP dealership

503189323

Unavailable

7

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

$2.91

8

SHAFT - Call your local BRP dealership

503190387

Unavailable

9

Bushing

503189324

$11.17

10

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.91

11

Washer

732900049

$0.57

12

Center Shock (Europe) | (Summit 600 R (Sport)) (Europe) Summit 600.

503189178

Unavailable

13

Grease Fitting

408200700

$2.80

14

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

15

SPRING - Call your local BRP dealership

503189325

Unavailable

16

Spring Stopper

706200881

$10.30

17

Protector

503193663

$35.35

18

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

19

Washer

503189276

$3.20

20

Elastic Locking Nut M10 X 1.5

233601416

$1.68

21

Urethane Bushing

503189117

$6.88

22

Bushing | Includes 240d to 240d1

503189282

$4.18

23

Axle

503151600

$15.35

24

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.68

25

Spacer

503189265

$4.75

26

STOPPER STRAP - Call your local BRP dealership

503190782

Unavailable

27

Hex. Screw M8 X 25

207182544

$0.74

28

Flat Washer

224081301

$0.86

29

Hex. Elastic Stop Nut M8

232581414

$0.47

30

Bushing

503189271

$10.46

31

Washer

503189273

$3.20

32

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

33

SPACER - Call your local BRP dealership

503189274

Unavailable

34

Rocker

503189303

Unavailable

35

Rocker Axle

503189388

Unavailable

36

Cushion

503189410

Unavailable

37

Rear Shock

503191582

$157.66

38

Hex. Flange Screw M8 X 40

207684044

$1.25

39

Hex. Flange Elastic Nut M8

233281414

$1.14

40

Bushing

414936000

$11.55

41

Adjustment Cam

505073625

$12.18
