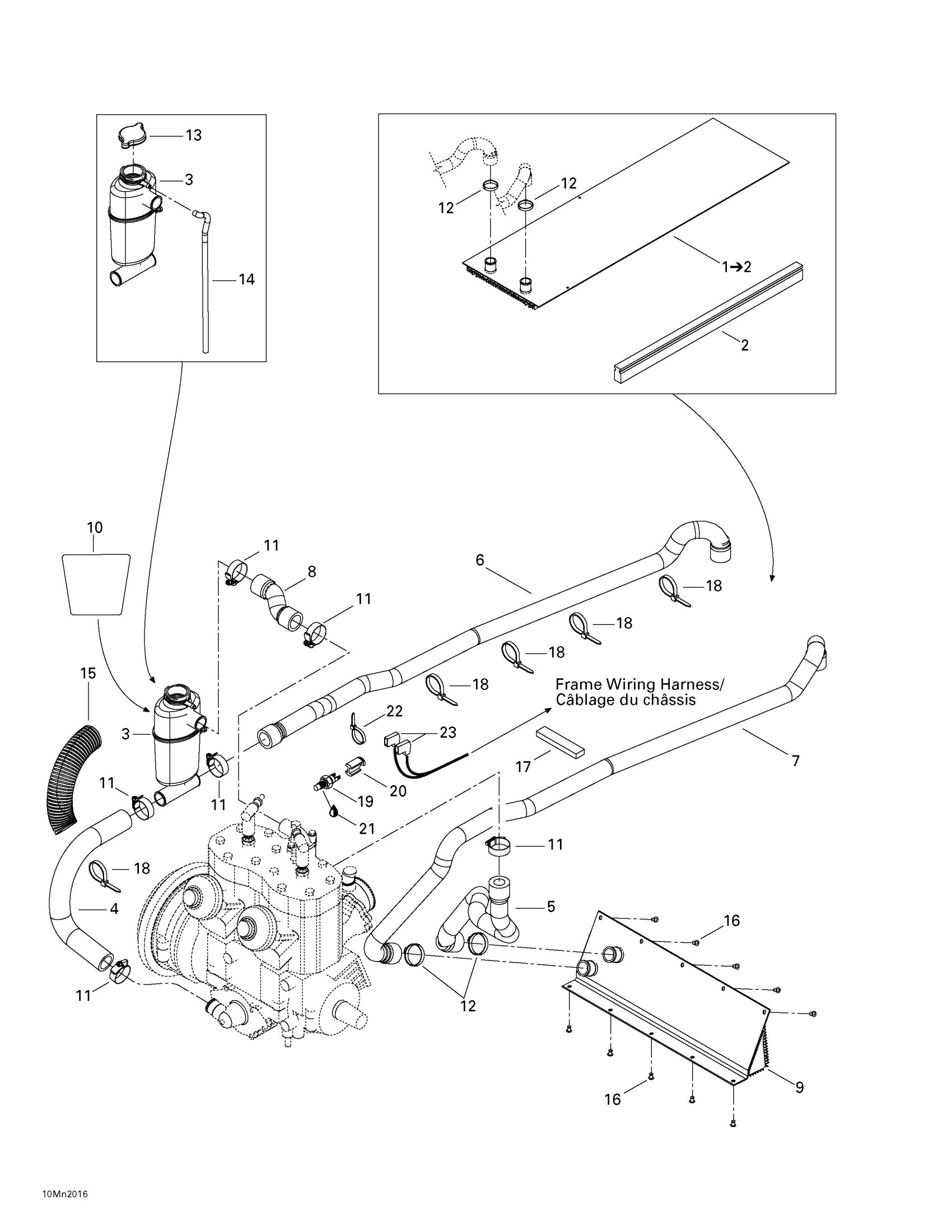

Ski-Doo Formula Z 600/700, 2000 Cooling System Diagram
#
Description
Price
1
Rear Radiator | Includes 29 - 30.
517296300
Unavailable
2
Radiator Protector
518321655
Unavailable
3
Tank Coolant | Grand Touring 500. This part replaces 509000133.
509000134
Unavailable
4
Engine Inlet Hose
509000001
Unavailable
5
ENGINE OUTLET HOSE - Call your local BRP dealership | Grand Touring 500.
509000046
Unavailable
6
RADIATOR INLET HOSE - Call your local BRP dealership | Grand Touring 500.
509000003
Unavailable
7
Radiator Outlet Hose | Grand Touring 500.
509000004
Unavailable
8
Deviation Hose
509000005
Unavailable
9
Front Radiator | Grand Touring 500.
517297100
Unavailable
10
Reflection Sheet
509000068
Unavailable
11
TRIDON GEAR CLAMP - Call your local BRP dealership
408800400
Unavailable
12
Oetiker Gear Clamp 36.1MM
509000045
Unavailable
13
Pressure Cap
509000187
Unavailable
14
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
15
Was 415084700 Protective Shield | Grand Touring 500.
219704413
Unavailable
19
Temperature Sensor | Grand Touring 500.
512047000
Unavailable
20
Connector Plug | Grand Touring 500.
515175297
Unavailable
21
Was 293800018 Loctite 592, 50 ml | Package T
219704455
Unavailable
22
Tie Wrap 142 mm
293750002
Unavailable
