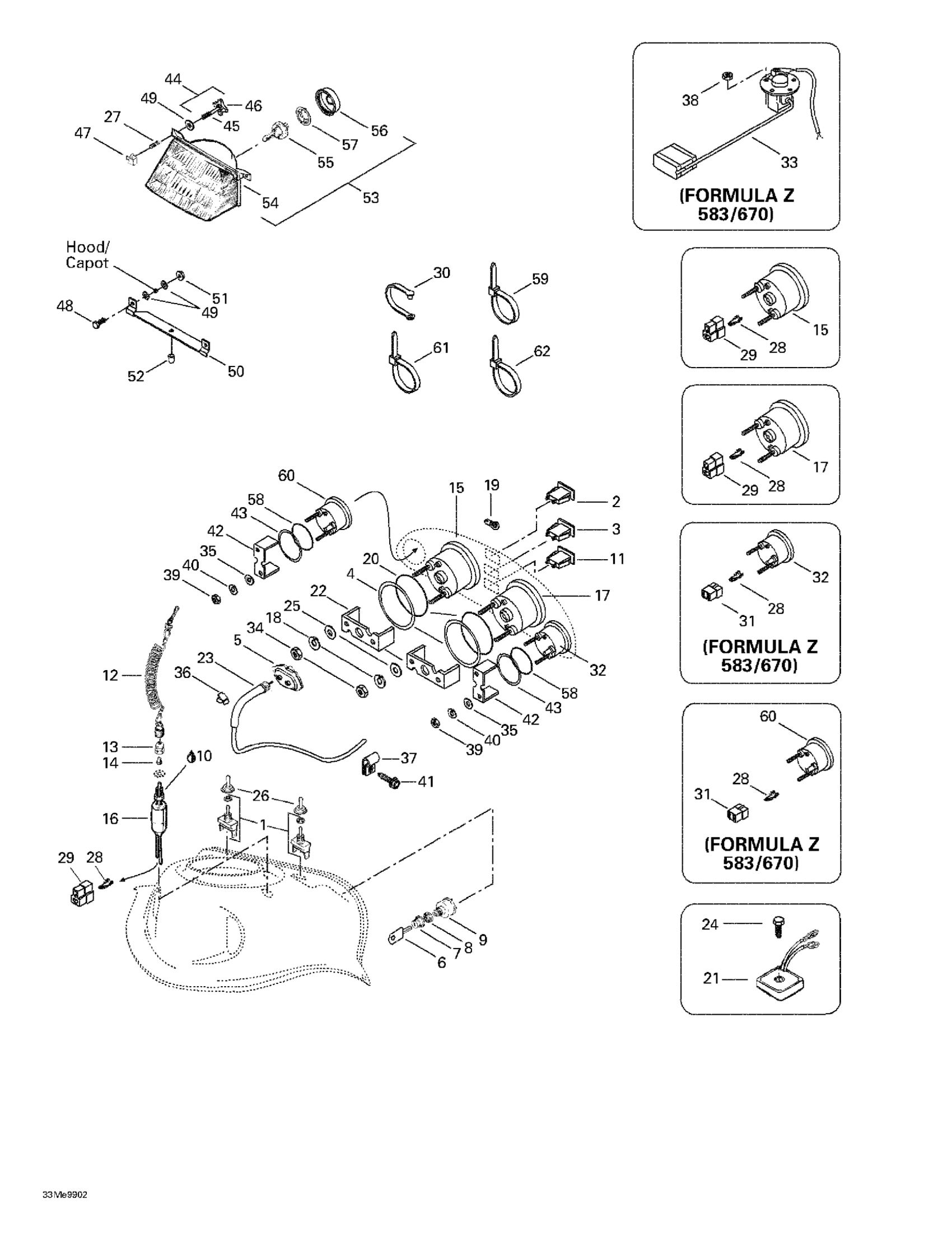

Ski-Doo Formula Z 500/583/670, 1999 Electrical System Diagram

#

Description
Price

1

Switch (Heating Grip) | FREERIDE

410107300

$34.58

2

Pilot Lamp (Red)

410109500

Unavailable

3

Pilot Lamp (Blue)

410109600

Unavailable

4

Washer

517258500

Unavailable

5

Drive Angle | Formula S.

572022300

Unavailable

6

Blank Key

415129350

Unavailable

7

Switch Boot

570013700

Unavailable

8

FACE NUT - Call your local BRP dealership

410112100

$14.29

9

IGNITION SWITCH - Call your local BRP dealership | Formula Deluxe 380 F.

410111300

Unavailable

10

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

11

Pilot Lamp, Engine Temperature | SUV 600

410109700

Unavailable

12

Cap Ass'y

515178283

$37.66

13

Switch Nut

515145900

$10.83

14

Plunger Cap

570151100

$10.14

15

Tachometer

415096500

Unavailable

16

Brake Switch

515175653

$15.57

17

Speedometer (KMH)

415096300

Unavailable

Speedometer (MH)

415096400

Unavailable

18

Lock Washer

414806700

Unavailable

19

INSTRUMENTATION BULB - Call your local BRP dealership

410504200

Unavailable

20

O-Ring

414807100

Unavailable

21

VOLTAGE REGULATOR - Call your local BRP dealership

515163800

Unavailable

22

Case Holder

414806500

Unavailable

23

Speedometer Cable

414761400

Unavailable

24

Hex. Screw M6 x 35

732600016

Unavailable

25

Flat Washer

517225900

$0.17

26

Switch Cover

515175281

$15.03

27

Spring

517168600

Unavailable

28

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

29

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

30

CABLE CLIP - Call your local BRP dealership

414379300

$4.58

31

FEMALE HOUSING - Call your local BRP dealership

409204200

$3.82

32

Temperature Gauge

415097200

Unavailable

33

Fuel Sender Ass'y

415114700

Unavailable

34

Nut

414806900

Unavailable

35

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

36

Clip

414227300

$1.45

37

Open Clamp

414176000

$1.86

38

Elastic Stop Nut M5

232551414

Unavailable

39

NUT - Call your local BRP dealership | SE Models

414833600

Unavailable

40

Lock Washer | SE Models

414833700

Unavailable

41

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

42

Case Holder | SE Models

414806600

Unavailable

43

WASHER - Call your local BRP dealership

517258600

Unavailable

44

Adjuster Screw Ass'y | Includes 44 - 46.

415100700

Unavailable

45

Screw M4 x 40

732603004

Unavailable

46

Handle

572106600

Unavailable

47

Projector Nut

572078600

Unavailable

48

Hex. Screw M5 X 16 | 4X4

207151644

Unavailable

49

FLAT WASHER - Call your local BRP dealership

391302100

Unavailable

50

Headlamp Support

517218500

Unavailable

51

Hex. Flange Elastic Nut M5

233251414

Unavailable

52

RUBBER STOPPER - Call your local BRP dealership

410608200

$5.35

53

Headlamp | Includes 42 to 45

410609100

Unavailable

54

Headlamp | Includes 53 to 56

410609300

Unavailable

55

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

Unavailable

56

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

57

BULB HOLDER - Call your local BRP dealership

410608300

$9.97

58

O-RING - Call your local BRP dealership

414807200

Unavailable

59

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

$0.91

60

Fuel Gauge

415097300

Unavailable

61

Tie Wrap 368 mm

293750008

$0.85

62

Tie-Rap 180 mm

414115200

$0.09
