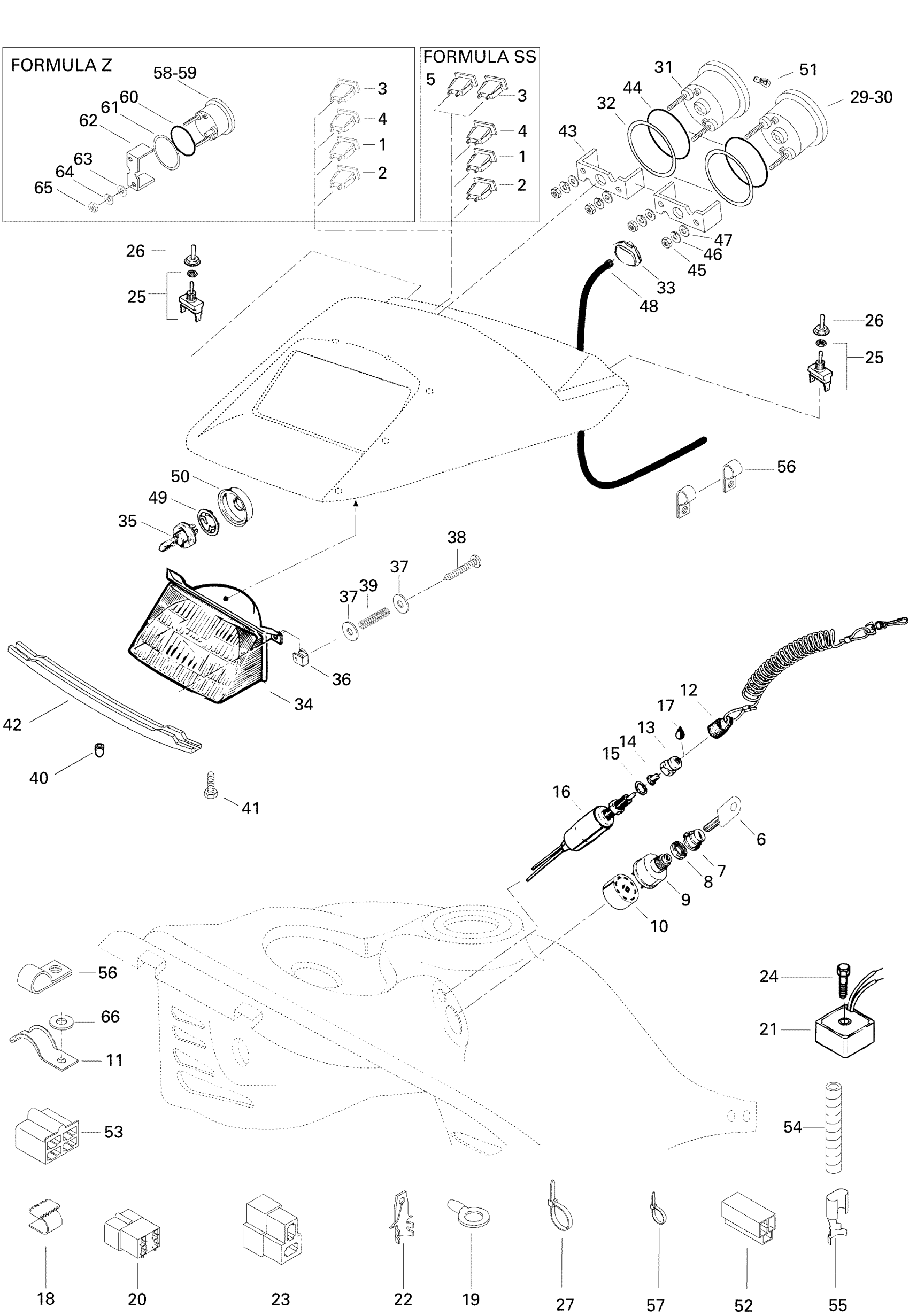

Ski-Doo Formula Z, 1996 Electrical System Formula Z Diagram

#

Description
Price

1

Pilot Lamp (Heated Handle)

410109300

Unavailable

2

Pilot Lamp (Heated Thumb)

410109400

Unavailable

3

Pilot Lamp (Red)

410109500

Unavailable

4

Pilot Lamp (Blue)

410109600

Unavailable

5

Not Available As Spare Parts

XXX

Unavailable

6

Blank Key

415129350

Unavailable

7

Switch Boot

570013700

Unavailable

8

FACE NUT - Call your local BRP dealership

410112100

$14.29

9

IGNITION SWITCH - Call your local BRP dealership

410108600

Unavailable

10

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

11

Bracket

517274400

Unavailable

12

Cap Ass'y

515178283

$37.66

13

Switch Nut

515145900

$10.83

14

Plunger Cap

570151100

$10.14

15

Washer

391302500

Unavailable

16

Brake Switch

515175653

$15.57

17

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

18

CLIP - Call your local BRP dealership | Europe Models

409205600

$3.05

19

OPEN BARREL - Call your local BRP dealership

409003200

Unavailable

20

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

21

VOLTAGE REGULATOR - Call your local BRP dealership

410110600

Unavailable

22

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

23

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

24

Hex. Screw M6 x 35

732600016

Unavailable

25

Switch (Heating Grip) | FREERIDE

410107300

$34.58

26

Switch Cover

515175281

$15.03

27

Tie-Rap 180 mm

414115200

$0.09

28

Resistance

515175241

Unavailable

29

Speedometer (KMH) | Formula 500. Formula 500 Deluxe. Formula 583.

414806200

Unavailable

30

Speedometer (MH) | Formula 500. Formula 500 Deluxe. Formula 583.

414806100

Unavailable

31

Tachometer | Formula 500. Formula 500 Deluxe. Formula 583.

414807400

Unavailable

32

Washer

517258500

Unavailable

33

Drive Angle | Formula S.

572022300

Unavailable

34

HEADLAMP ASS'Y - Call your local BRP dealership | Includes 1 - 1E.

410608800

Unavailable

34

Headlamp

410608900

Unavailable

35

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

Unavailable

36

Projector Nut

572018300

Unavailable

37

Flat Washer

517225900

$0.17

38

Screw M4 x 40

732603002

Unavailable

39

SPRING - Call your local BRP dealership

517166000

Unavailable

40

RUBBER STOPPER - Call your local BRP dealership

410608200

$5.35

41

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

42

Headlamp Support

517249300

Unavailable

43

Case Holder

414806500

Unavailable

44

O-Ring

414807100

Unavailable

45

Nut

414806900

Unavailable

46

Lock Washer

414806700

Unavailable

47

Flat Washer

517225900

$0.17

48

Speedometer Cable

414761400

Unavailable

49

BULB HOLDER - Call your local BRP dealership

410608300

$9.97

50

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

51

INSTRUMENTATION BULB - Call your local BRP dealership

410504200

Unavailable

52

Female Housing

409204300

Unavailable

53

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

54

Tubing Helical | Formula 500. Formula 500 Deluxe.

410904000

Unavailable

54

Was 409901800 Tubing (13 mm)

219704400

Unavailable

55

Female Terminal PACKARD

561503200

Unavailable

55

Female Terminal

561503100

Unavailable

56

Open Clamp

414176000

$1.86

57

Tie Wrap 94 mm | 4X4

293750001

$0.83

58

Temperature Gauge

415016400

Unavailable

59

Fuel Gauge

414806300

Unavailable

60

O-RING - Call your local BRP dealership

414807200

Unavailable

61

WASHER - Call your local BRP dealership

517258600

Unavailable

62

Case Holder | SE Models

414806600

Unavailable

63

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

64

Lock Washer | SE Models

414833700

Unavailable

65

NUT - Call your local BRP dealership | SE Models

414833600

Unavailable

66

Washer

517124300

Unavailable
