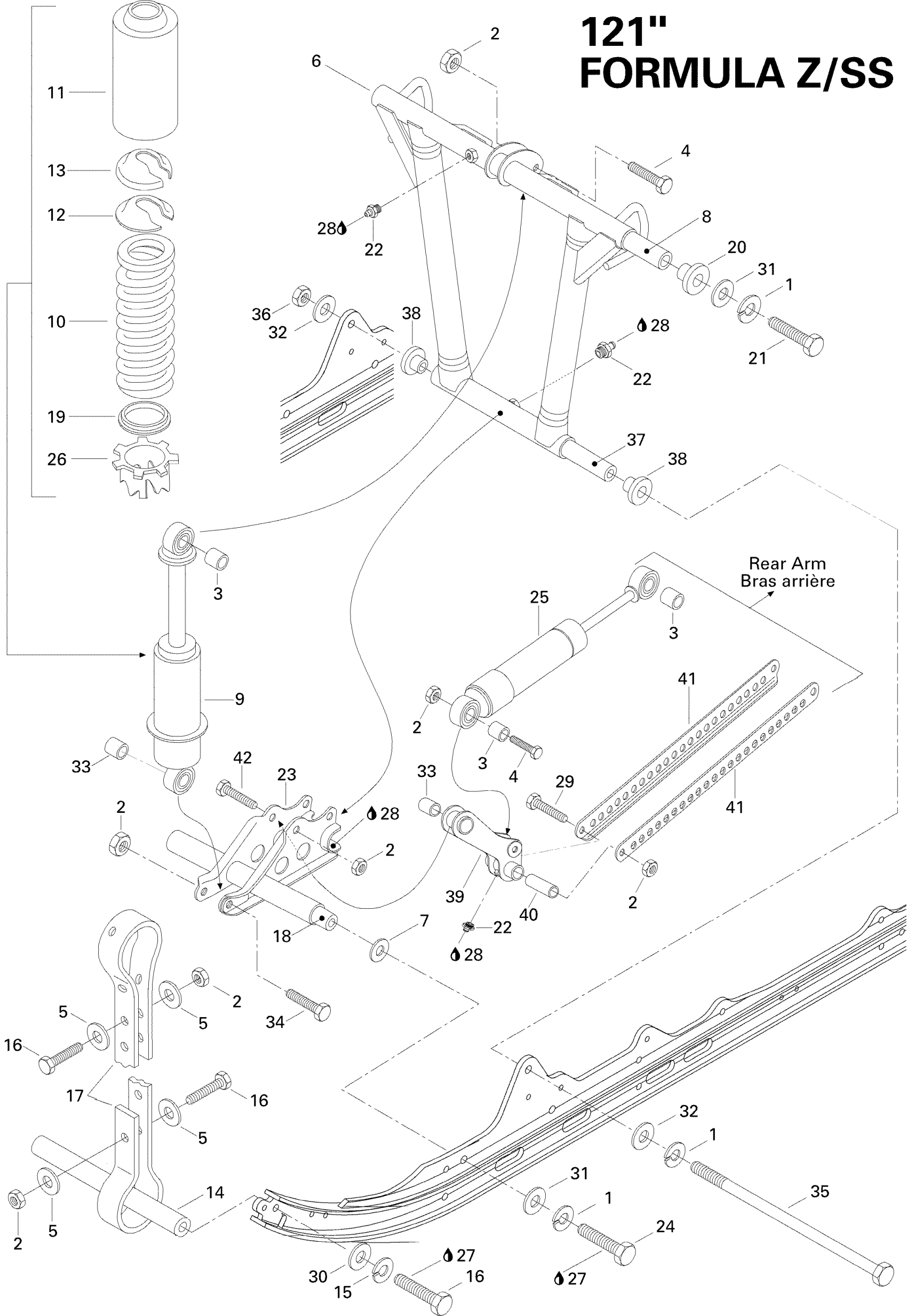

Ski-Doo Formula Z, 1996 Front Arm Formula Z Diagram
#
1
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.
234100602
Unavailable
2
Hex. Elastic Stop Nut M8
232581414
Unavailable
3
Bushing
414936000
Unavailable
4
Hex. Screw M8 X 40
207084044
Unavailable
5
WASHER - Call your local BRP dealership
517078700
Unavailable
6
Welded Front Arm
503167300
Unavailable
7
Hard Washer | Formula DLX 500 LC.
503007900
Unavailable
8
SHAFT - Call your local BRP dealership
503190387
Unavailable
9
Shock
414974000
Unavailable
10
Center Spring
415012900
Unavailable
11
Protector
503193663
Unavailable
12
Cap
706200785
Unavailable
15
Lock Washer 8 mm
234181401
Unavailable
16
Hex. Screw M8 X 30
207183044
Unavailable
17
Stopper Strap | Formula Z 583. Formula 583 Deluxe.
570038800
Unavailable
18
Axle Wheel | Formula 500. Formula 500 Deluxe.
503152800
Unavailable
21
HEX. SCREW M10 X 60 - Call your local BRP dealership
207006044
Unavailable
22
Grease Fitting
408200700
Unavailable
23
Welded Shock Support | Formula Z.
503158300
Unavailable
24
Hex. Screw M10 X 35
207103544
Unavailable
25
Shock (Canada, U.S.A. Only) | MX Z 500.
414894700
Unavailable
26
Cam
503169000
Unavailable
27
Loctite 271, 10 ml
293800005
Unavailable
28
LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.
413706100
Unavailable
29
HEX. SCREW M8 X 75 - Call your local BRP dealership
207087544
Unavailable
30
Flat Washer 8 mm
234081410
Unavailable
31
Flat Washer 10 mm
234001410
Unavailable
33
Cushion
414917900
Unavailable
35
Bolt M12 | Formula Z.
503140800
Unavailable
36
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership
232521414
Unavailable
37
Lower Axle (Front Arm) | Formula Z.
503158900
Unavailable
38
Cushion | Formula Z 583. Formula 583 Deluxe.
415026300
Unavailable
39
Lever
503158500
Unavailable
40
Tie Rod Shaft
503158600
Unavailable
41
Tie Rod | Formula Z 583. Formula 583 Deluxe.
503158700
Unavailable
42
Hex. Screw M8 X 50
207085044
Unavailable
