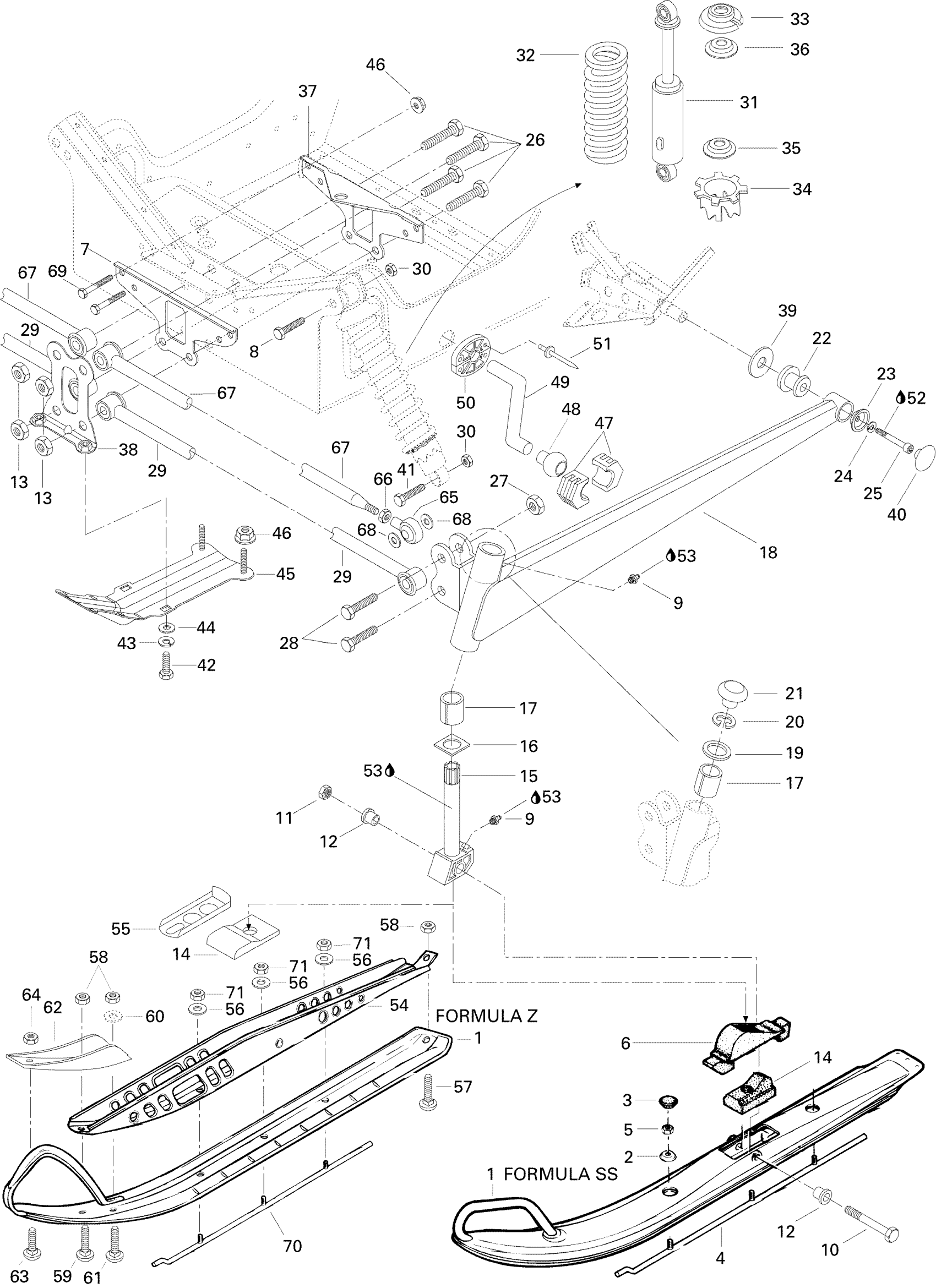

Ski-Doo Formula Z, 1996 Front Suspension And Ski Formula Z Diagram
#
1
Plastic Ski
572047400
Unavailable
2
Not Available As Spare Parts
XXX
Unavailable
3
Not Available As Spare Parts
XXX
Unavailable
4
Not Available As Spare Parts
XXX
Unavailable
5
Not Available As Spare Parts
XXX
Unavailable
6
Not Available As Spare Parts
XXX
Unavailable
7
Front Link Plate
517254800
Unavailable
8
HEX. SCREW M10 X 60 - Call your local BRP dealership
207006044
Unavailable
9
Grease Fitting
408200700
Unavailable
10
Hex. Screw M12
732601176
Unavailable
11
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership
232521414
Unavailable
12
CUSHION - Call your local BRP dealership
414530600
Unavailable
13
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership
232521414
Unavailable
14
Ski Stopper | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.
570046800
Unavailable
15
Ski Leg
506130900
Unavailable
16
Wear Plate
506081200
Unavailable
17
Cushion
572069900
Unavailable
18
LH Swing Arm
506131710
Unavailable
18
RH Swing Arm
506131610
Unavailable
19
Thrust Washer
506080900
Unavailable
20
CIRCLIP - Call your local BRP dealership
371910400
Unavailable
21
CAP - Call your local BRP dealership
572079100
Unavailable
22
DAMPER - Call your local BRP dealership
570062200
Unavailable
23
Cup | Package Hunter
705007171
Unavailable
24
Lock Washer 8 mm
234181401
Unavailable
25
Socket Head Screw M8 X 25
205082544
Unavailable
26
Hex. Screw M12 x 90
222029065
Unavailable
27
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership
232521414
Unavailable
28
Hex. Screw M12 x 50
222025075
Unavailable
29
Arm Ass'y | Formula SL.
580643800
Unavailable
31
Front Shock
414973900
Unavailable
32
Spring (Red)
414976100
Unavailable
34
Cam
503169000
Unavailable
36
Cap
706200785
Unavailable
37
Rear Link Plate
517254900
Unavailable
38
Link Plate
506122900
Unavailable
40
CAP - Call your local BRP dealership
572045900
Unavailable
43
Lock Washer 8 mm
234181401
Unavailable
44
Flat Washer 8 mm
234081410
Unavailable
45
Link Plate
506123000
Unavailable
46
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
47
Block Sliding
572069800
Unavailable
48
Ball Joint
503142200
Unavailable
49
Stabilisator
506131800
Unavailable
50
Half-Bushing
572029900
Unavailable
51
Pop Rivet 3/16"
390402300
Unavailable
53
LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.
413706100
Unavailable
54
Ski Support
505062400
Unavailable
55
Stopper
505065900
Unavailable
56
FLAT WASHER - Call your local BRP dealership
224002251
Unavailable
58
Hex. Flange Elastic Nut M8
233281414
Unavailable
59
Carriage Bolt M8 X 30
207783044
Unavailable
60
Not Available As Spare Part - Friction Washer
Unavailable
61
Carriage Bolt M8 x 40 | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.
222284065
Unavailable
62
Ski Reinforcement | Formula Z.
505063700
Unavailable
63
Carriage Bolt M6 X 25
207762544
Unavailable
64
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
65
RH BJoint
414976400
Unavailable
66
Hex. Jam Nut M14
232170411
Unavailable
67
Arm Ass’y
580638900
Unavailable
69
Hex. Screw M6 X 55
207065544
Unavailable
70
Carbide Runner
505063620
Unavailable
70
Kit with 2 Runners (8 Carbide) | Includes 70 to 71
505067020
Unavailable
