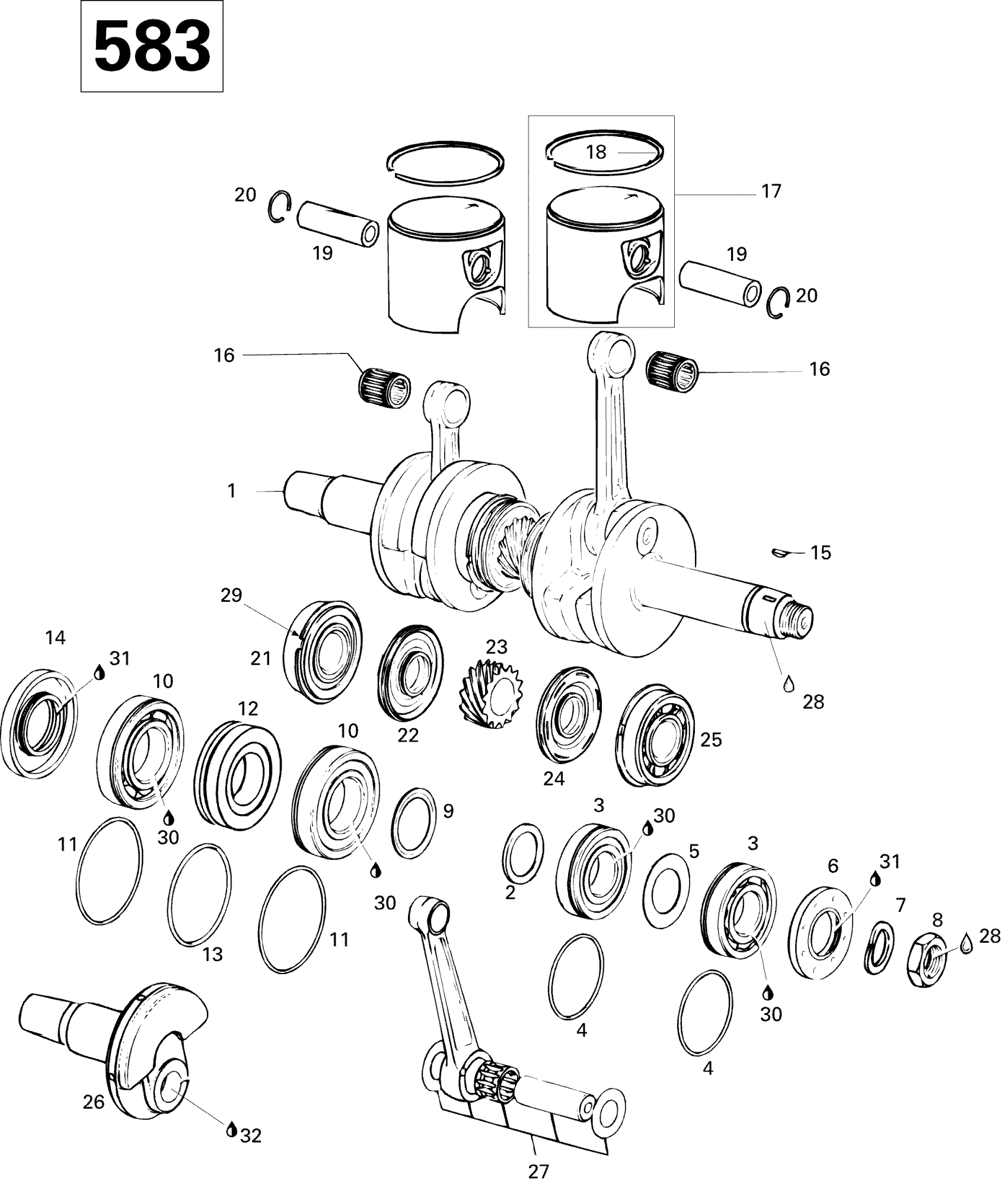

Ski-Doo Formula Z, 1996 Crankshaft And Pistons 583 Diagram

#

Description
Price

1

Crankshaft

420887352

Unavailable

2

SPACER RING - Call your local BRP dealership This part replaces 420827440.

420827441

Unavailable

3

Bearing_Ball | Formula Deluxe 583. This part replaces 420832480.

420832481

Unavailable

4

O-Ring | Formula Deluxe 583.

420830355

Unavailable

5

Stop Shim (30.4/1) | Formula Deluxe 583.

420827715

Unavailable

6

Oil Seal This part replaces 290830749.

420830749

Unavailable

7

Lock Washer, 22 mm

420945759

Unavailable

8

Hex. Nut, M22 X 1.5

420842239

Unavailable

9

DISTANCE RING - Call your local BRP dealership

420827760

Unavailable

10

Bearing_Ball This part replaces 290832231.

420832584

Unavailable

11

O-Ring, 64 mm X 2 mm

293300022

Unavailable

12

Labyrinth Bushing | Formula Deluxe 583.

420830292

Unavailable

13

O-RING - Call your local BRP dealership

420830370

Unavailable

14

Oil Seal This part replaces 290831952.

420831952

Unavailable

15

Woodruff Key

420246055

Unavailable

16

Needle Bearing

420932904

Unavailable

17

Piston Ass‘y (76.0 mm) | Includes 17 to 18

420995835

Unavailable

17

Piston Ass‘y (76.25 mm) | Includes 17 to 18

420995836

$137.66

18

Semi-Trapez Ring 76.0 mm | Formula Z 583. Formula 583 Deluxe.

420815010

Unavailable

18

Semi-Trapez Ring 76.25 mm | Formula Z 583. Formula 583 Deluxe.

420915821

Unavailable

19

PISTON PIN - Call your local BRP dealership

420916136

Unavailable

20

Piston Circlip

420945735

Unavailable

21

Bearing_Ball | Formula Deluxe 583. This part replaces 420832480.

420832481

Unavailable

22

Oil Seal

420831990

Unavailable

23

Central Gear (14 Teeth) | Formula Deluxe 583.

420935746

Unavailable

24

Oil Seal | Formula Deluxe 583.

420831355

Unavailable

25

Ball Bearing 6305 | Formula Z 583. Formula 583 Deluxe.

420832090

Unavailable

26

Crankshaft Repair Kit (P.T.O. Side) | Formula Deluxe 583.

420818030

Unavailable

27

Crankshaft Rod Repair Kit | Formula Deluxe 583.

420996626

Unavailable

28

Loctite 243, 10 ml

293800060

$20.77

29

Ring-Groove | Formula Z 583. Formula 583 Deluxe.

420845070

Unavailable

30

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

31

Dow Corning 111, 150 g

413707000

$57.82

32

Sealant Loctite 648

219703000

Unavailable
