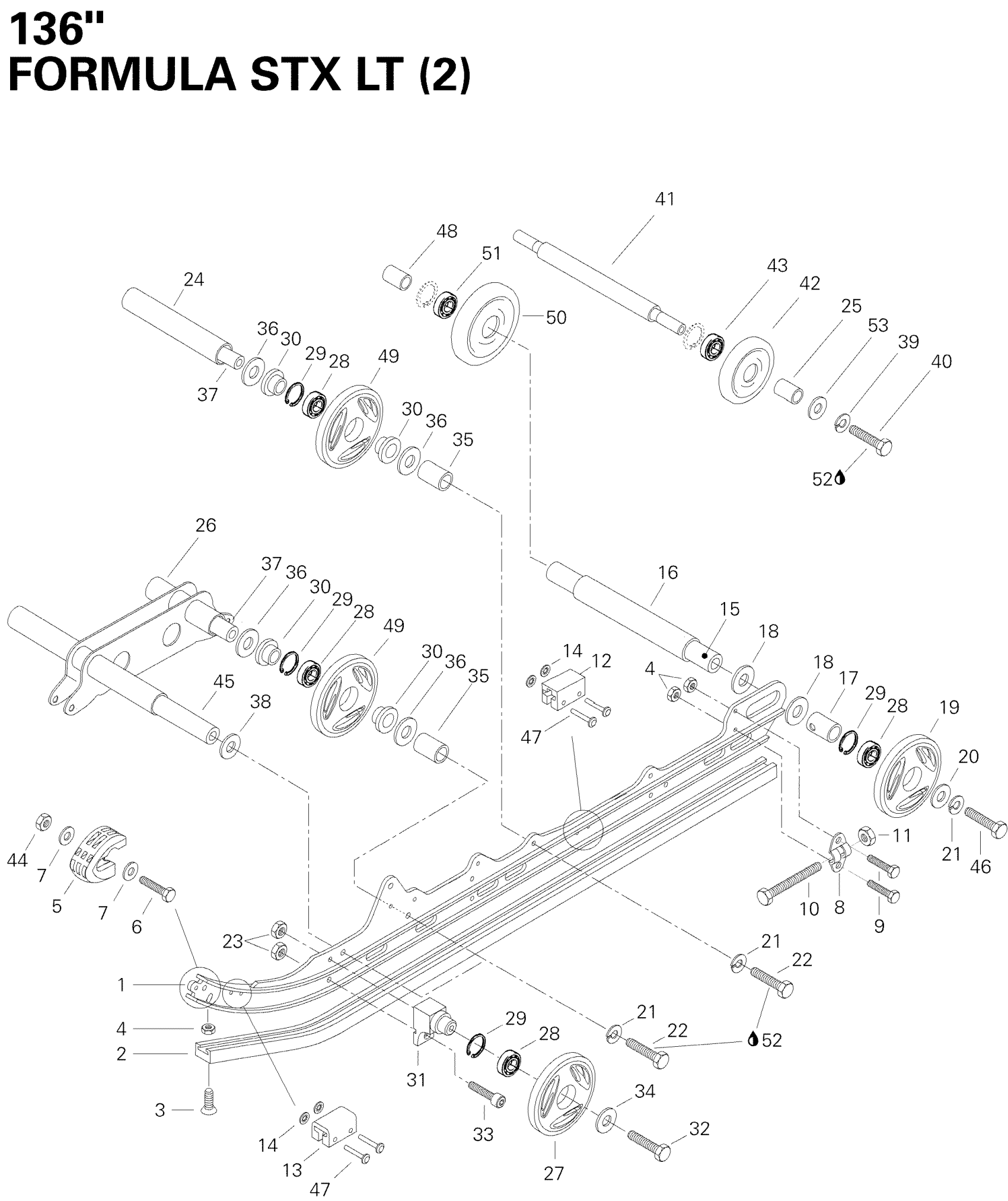

Ski-Doo Formula STX LT(2), 1996 Rear Suspension STX LT Diagram

#

Description
Price

1

Runner (136”)

503166700

Unavailable

2

Slide Shoe

605355362

Unavailable

3

Phillips Screw M6 X 25

208562560

Unavailable

4

Elastic Stop Nut M6

232561414

Unavailable

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

SCREW-HEX.CAP DIN.933 - Call your local BRP dealership

222052565

Unavailable

7

Washer | DS 650 X

391301600

Unavailable

8

Tensioner

503155300

Unavailable

9

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

10

Hex. Screw M10 x 110 | Formula Deluxe 670.

732601017

Unavailable

11

Elastic Locking Nut M10 X 1.5

233601416

$1.68

12

Rubber Stopper

570036700

Unavailable

13

FRONT RUBBER STOPPER - Call your local BRP dealership

570047900

Unavailable

14

Push Nut

389804300

$0.43

15

Rear Axle

503167900

$129.20

16

Interior Spacer Long | Formula 500. Formula 500 Deluxe.

503139500

Unavailable

17

Outer Spacer

503189809

$15.35

18

SHIM - Call your local BRP dealership

504108200

Unavailable

19

Wheel 165 (Red) | Formula 500. Formula 500 Deluxe. Formula 583.

570045323

Unavailable

20

Washer

503183300

$5.68

21

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

22

Hex. Screw M10 X 35

207103544

Unavailable

23

Hex. Elastic Stop Nut M8

232581414

Unavailable

24

Spacer

503153100

Unavailable

25

Spacer

572048300

Unavailable

26

Welded Shock Support

503152100

Unavailable

27

Idler Wheel 135 (Red) | Formula 500. Formula 500 Deluxe. Formula 583.

570045223

Unavailable

28

Ball Bearing

293350115

Unavailable

29

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

30

Cushion

503189534

Unavailable

31

Support | Formula 500. Formula 500 Deluxe. Formula 583.

503163600

Unavailable

32

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

33

Socket Head Screw M8 X 25

205082544

Unavailable

34

WASHER - Call your local BRP dealership

517078700

Unavailable

35

Spacer | Formula 500. Formula 500 Deluxe.

503151000

Unavailable

36

WASHER - Call your local BRP dealership

503154000

$4.20

37

Axle Wheel | Formula 500. Formula 500 Deluxe.

503152800

Unavailable

38

Hard Washer | Formula DLX 500 LC.

503007900

Unavailable

39

Lock Washer 8 mm

234181401

Unavailable

40

Hex. Screw M8 X 30

207183044

Unavailable

41

Wheel Support Axle

503153600

Unavailable

42

Idler Wheel | Includes 48 - 49.

572043500

Unavailable

43

Ball Bearing

405404600

$24.58

44

Elastic Stop Nut M5

232551414

Unavailable

45

Axle Wheel | Formula 500. Formula 500 Deluxe.

503152800

Unavailable

46

Hex. Screw With Nylon

250000019

Unavailable

47

Rivet 3/16 x 1-3/8 | Formula 500. Formula 500 Deluxe. Formula 583.

390908700

Unavailable

48

Interior Spacer Short | Formula 500. Formula 500 Deluxe.

503139600

Unavailable

49

Wheel 135 | Includes 18 to 19

503190797

Unavailable

50

Wheel 165" | Includes 670 to 670b

503194127

$49.97

51

Ball Bearing

293350115

Unavailable

52

Loctite 271, 10 ml

293800005

Unavailable

53

Flat Washer 8 mm

234081410

Unavailable
