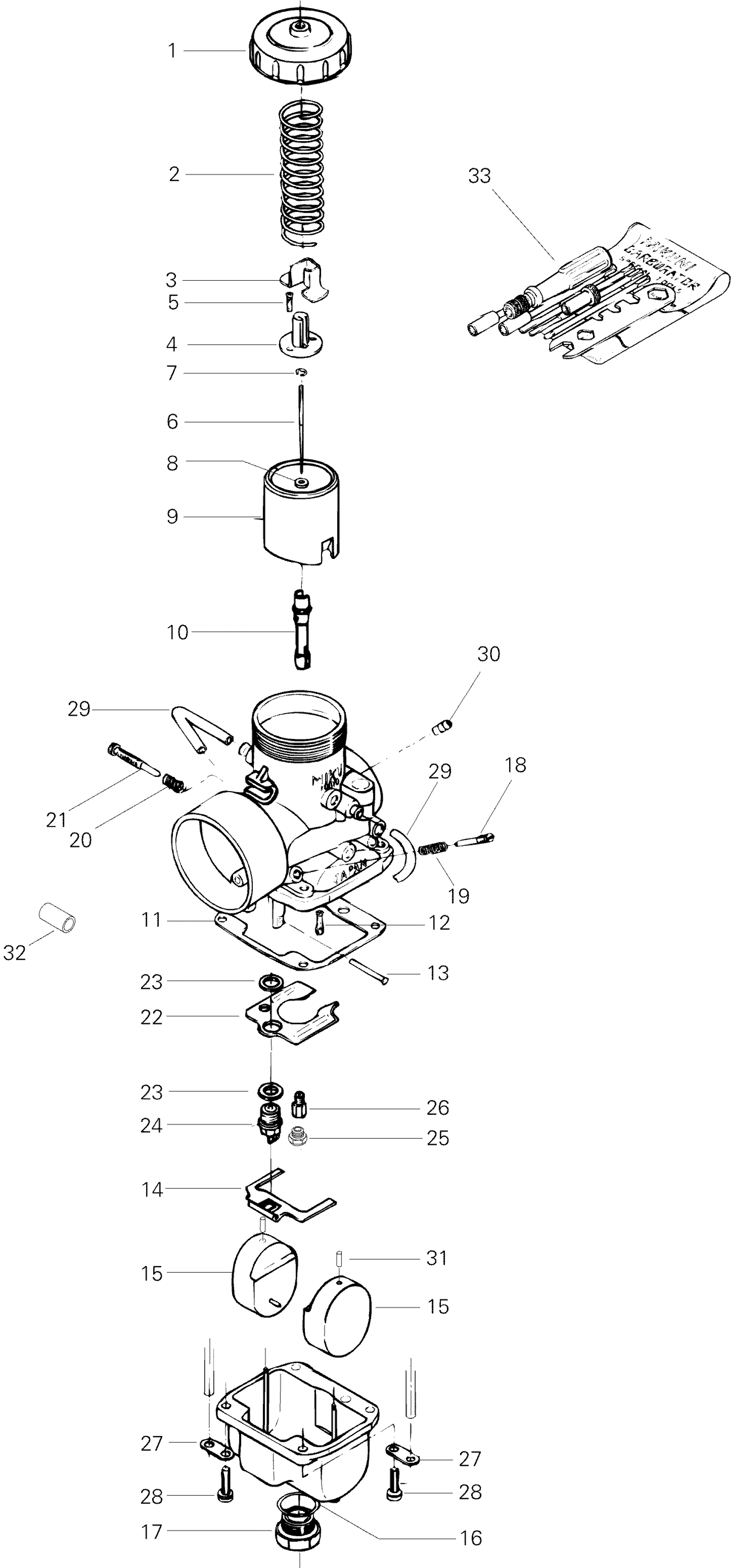

Ski-Doo Formula STX LT(2), 1996 Carburetor Diagram

#

Description
Price

1

VM 38-325 Carburetor (PTO) | Includes 1 to 32

403126700

Unavailable

1

VM 38-326 Carburetor (MAG) | Includes 1 to 32

403126800

Unavailable

1

COVER - Call your local BRP dealership

404105100

Unavailable

2

Spring

404154800

$24.60

3

Cover

404122100

$17.88

4

CONNECTOR - Call your local BRP dealership

404160800

Unavailable

5

Screw With Washer

404121300

$4.24

6

Jet Needle 6DHN44

404149200

Unavailable

7

E-Ring

404152400

$6.36

8

Packing

404117000

$3.31

9

Piston Valve CA 2.5

404131300

Unavailable

10

Needle Jet NJ-480-P0

404133200

Unavailable

11

GASKET - Call your local BRP dealership

404104700

Unavailable

12

PILOT JET PJ40 - Call your local BRP dealership

404109100

Unavailable

13

Lever Pin

404103300

$6.36

14

FLOAT LEVER - Call your local BRP dealership

404105000

Unavailable

15

FLOAT - Call your local BRP dealership

404105400

Unavailable

16

O-RING - Call your local BRP dealership

404101500

Unavailable

17

DRAIN PLUG SCREW - Call your local BRP dealership

404105600

Unavailable

18

Air Screw

404102300

$14.46

19

Spring

404101800

$4.36

20

Spring

404101700

$4.24

21

IDLE SPEED SCREW - Call your local BRP dealership

404102800

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Seat Washer

404101600

$3.21

24

Needle Valve 1.5

404147400

$43.25

25

Guide Screw

404105500

$32.06

26

Main Jet MJ 320 (PTO) | Grand Touring 500.

404101300

$7.90

26

Main Jet 330

404101400

$7.90

27

PLATE - Call your local BRP dealership

404103000

Unavailable

28

Screw With Lock Washer

404102000

$3.19

29

Hose | Grand Touring SE.

404109800

Unavailable

30

Nipple

404153400

$11.16

31

Cap

404105800

$6.49

32

Cap | Formula III 700 R.

404152500

Unavailable

33

TOOL KIT - Call your local BRP dealership

404112000

Unavailable

34

High Altitude Kit, (Not Shown)

861750500

Unavailable
