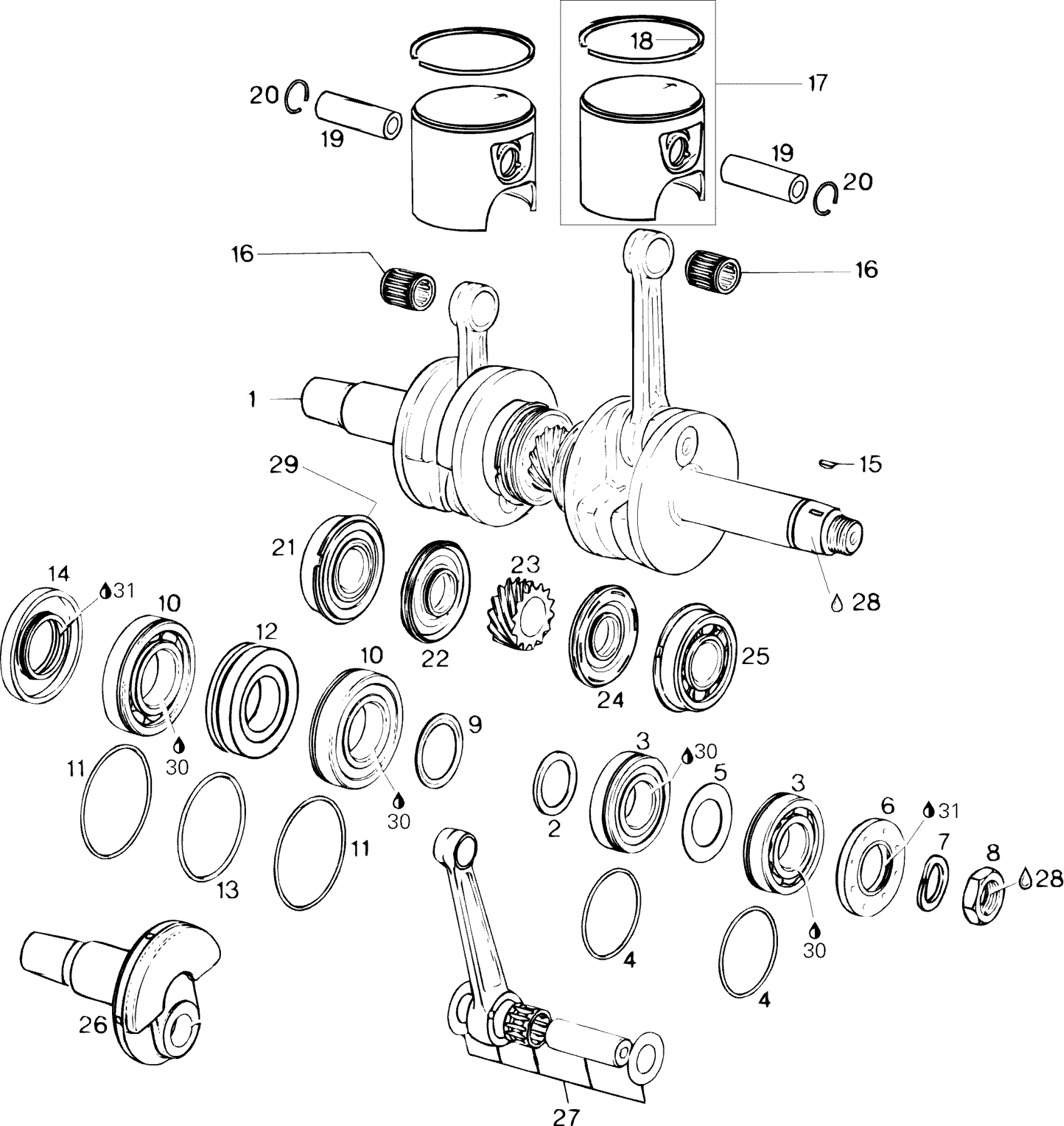

Ski-Doo Formula STX LT(2), 1996 Crankshaft And Pistons Diagram
#
Description
Price
1
Crankshaft
420887352
Unavailable
2
SPACER RING - Call your local BRP dealership This part replaces 420827440.
420827441
Unavailable
3
Bearing_Ball | Formula Deluxe 583. This part replaces 420832480.
420832481
Unavailable
4
O-Ring | Formula Deluxe 583.
420830355
Unavailable
5
Stop Shim (30.4/1) | Formula Deluxe 583.
420827715
Unavailable
6
Oil Seal This part replaces 290830749.
420830749
Unavailable
7
Lock Washer, 22 mm
420945759
Unavailable
8
Hex. Nut, M22 X 1.5
420842239
Unavailable
9
DISTANCE RING - Call your local BRP dealership
420827760
Unavailable
10
Bearing_Ball This part replaces 290832231.
420832584
Unavailable
11
O-Ring, 64 mm X 2 mm
293300022
Unavailable
12
Labyrinth Bushing | Formula Deluxe 583.
420830292
Unavailable
13
O-RING - Call your local BRP dealership
420830370
Unavailable
14
Oil Seal This part replaces 290831952.
420831952
Unavailable
15
Woodruff Key
420246055
Unavailable
16
Needle Bearing
420932904
Unavailable
17
Piston Ass‘y (76.0 mm) | Includes 17 to 18
420995835
Unavailable
18
Semi-Trapez Ring 76.0 mm | Formula Z 583. Formula 583 Deluxe.
420815010
Unavailable
18
Semi-Trapez Ring 76.25 mm | Formula Z 583. Formula 583 Deluxe.
420915821
Unavailable
19
PISTON PIN - Call your local BRP dealership
420916136
Unavailable
20
Piston Circlip
420945735
Unavailable
21
Bearing_Ball | Formula Deluxe 583. This part replaces 420832480.
420832481
Unavailable
22
Oil Seal
420831990
Unavailable
23
Central Gear (14 Teeth) | Formula Deluxe 583.
420935746
Unavailable
24
Oil Seal | Formula Deluxe 583.
420831355
Unavailable
25
Ball Bearing 6305 | Formula Z 583. Formula 583 Deluxe.
420832090
Unavailable
26
Crankshaft Repair Kit (P.T.O. Side) | Formula Deluxe 583.
420818030
Unavailable
27
Crankshaft Rod Repair Kit | Formula Deluxe 583.
420996626
Unavailable
29
Ring-Groove | Formula Z 583. Formula 583 Deluxe.
420845070
Unavailable
30
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
