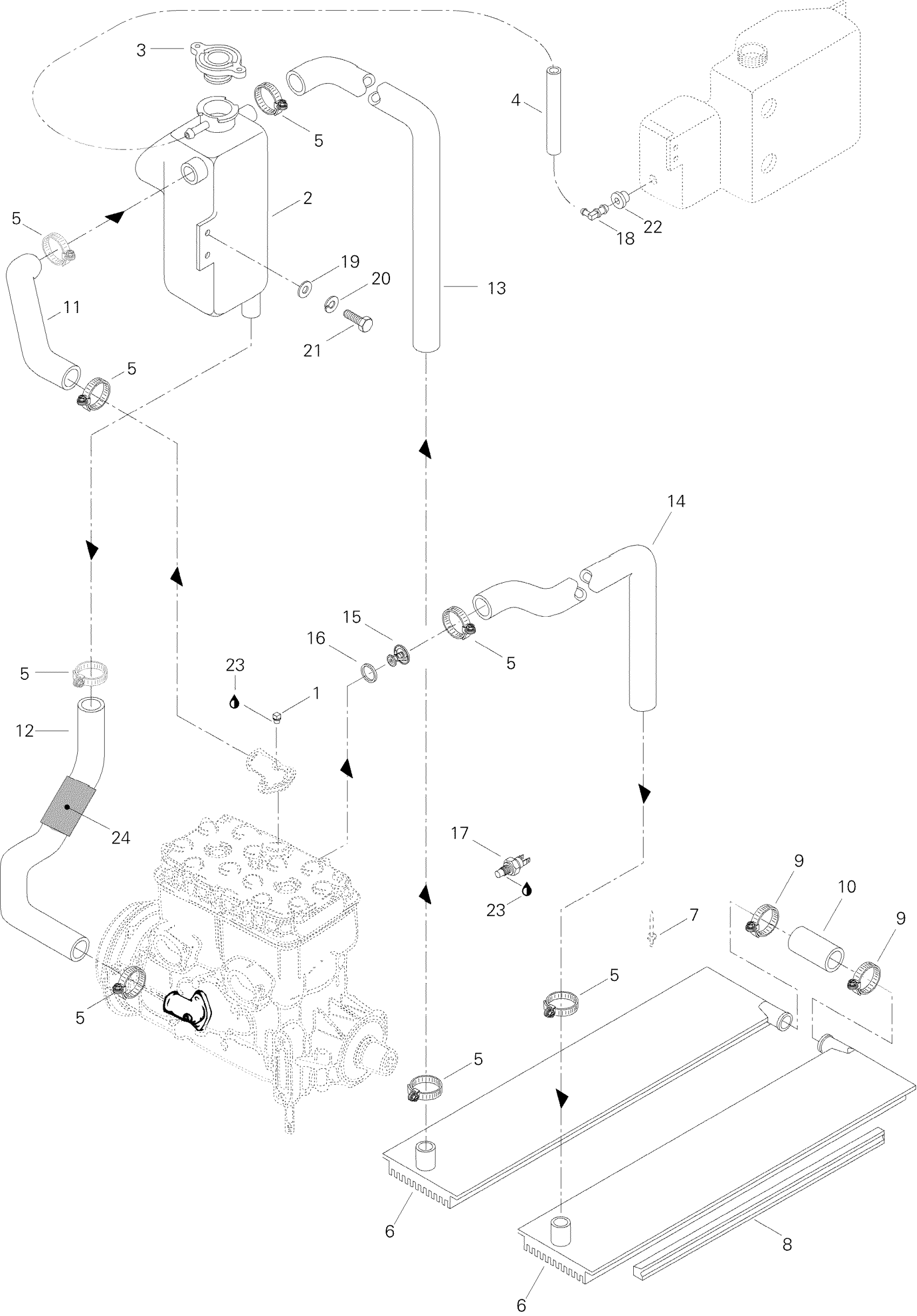

Ski-Doo Formula STX LT(2), 1996 Cooling System STX LT Diagram
#
Description
Price
1
Plug
414184400
Unavailable
2
Coolant Tank
572055200
Unavailable
3
Pressure Cap
509000187
Unavailable
4
Polyurethane Hose 10000Mm Long
219704410
Unavailable
5
TRIDON GEAR CLAMP - Call your local BRP dealership
408800400
Unavailable
6
RH Radiator
517280600
Unavailable
6
LH Radiator
517280601
Unavailable
7
Not Available As Spare Part - Friction Washer
Unavailable
8
Radiator Protector | Formula 500. Formula 500 Deluxe.
517258800
Unavailable
9
Clamp Tridon
408803400
Unavailable
10
Radiator Hose
414795800
Unavailable
11
Engine Outlet Hose
414931200
Unavailable
12
Engine Inlet Hose
414795300
Unavailable
13
Radiator Outlet Hose
414795400
Unavailable
14
Radiator Inlet Hose
414859700
Unavailable
15
Thermostat This part replaces 414834100.
420922519
Unavailable
16
SEALING RING - Call your local BRP dealership
420931270
Unavailable
17
Temperature Sensor | Grand Touring 500.
512047000
Unavailable
19
Flat Washer 6 mm
234061410
Unavailable
21
Hex. Screw M6 X 16
207161644
Unavailable
23
Was 293800018 Loctite 592, 50 ml | Package T
219704455
Unavailable
24
TUBING - Call your local BRP dealership
414991800
Unavailable
