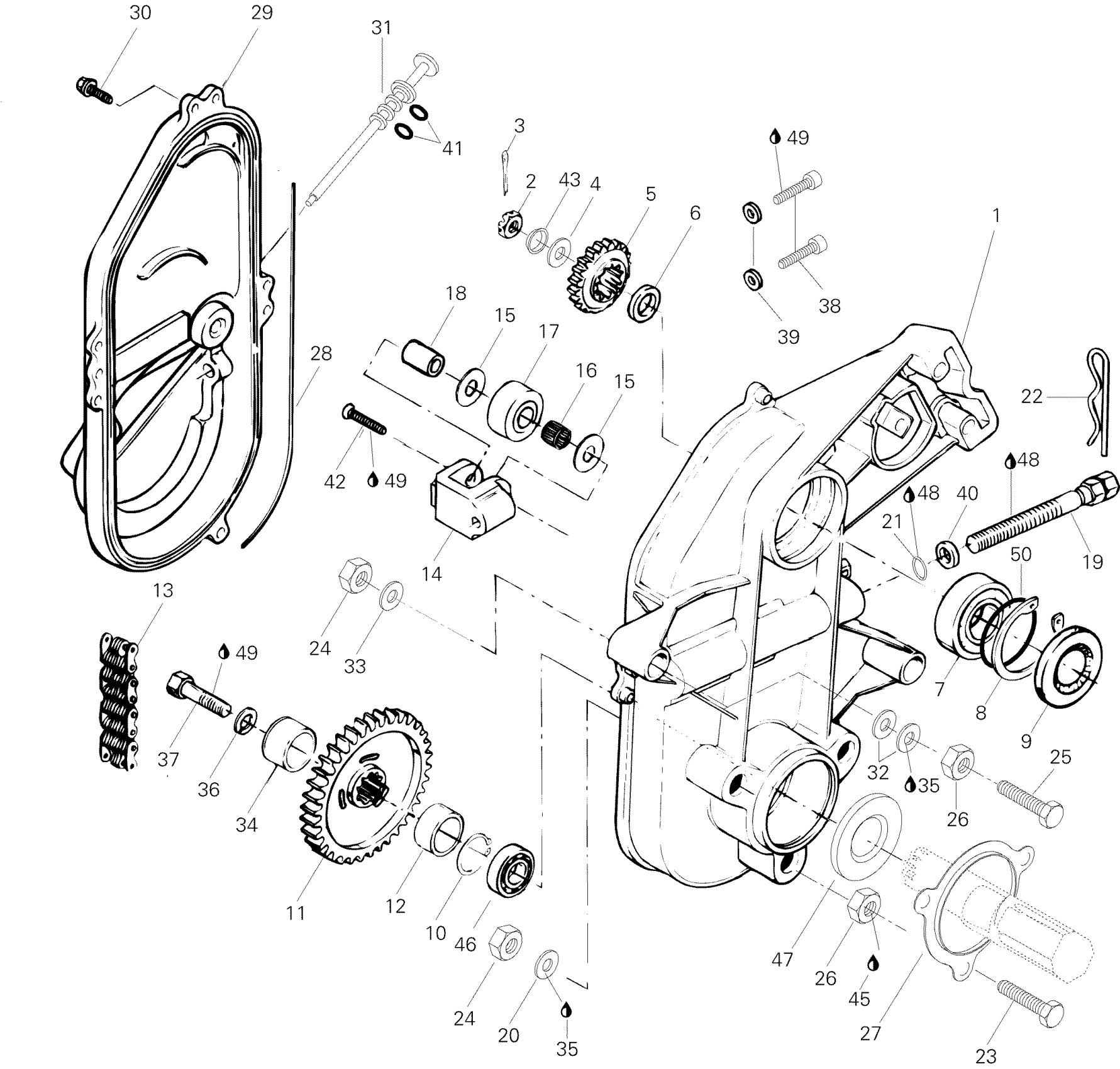

Ski-Doo Formula STX, 1996 Transmission STX Diagram

#

Description
Price

1

Chaincase

504096700

Unavailable

2

HEX. CASTELLATED NUT M16 - Call your local BRP dealership

232210414

Unavailable

3

Cotter Pin

371801300

Unavailable

4

Washer

504087100

Unavailable

5

Sprocket (25 Tooth, Narrow) | Formula 583.

504085200

Unavailable

6

Shim

504093400

Unavailable

7

Ball Bearing

293350115

$10.82

8

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

9

OIL SEAL - Call your local BRP dealership

414882800

Unavailable

10

Circlip (Int-rior)

414784900

Unavailable

11

Sprocket Narrow (44 Tooth) | Formula 500. Formula 583.

504057300

Unavailable

12

Inner Shim

501021800

Unavailable

13

Drive Chain Narrow (74 Links) | Formula 583.

412105800

Unavailable

14

MACHINED TENSIONER - Call your local BRP dealership

504081000

Unavailable

15

WASHER - Call your local BRP dealership

504080300

Unavailable

16

NEEDLE BEARING - Call your local BRP dealership

405403000

Unavailable

17

ROLLER - Call your local BRP dealership

414531300

Unavailable

18

SPACER - Call your local BRP dealership

504080200

Unavailable

19

Tensioner Adjustment Screw

732601163

Unavailable

20

Copper Washer

732900020

Unavailable

21

O-Ring

414484400

$7.09

22

Hair Pin

414575600

$1.73

23

Hex. Screw M10 x 40 | Formula S.

732601112

Unavailable

24

Elastic Locking Nut M10 X 1.5

233601416

$1.63

25

Hex. Screw M10 x 70

732601111

Unavailable

26

Spacer

504083800

Unavailable

27

Protector

501022100

Unavailable

28

O-Ring

414362300

Unavailable

29

CASTING COVER - Call your local BRP dealership

080037100

Unavailable

30

Hex. Flange Screw M6 X 30 | International

210263050

$1.87

31

Filler Cap

572075500

Unavailable

32

WASHER - Call your local BRP dealership

504073700

Unavailable

33

Flat Washer 10 mm

234001410

$1.12

34

Cap

501022400

Unavailable

35

Was 413702700 Loctite 515, 50 ml

219704462

Unavailable

36

Lock Washer 10 mm

224701170

Unavailable

37

Hex. Screw M10 X 25

207102544

$1.27

38

Socket Head Screw M8 x 10

732601132

Unavailable

39

Washer

504082900

$2.51

40

Flat Washer 10 mm

234001410

$1.12

41

O-RING - Call your local BRP dealership

414969400

Unavailable

42

SCREW - Call your local BRP dealership

732601144

Unavailable

43

Spring Washer

417000900

Unavailable

44

Loctite 609, 10 ml

413703100

$23.85

45

Loctite 243, 10 ml

293800060

$21.49

46

Ball Bearing 6206 | Formula 500 LC.

405403900

Unavailable

47

OIL SEAL - Call your local BRP dealership

504151925

Unavailable

48

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

49

Loctite 271, 10 ml

293800005

$23.85

50

Circlip

371910000

$0.96
