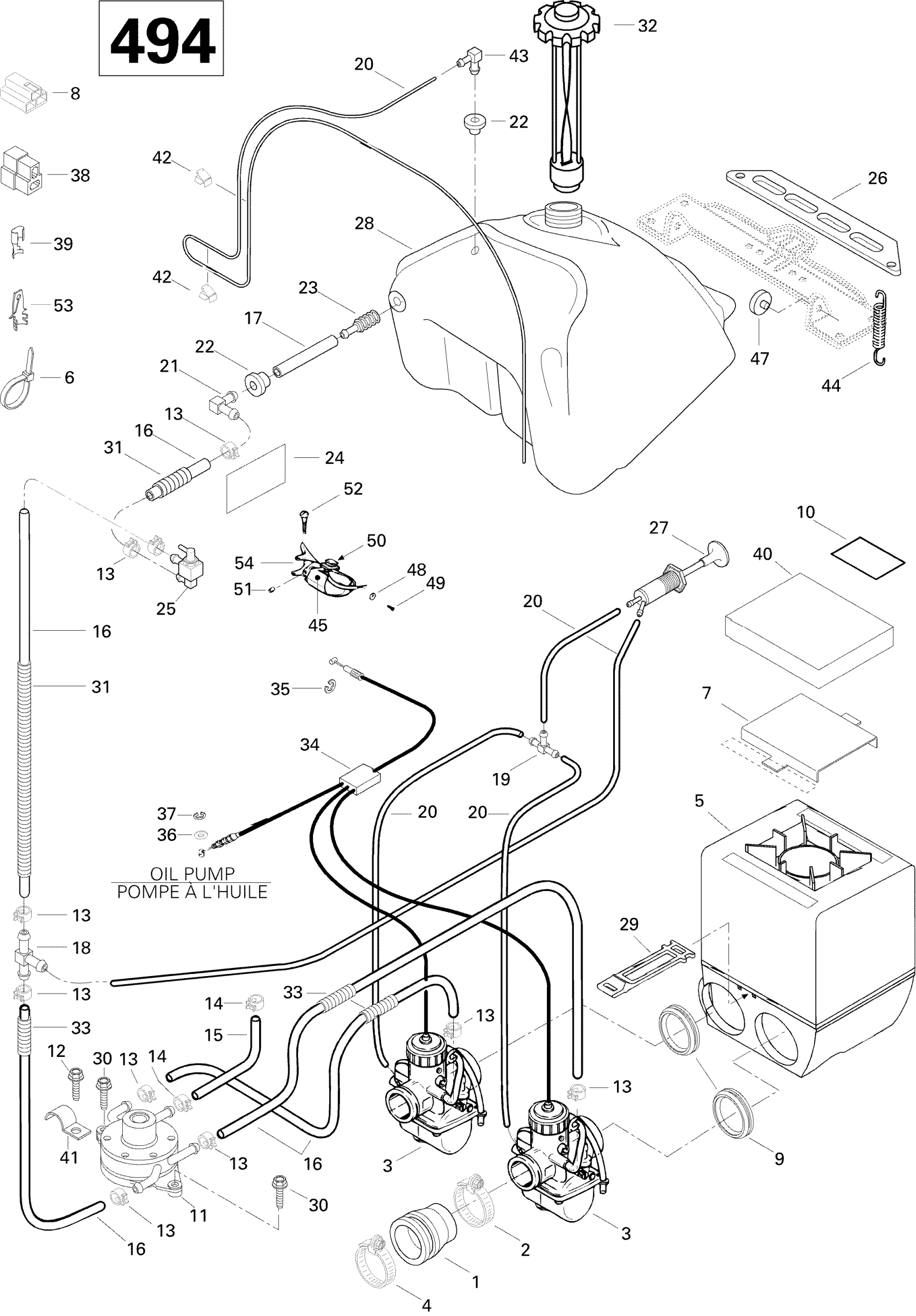

Ski-Doo Formula SLS, 1996 Fuel System Formula SLS Diagram
#
1
Adaptor Caburetor (38 mm)
570048100
Unavailable
2
COLLAR - Call your local BRP dealership
414532700
Unavailable
3
VM 38-311 Carburetor | Includes 1 to 31
403123900
Unavailable
4
Collar | Skandic 600.
414532800
Unavailable
5
Air Silencer Ass‘y
580638600
Unavailable
7
Grill Intake
517283900
Unavailable
8
Female Terminal Housing (3 circuits)
409008500
Unavailable
9
Intake Adaptor VM 38
570048900
Unavailable
10
Warning Decal
414161500
Unavailable
11
Fuel Pump
403900900
Unavailable
15
Hose
219704549
Unavailable
16
Polyurethane Hose 10000Mm Long
219704410
Unavailable
17
Not Available As Spare Part - Friction Washer
Unavailable
19
T-Fitting
414222400
Unavailable
20
Fuel Line 3.18 mm | Formula 500. Formula 500 Deluxe.
414296900
Unavailable
24
Security Label | MX Z 670 HO.
414931500
Unavailable
25
SHUT OFF VALVE - Call your local BRP dealership
414935900
Unavailable
26
Fuel Tank Bracket
517249200
Unavailable
27
Primer
415060500
Unavailable
28
Fuel Tank
571008701
Unavailable
29
LATCH - Call your local BRP dealership
570069700
Unavailable
31
Not Available As Spare Part - Friction Washer
Unavailable
32
Fuel Tank Cap
572161200
Unavailable
33
Was 409901800 Tubing (13 mm)
219704400
Unavailable
34
Throttle Cable and Housing (38 mm)
414968801
Unavailable
35
Circlip
414274500
Unavailable
38
MALE HOUSING - Call your local BRP dealership
409204500
Unavailable
39
Female Terminal PACKARD
561503200
Unavailable
40
Exterior Foam
415016300
Unavailable
44
SPRING - Call your local BRP dealership
517182100
Unavailable
45
Throttle Handle Housing | Skandic 600.
572028600
Unavailable
46
Tubing Helical | Formula 500. Formula 500 Deluxe.
410904000
Unavailable
47
Grommet | Europe
707800347
Unavailable
48
WASHER-FLAT - Call your local BRP dealership
391300700
Unavailable
53
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
54
Handle Ass'y
512059348
Unavailable
