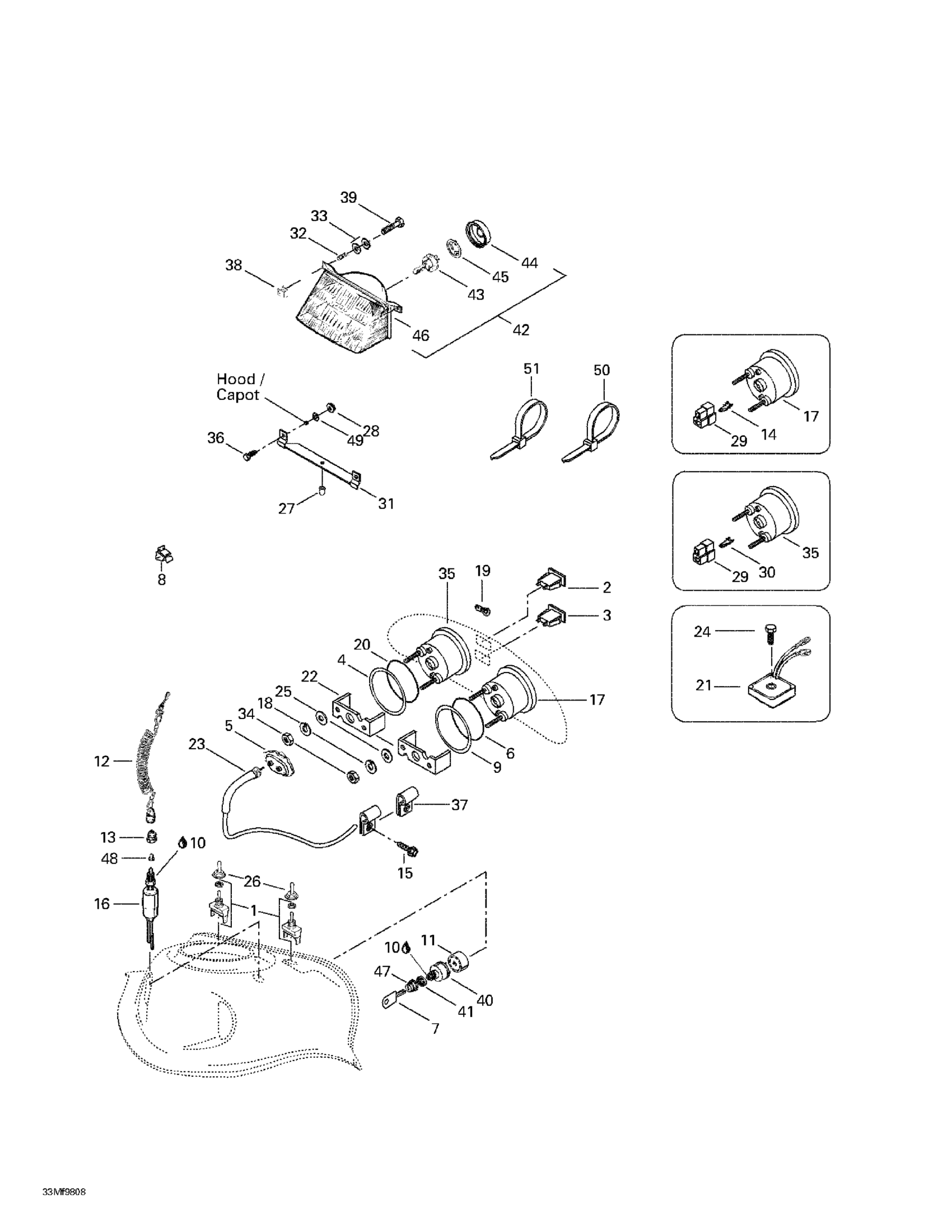

Ski-Doo Formula Sl, 1998 Electrical System Diagram

#

Description
Price

1

Switch (Heating Grip) | FREERIDE

410107300

$34.58

2

Pilot Lamp (Red)

410109500

Unavailable

3

Pilot Lamp (Blue)

410109600

Unavailable

4

Washer

517258500

Unavailable

5

Drive Angle | Formula S.

572022300

Unavailable

6

O-Ring

414807100

Unavailable

7

Blank Key

415129350

Unavailable

8

Clip

414227300

$1.45

9

Washer

517258500

Unavailable

10

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

11

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

12

Cap Ass'y

515178283

$37.66

13

Switch Nut

515154900

Unavailable

14

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

15

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

16

Brake Switch

515175653

$15.57

17

Speedometer (KMH)

415097000

Unavailable

Speedometer (MPH)

415097100

Unavailable

18

Lock Washer

414806700

Unavailable

19

INSTRUMENTATION BULB - Call your local BRP dealership

410504200

Unavailable

20

O-Ring

414807100

Unavailable

21

VOLTAGE REGULATOR - Call your local BRP dealership

515163800

Unavailable

22

Case Holder

414806500

Unavailable

23

Speedometer Cable

414761400

Unavailable

24

Hex. Screw M6 x 35

732600016

Unavailable

25

Flat Washer

517225900

$0.17

26

Switch Cover

515175281

$15.03

27

RUBBER STOPPER - Call your local BRP dealership

410608200

$5.35

28

Elastic Stop Nut M5

232551414

Unavailable

29

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

30

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

31

Headlamp Support

517218500

Unavailable

32

Spring

517168600

Unavailable

33

Flat Washer M5

234051410

Unavailable

34

Nut

414806900

Unavailable

35

Tachometer | Formula Deluxe 500.

415098000

Unavailable

36

Hex. Screw M5 X 12

207151244

Unavailable

37

Open Clamp

414176000

$1.86

38

Projector Nut

572078600

Unavailable

39

Screw M4 x 40

732603002

Unavailable

40

IGNITION SWITCH - Call your local BRP dealership | MX Z 380 F.

410111200

Unavailable

41

FACE NUT - Call your local BRP dealership

410112100

$14.29

42

Headlamp | Includes 42 to 45

410609100

Unavailable

43

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

Unavailable

44

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

45

BULB HOLDER - Call your local BRP dealership

410608300

$9.97

46

Headlamp | Includes 53 to 56

410609300

Unavailable

47

Switch Boot

570013700

Unavailable

48

Plunger Cap

570151100

$10.14

49

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

50

Tie-Rap 180 mm

414115200

$0.09

51

Tie Wrap 368 mm

293750008

$0.85
