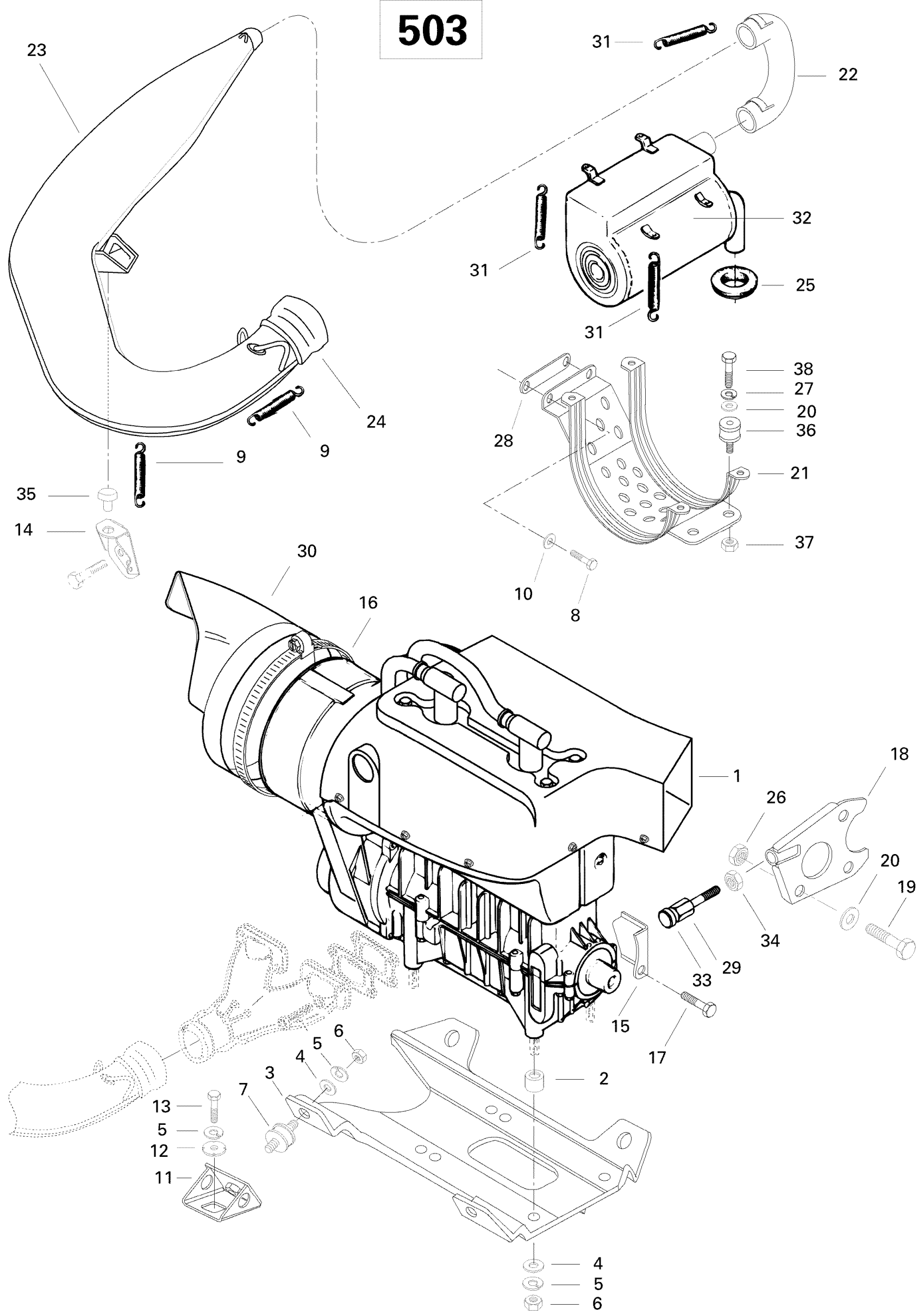

Ski-Doo Formula SL, 1996 Engine And Engine Support 503 Diagram
#
Description
Price
1
«503» Engine
400506700
Unavailable
2
SPACER - Call your local BRP dealership
512051800
Unavailable
3
Engine Support
512054500
Unavailable
4
Flat Washer 10 mm
234001410
Unavailable
5
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.
234100602
Unavailable
7
RUBBER MOUNT - Call your local BRP dealership
570127700
Unavailable
9
SPRING - Call your local BRP dealership
517182100
Unavailable
10
Flat Washer 6 mm
234061410
Unavailable
11
Support | Formula S.
512055400
Unavailable
12
Lock Washer
512056700
Unavailable
13
Hex. Screw M10 X 25
207102544
Unavailable
14
Muffler Support | Formula S.
514038800
Unavailable
15
Stopper Plate
512052200
Unavailable
16
Tridon Gear Clamp | MX Z 440 F.
408803700
Unavailable
18
Support Plate
517271800
Unavailable
19
Hex. Screw M8 X 25
207182544
Unavailable
20
Flat Washer 8 mm
234081410
Unavailable
21
Welded Bracket
514040300
Unavailable
22
Tail Pipe
514038700
Unavailable
23
Tune Pipe | Includes 23 to 24
514038400
Unavailable
25
EXHAUST GROMMET - Call your local BRP dealership
570039000
Unavailable
26
Hex. Elastic Stop Nut M8
232581414
Unavailable
27
Lock Washer 8 mm
234181401
Unavailable
28
Side Bracket
517267100
Unavailable
29
Screw
517244200
Unavailable
30
Air Deflector | Formula SL.
572058500
Unavailable
31
Spring
414851600
Unavailable
32
Muffler
514038600
Unavailable
33
Rod retainer
570025100
Unavailable
34
HEX. NUT M12 - Call your local BRP dealership
232120414
Unavailable
36
Rubber Mount | Formula 500. Formula 500 Deluxe.
570016100
Unavailable
37
Hex. Flange Elastic Nut M8
233281414
Unavailable
38
Screw Hex. M8 x 12 | Formula 500. Formula 500 Deluxe.
222081265
Unavailable
