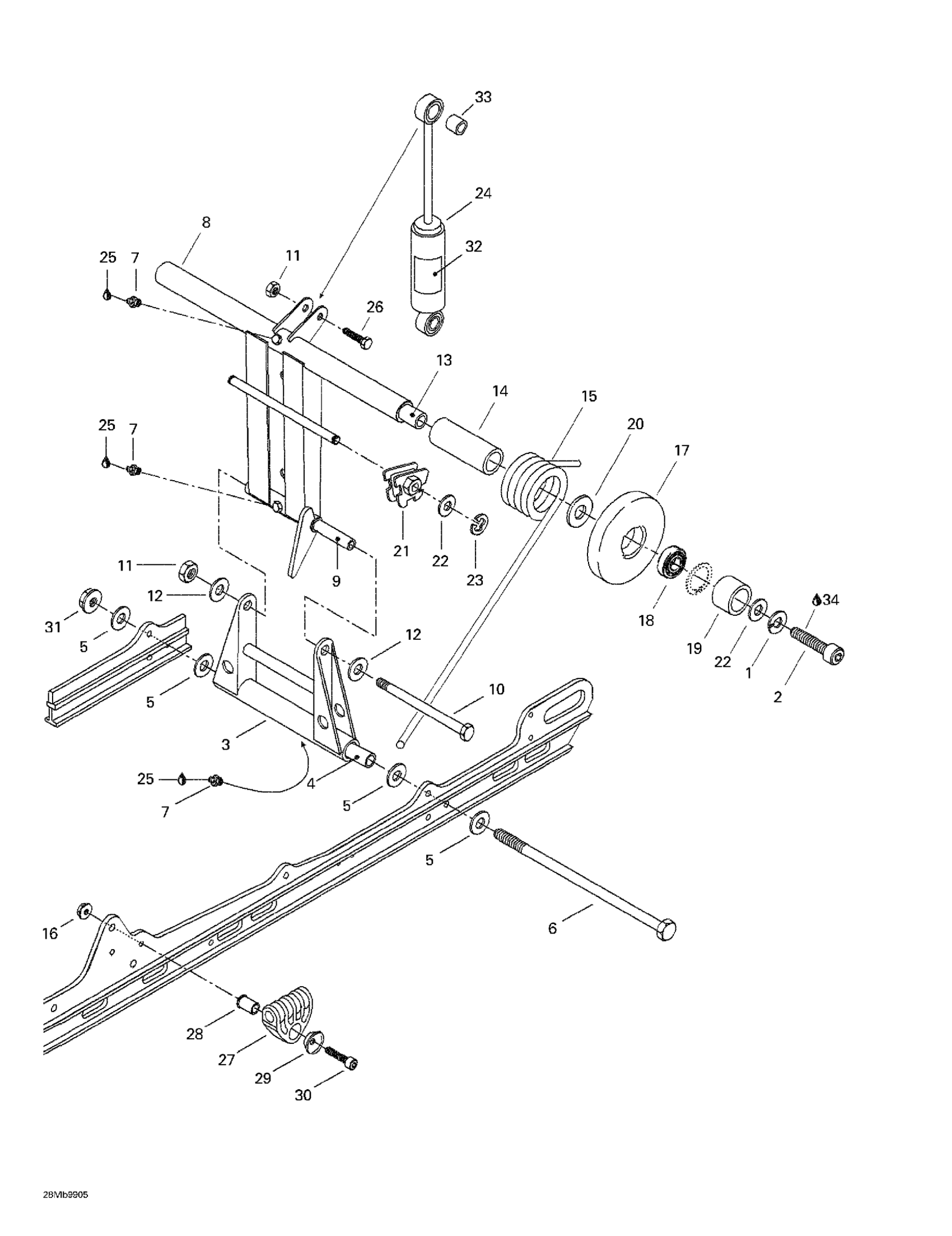

Ski-Doo Formula S, 1999 Rear Arm, Rear Suspension Diagram
#
1
Helicoidal Lock Washer M10 | XT Models
234101601
Unavailable
2
Socket Screw M10 X 35
205003544
Unavailable
4
Lower Axle Pivot
503154703
Unavailable
5
FLAT WASHER - Call your local BRP dealership
224081201
Unavailable
6
Bolt M8 X 248mm
503192440
Unavailable
7
Grease Fitting
408200700
Unavailable
8
Welded Rear Arm
503151200
Unavailable
9
Upper Axle, Pivot Arm
503144300
Unavailable
10
Bolt M8, Short
732601197
Unavailable
11
Hex. Elastic Stop Nut M8
232581414
Unavailable
12
Flat Washer 8 mm
234081410
Unavailable
13
Transversal Rear Axle
503151400
Unavailable
14
Bushing
572047800
Unavailable
15
RH Spring
414866200
Unavailable
RH Spring | Formula Deluxe 500 LC. Formula Deluxe 583.
415010500
Unavailable
LH Spring
414866300
Unavailable
LH Spring | Formula Deluxe 500 LC. Formula Deluxe 583.
415010600
Unavailable
16
Hex. Flange Elastic Nut M8
233281414
Unavailable
17
IDLER WHEEL 155 - Call your local BRP dealership | Includes 15 - 16.
572094300
Unavailable
19
Spacer
503154200
Unavailable
21
LH ADJUST CAM - Call your local BRP dealership
572030800
Unavailable
RH ADJUST CAM - Call your local BRP dealership
572030900
Unavailable
22
Flat Washer 10 mm
234001410
Unavailable
23
e Circlip
371907100
Unavailable
24
Shock
503188905
Unavailable
Shock (Europe)
503189258
Unavailable
25
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
26
Hex. Screw M8 X 40
207084044
Unavailable
27
Spring Support
503189657
Unavailable
28
Spring Guide Axle
503188934
Unavailable
29
CUSHION RETAINER - Call your local BRP dealership
503188929
Unavailable
30
Socket Head Screw M8 X 45
205084544
Unavailable
31
Hex. Flange Elastic Nut M8
233281414
Unavailable
32
HPG Decal (Europe)
516000182
Unavailable
33
CUSHION - Call your local BRP dealership
414802600
Unavailable
