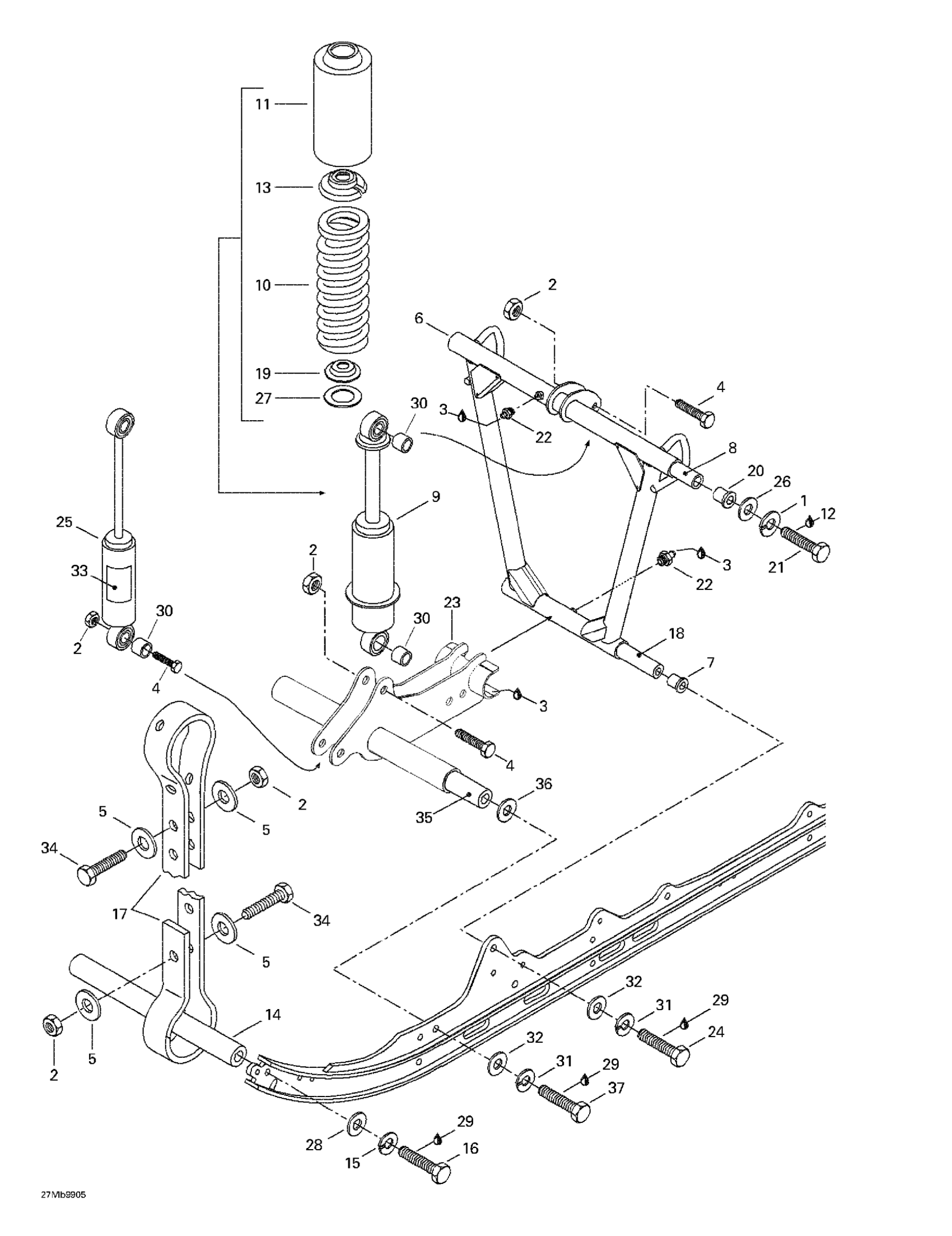

Ski-Doo Formula S, 1999 Front Arm, Rear Suspension Diagram
#
Description
Price
1
Helicoidal Lock Washer M10 | XT Models
234101601
Unavailable
2
Hex. Elastic Stop Nut M8
232581414
Unavailable
3
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
4
Hex. Screw M8 X 40
207084044
Unavailable
5
WASHER - Call your local BRP dealership
517078700
Unavailable
6
Welded Front Arm
503189222
Unavailable
7
Cushion
503188940
Unavailable
8
SHAFT - Call your local BRP dealership
503190387
Unavailable
9
Shock | Formula Deluxe 380.
503188904
Unavailable
10
Spring
415069900
Unavailable
11
Protector
503193663
Unavailable
15
Lock Washer 8 mm
234181401
Unavailable
16
Hex. Screw M8 X 30
207183044
Unavailable
17
Stopper Strap
570069300
Unavailable
18
Shaft
503182000
Unavailable
21
HEX. SCREW M10 X 60 - Call your local BRP dealership
207006044
Unavailable
22
Grease Fitting
408200700
Unavailable
23
Welded Shock Support
503182100
Unavailable
24
Hex. Screw M12 x 60 | Formula Deluxe 500 LC. Formula Deluxe 583.
222026065
Unavailable
25
Shock
503188905
Unavailable
Shock (Europe)
503189258
Unavailable
26
Flat Washer 10 mm
234001410
Unavailable
28
Flat Washer 8 mm
234081410
Unavailable
29
Loctite 271, 10 ml
293800005
Unavailable
30
CUSHION - Call your local BRP dealership
414802600
Unavailable
31
Lock Washer 12 mm
224721218
Unavailable
33
HPG Decal (Europe)
516000182
Unavailable
34
Hex. Screw M8 X 25
207182544
Unavailable
35
Lower Axle
503174800
Unavailable
36
Hardened Washer
503175400
Unavailable
37
SCREW-HEX.CAP M12 X 35 - Call your local BRP dealership
222023565
Unavailable
