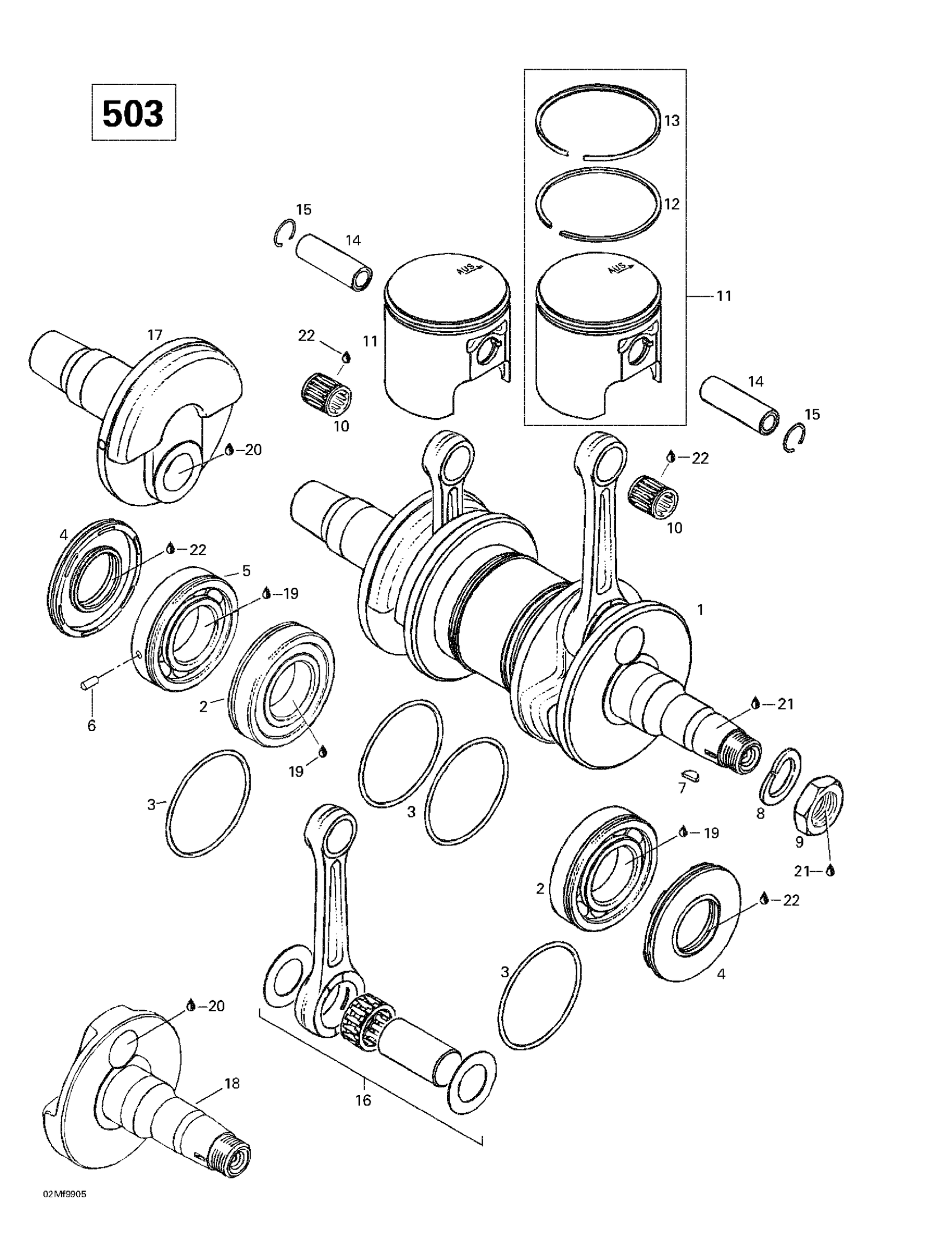

Ski-Doo Formula S, 1999 Crankshaft And Pistons (503) Diagram
#
Description
Price
1
Crankshaft Ass'y | Includes 1 - 6. Formula Deluxe 500.
420996447
Unavailable
2
Bearing_Ball This part replaces 290832231.
420832584
Unavailable
3
O-Ring, 64 mm X 2 mm
293300022
Unavailable
4
Oil Seal This part replaces 290831952.
420831952
Unavailable
5
Ball Bearing
420832573
Unavailable
6
Dowel Pin
420929972
Unavailable
7
Woodruff Key
420246055
Unavailable
8
Lock Washer, 22 mm
420945759
Unavailable
9
Hex. Nut, M22 X 1.5
420842239
Unavailable
10
Needle Bearing
420832320
Unavailable
11
Piston 71.91, Std | 22 to 24 This part replaces 420888175.
420890070
Unavailable
Piston 72.16, 1st Oversize This part replaces 420888176.
420890071
Unavailable
Piston 72.41, 2nd Oversize This part replaces 420888177.
420890072
Unavailable
12
RECTANGULAR RING 72 MM, STD - Call your local BRP dealership
420915850
Unavailable
RECTANGULAR RING 72.25 MM, 1ST - Call your local BRP dealership
420915851
Unavailable
RECTANGULAR RING 72.5 MM, 2ND - Call your local BRP dealership
420915852
Unavailable
13
SEMI-TRAPEZ RING 72.0 MM, STD - Call your local BRP dealership
420815200
Unavailable
SEMI-TRAPEZ RING 72.25 MM, 1ST - Call your local BRP dealership
420815201
Unavailable
SEMI-TRAPEZ RING 72.5 MM, 2ND - Call your local BRP dealership
420815202
Unavailable
14
GUDGEON PIN - Call your local BRP dealership
420916186
Unavailable
15
Piston Circlip
420945735
Unavailable
16
Crankshaft Repair Kit | Skandic 500F. Skandic 500F (SWT).
420994564
Unavailable
17
Half Crankshaft PTO | Touring SLE.
420818242
Unavailable
18
CRANKSHAFT HALF MAG - Call your local BRP dealership
420819020
Unavailable
19
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
20
Sealant Loctite 648
219703000
Unavailable
