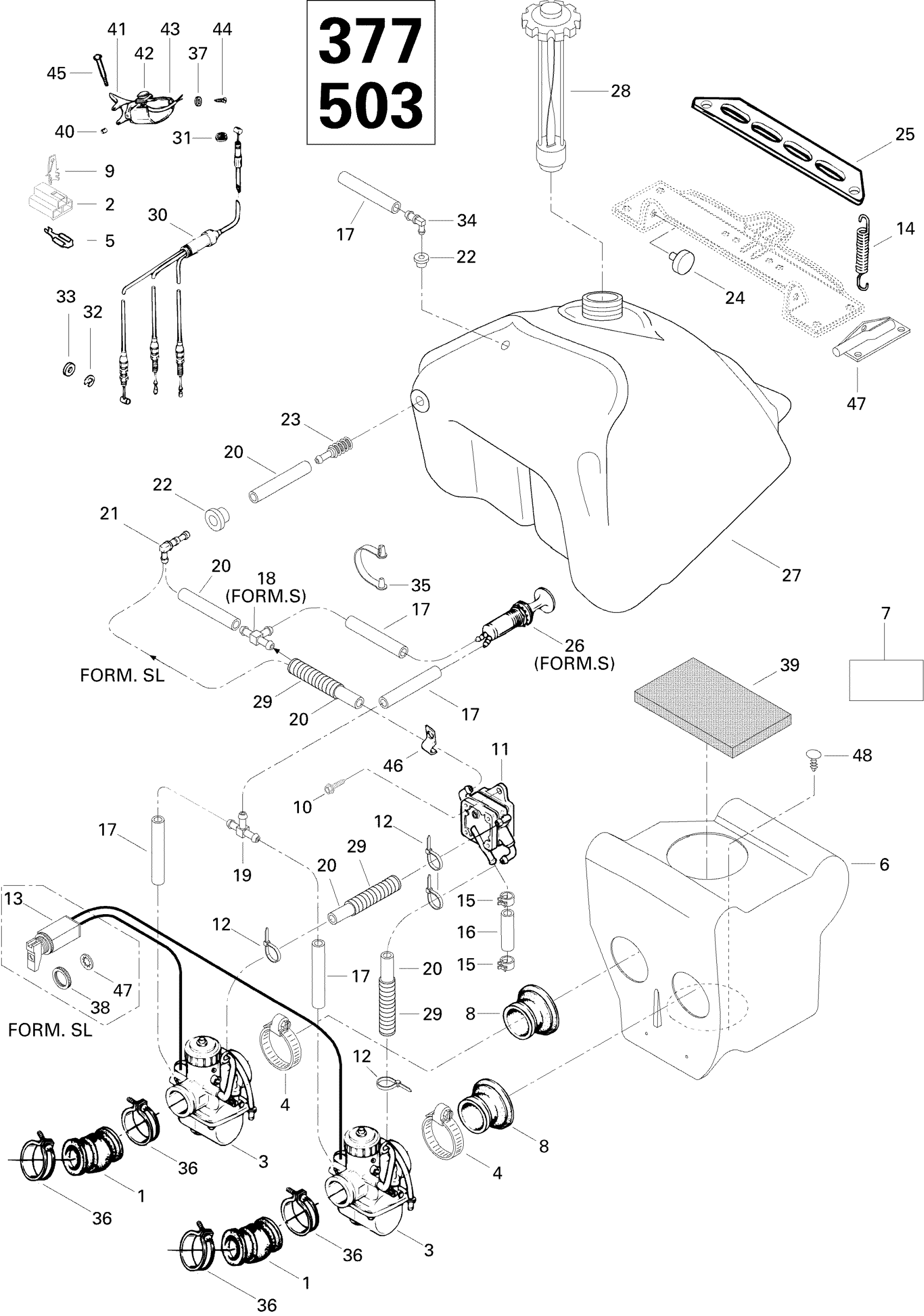

Ski-Doo Formula S, 1996 Fuel System Formula S Diagram
#
Description
Price
1
Rubber Flange
570045000
Unavailable
2
Not Available As Spare Parts
XXX
Unavailable
3
Carburetor VM 30-188 | Includes 1 to 30
403125700
Unavailable
4
TRIDON GEAR CLAMP - Call your local BRP dealership
408801600
Unavailable
5
Not Available As Spare Parts
XXX
Unavailable
6
Air Silencer (Incl. 4,7,8,39)
580638501
Unavailable
7
Warning Decal
414161500
Unavailable
8
Adaptor 34 mm
570043600
Unavailable
9
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
11
Fuel Pump
403801000
Unavailable
13
Not Available As Spare Parts
XXX
Unavailable
14
SPRING - Call your local BRP dealership
517182100
Unavailable
16
Hose
219704549
Unavailable
17
Fuel Line 3.18 mm | Formula 500. Formula 500 Deluxe.
414296900
Unavailable
19
T-Fitting
414222400
Unavailable
20
Polyurethane Hose 10000Mm Long
219704410
Unavailable
24
Grommet | Europe
707800347
Unavailable
25
Fuel Tank Bracket
517249200
Unavailable
26
Primer
415060500
Unavailable
27
Fuel Tank
571008700
Unavailable
28
Fuel Tank Cap
572161200
Unavailable
29
Was 409901800 Tubing (13 mm)
219704400
Unavailable
30
THROTTLE CABLE AND HOUSING - Call your local BRP dealership
414883100
Unavailable
31
Circlip
414274500
Unavailable
36
TRIDON GEAR CLAMP - Call your local BRP dealership
408801900
Unavailable
37
WASHER-FLAT - Call your local BRP dealership
391300700
Unavailable
38
Not Available As Spare Parts
XXX
Unavailable
39
Air Filter
414922700
Unavailable
41
Throttle Handle (30 mm)
572054300
Unavailable
43
Throttle Handle Housing | Skandic 600.
572028600
Unavailable
47
Not Available As Spare Parts
XXX
Unavailable
