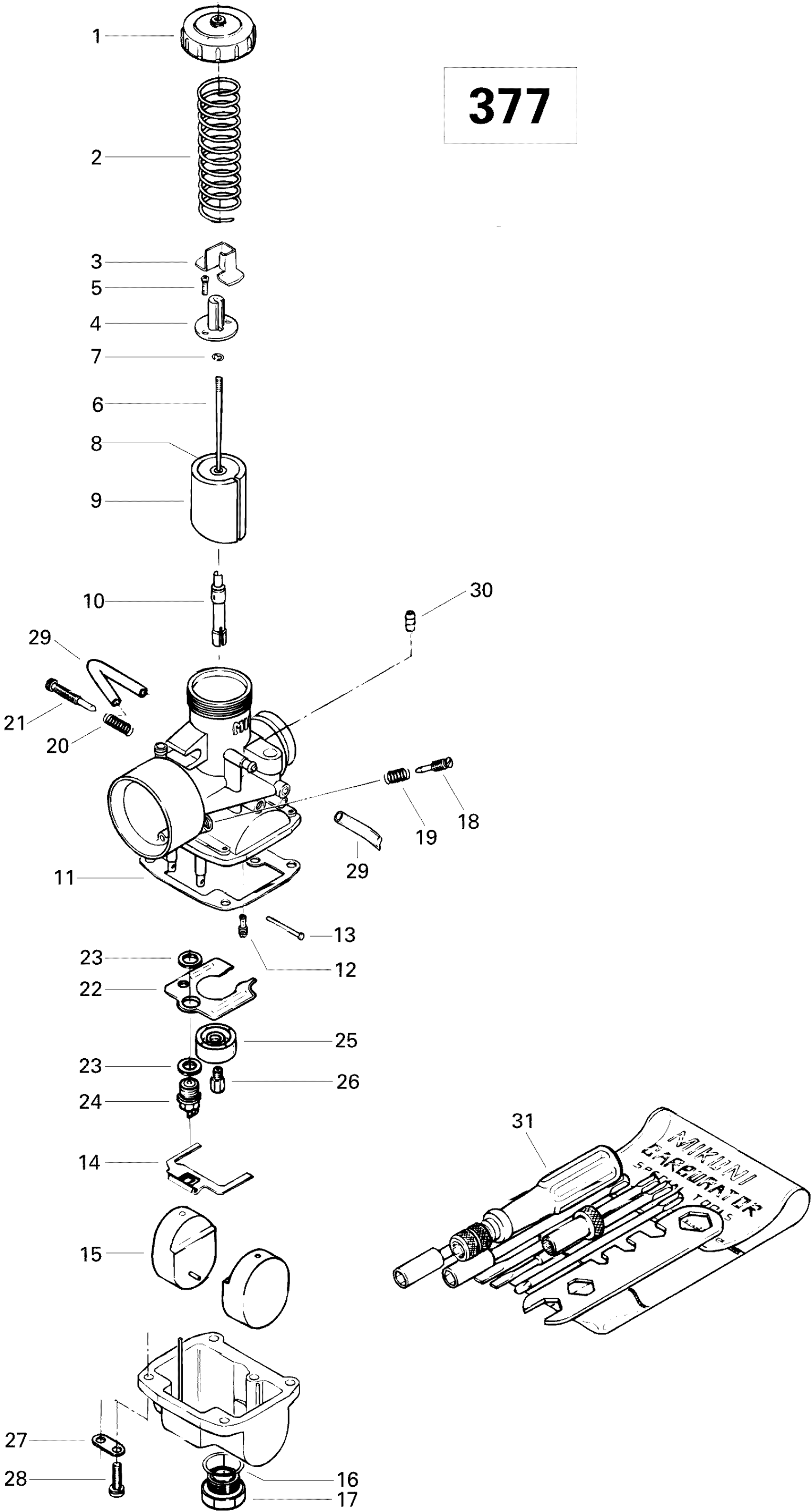

Ski-Doo Formula S, 1996 Carburetor 377 Diagram

#

Description
Price

1

Carburetor VM 30-188 | Includes 1 to 30

403125700

Unavailable

1

Cover

404103700

$32.06

2

Spring

404154800

$24.60

3

Cover

404122100

$17.88

4

CONNECTOR - Call your local BRP dealership

404160800

Unavailable

5

Screw With Washer

404121300

$4.24

6

Needle JN 6DP9-3

404152600

Unavailable

7

E-Ring

404152400

$6.36

8

Packing

404117000

$3.31

9

Piston Valve 2.5

404128400

$124.60

10

NEEDLE JET - Call your local BRP dealership

404107000

Unavailable

11

Gasket | Includes 1900a to 1900am

404104200

$6.49

12

PILOT JET PJ40 - Call your local BRP dealership

404109100

Unavailable

13

Lever Pin

404103300

$6.36

14

Float Lever

404107600

$23.85

15

FLOAT - Call your local BRP dealership

404107100

Unavailable

16

O-Ring

404107300

$7.90

17

Drain Plug Screw

404107400

$23.85

18

Air Screw

404102300

$14.46

19

Spring

404101800

$4.36

20

Spring

404101700

$4.24

21

Idle Speed Screw

404109700

$17.88

22

BAFFLE - Call your local BRP dealership

404109600

Unavailable

23

Seat Washer

404101600

$3.21

24

Needle Valve 1.5

404103200

$32.06

25

BAFFLE RING - Call your local BRP dealership

404110900

Unavailable

26

Main Jet MJ 140

404126600

$7.90

27

PLATE - Call your local BRP dealership

404103000

Unavailable

28

Screw With Lock Washer

404102000

$3.19

29

Hose | Grand Touring SE.

404109800

Unavailable

30

Nipple

404153400

$11.16

31

TOOL KIT - Call your local BRP dealership

404112000

Unavailable

32

High Altitude Kit (Not Shown)

861751300

Unavailable
