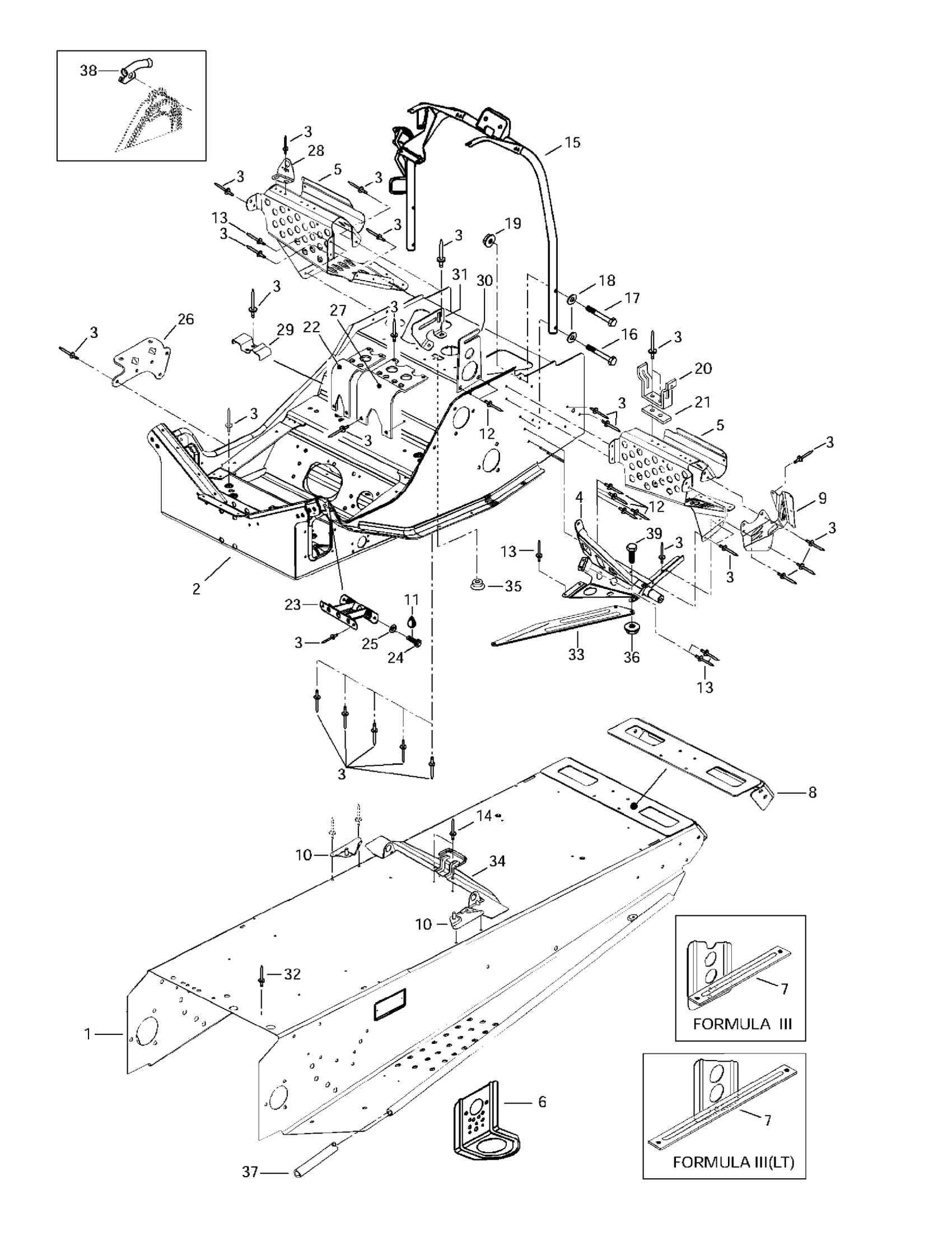

Ski-Doo Formula III LT, 1997 Frame And Accessories Diagram
#
1
Tunnel | Formula III.
518316850
Unavailable
Tunnel | Formula III-LT.
518316853
Unavailable
2
Front Member | Formula III.
518316245
Unavailable
Front Member | Formula III-LT.
518316246
Unavailable
RH Support
518316703
Unavailable
5
RH Front Footrest
518312906
Unavailable
LH Front Footrest
518312907
Unavailable
6
Front Bracket
518312910
Unavailable
7
LH Rear Bracket | Formula Z.
518316749
Unavailable
RH Rear Bracket | Formula Z.
518316750
Unavailable
LH Rear Bracket | Formula III-LT.
518316733
Unavailable
RH Rear Bracket | Formula III-LT.
518316734
Unavailable
8
Cap-End
518310211
Unavailable
Cap-End
518308717
Unavailable
9
Side Plate L.H
518312908
Unavailable
Side Plate R.H
518312909
Unavailable
10
RH Tank Bracket
518304735
Unavailable
LH Tank Bracket
518304736
Unavailable
11
Loctite 271, 10 ml
293800005
Unavailable
12
Avex Rivet
390909200
Unavailable
14
Pop Rivet 3/16"
390402400
Unavailable
15
Handle Steering Support
518304743
Unavailable
18
Flat Washer 6 mm
234061410
Unavailable
19
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
22
Air Silencer Support
518310800
Unavailable
23
Reinf. Plate
518304741
Unavailable
25
Lock Washer 8 mm
234181401
Unavailable
26
Muffler Support | Formula DLX 500 F.
518206300
Unavailable
27
AIR INTAKE SUPPORT - Call your local BRP dealership
518310400
Unavailable
28
Valve Bracket | MX Z 670 HO.
518310206
Unavailable
29
Protector
518207800
Unavailable
30
External Bracket
517252000
Unavailable
31
Internal Bracket
518313900
Unavailable
32
Pop Rivet 3/16"
390402300
Unavailable
33
RH Reinforcement Plate
518316709
Unavailable
LH Reinforcement. Plate
518316710
Unavailable
34
Seat Bracket
518310208
Unavailable
36
Hex. Flange Elastic Nut M5
233251414
Unavailable
37
FOOTREST REINFORCEMENT - Call your local BRP dealership
518304746
Unavailable
38
Rope Guide
517276000
Unavailable
39
Hex. Screw M5 X 16 | 4X4
207151644
Unavailable
