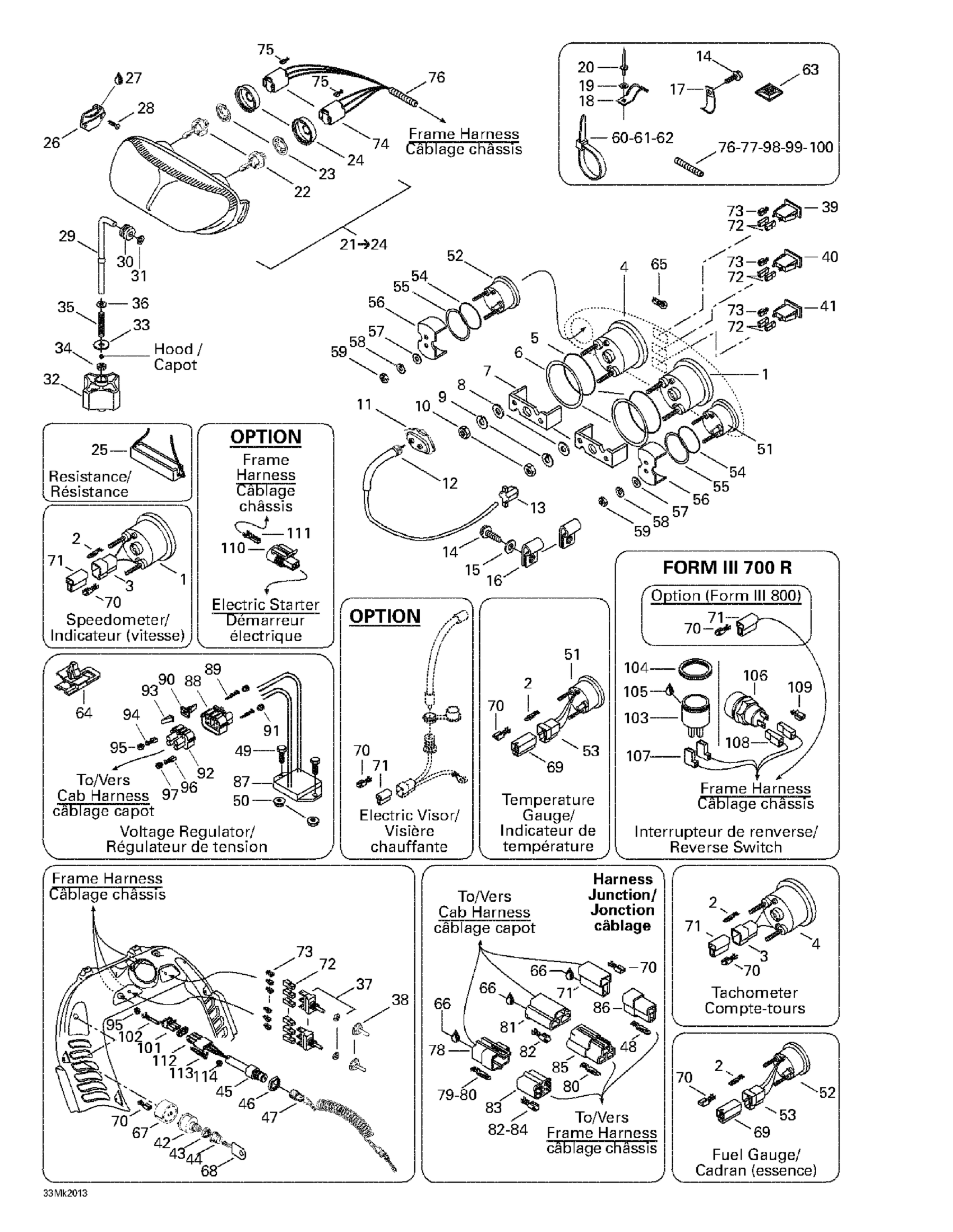

Ski-Doo Formula III 700 R, 2000 Electrical System Diagram
#
1
Speedometer, Kmh
515175335
Unavailable
Speedometer, Mph
515175336
Unavailable
2
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
3
MALE HOUSING - Call your local BRP dealership
409204500
Unavailable
4
Tachometer
515175340
Unavailable
5
O-Ring
414807100
Unavailable
6
Washer
517258500
Unavailable
7
Case Holder
414806500
Unavailable
9
Lock Washer
414806700
Unavailable
10
Nut
414806900
Unavailable
11
Drive Angle
515175400
Unavailable
12
Speedometer Cable
515175218
Unavailable
13
SPEEDO DRIVE INSERT - Call your local BRP dealership
572010100
Unavailable
14
HEX. SCREW 12 X 3/4 - Call your local BRP dealership
365901100
Unavailable
15
Washer | DS 650 X
391301600
Unavailable
17
Cable Bracket
515175160
Unavailable
18
Bracket
517274400
Unavailable
19
Washer
517124300
Unavailable
21
Halogen Headlamp Ass'y | Includes 4 to 7
515176311
Unavailable
22
Halogen Bulb, 60/55 W, 12 V ( H4 )
515176274
Unavailable
24
PROTECTOR CAP - Call your local BRP dealership
410607100
Unavailable
25
Resistance
515175241
Unavailable
26
RH Support
517289300
Unavailable
LH Support
517289400
Unavailable
27
Grease Tube Lmz, 400 G
413707500
Unavailable
28
Headlamp Screw
732601315
Unavailable
29
ADJUSTER ROD - Call your local BRP dealership
517295800
Unavailable
30
Grommet - Call your local BRP dealership
415100800
Unavailable
31
Push Nut
732610072
Unavailable
32
Handle - Call your local BRP dealership
515175548
Unavailable
33
Washer
224060251
Unavailable
34
Elastic Stop Nut M6
232561414
Unavailable
35
SPRING - Call your local BRP dealership
415100600
Unavailable
36
Flat Washer 6 mm
234061410
Unavailable
39
Pilot Lamp (Red)
410109500
Unavailable
40
Pilot Lamp (Blue)
410109600
Unavailable
41
Pilot Lamp, Dess | 600 SUV
410113300
Unavailable
Pilot Lamp (Reverse/DESS) | Formula III 700 R.
515175137
Unavailable
42
IGNITION SWITCH - Call your local BRP dealership | Formula Deluxe 380 F.
410111300
Unavailable
44
Switch Boot
570013700
Unavailable
45
TERMINAL ASSY - Call your local BRP dealership | SUV 600
515166800
Unavailable
47
DESS
515178284
Unavailable
48
Not Available As Spare Part - Friction Washer
Unavailable
50
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
51
Temperature Gauge
515175342
Unavailable
52
FUEL GAUGE - Call your local BRP dealership
515175343
Unavailable
54
O-RING - Call your local BRP dealership
414807200
Unavailable
55
WASHER - Call your local BRP dealership
517258600
Unavailable
56
Case Holder
415099800
Unavailable
57
FLAT WASHER - Call your local BRP dealership | 4X4
250200081
Unavailable
58
Lock Washer | SE Models
414833700
Unavailable
59
NUT - Call your local BRP dealership | SE Models
414833600
Unavailable
62
Tie Wrap 142 mm
293750002
Unavailable
63
TIE RAP MOUNT - Call your local BRP dealership
293750015
Unavailable
65
INSTRUMENTATION BULB - Call your local BRP dealership
410504200
Unavailable
66
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
67
FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership
572150700
Unavailable
68
Blank Key
415129350
Unavailable
69
Female Housing
409204300
Unavailable
70
Female Terminal
561503100
Unavailable
71
FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership
409204600
Unavailable
74
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
409202700
Unavailable
75
FEMALE TERMINAL - Call your local BRP dealership
515175320
Unavailable
76
Was 409901800 Tubing (13 mm)
219704400
Unavailable
77
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
78
MALE HOUSING - Call your local BRP dealership
409209300
Unavailable
79
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
80
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
81
Female Terminal Housing (3 circuits)
409008500
Unavailable
82
Female Terminal PACKARD
561503200
Unavailable
83
FEMALE HOUSING - Call your local BRP dealership
409204900
Unavailable
84
FEMALE TERMINAL - Call your local BRP dealership
515175313
Unavailable
85
Male Terminal Housing (3 circuits)
409008600
Unavailable
86
MALE HOUSING - Call your local BRP dealership
409204500
Unavailable
87
Voltage Regulator | Includes 48 - 52.
515175491
Unavailable
88
Female Terminal Housing (4 circuits)
409208000
Unavailable
89
FEMALE TERMINAL - Call your local BRP dealership
278000994
Unavailable
90
Female Lock
409013400
Unavailable
91
WIRE SEAL - Call your local BRP dealership
278000996
Unavailable
92
Male Terminal Housing (4 circuits)
409207700
Unavailable
93
Male Lock
409013100
Unavailable
94
Male Terminal
409010900
Unavailable
95
Seal
409208300
Unavailable
96
Male Terminal
409013000
Unavailable
97
WIRE SEAL - Call your local BRP dealership
278000996
Unavailable
98
Was 409901700 Tubing (9 mm)
219704399
Unavailable
99
TUBING 6 MM - Call your local BRP dealership
515175442
Unavailable
100
Tubing 10 MM 1000MM Long
219704407
Unavailable
101
Male Housing, 3 Circuits
278000273
Unavailable
102
Female Terminal
278000223
Unavailable
103
HORN - Call your local BRP dealership
515176035
Unavailable
105
Silicone Sealant 51388, 300 ml
296000309
Unavailable
106
Push Button
415130372
Unavailable
112
Female Terminal Housing, 3 Circuits | XT Models
278000281
Unavailable
114
Wire Seal
278000218
Unavailable
