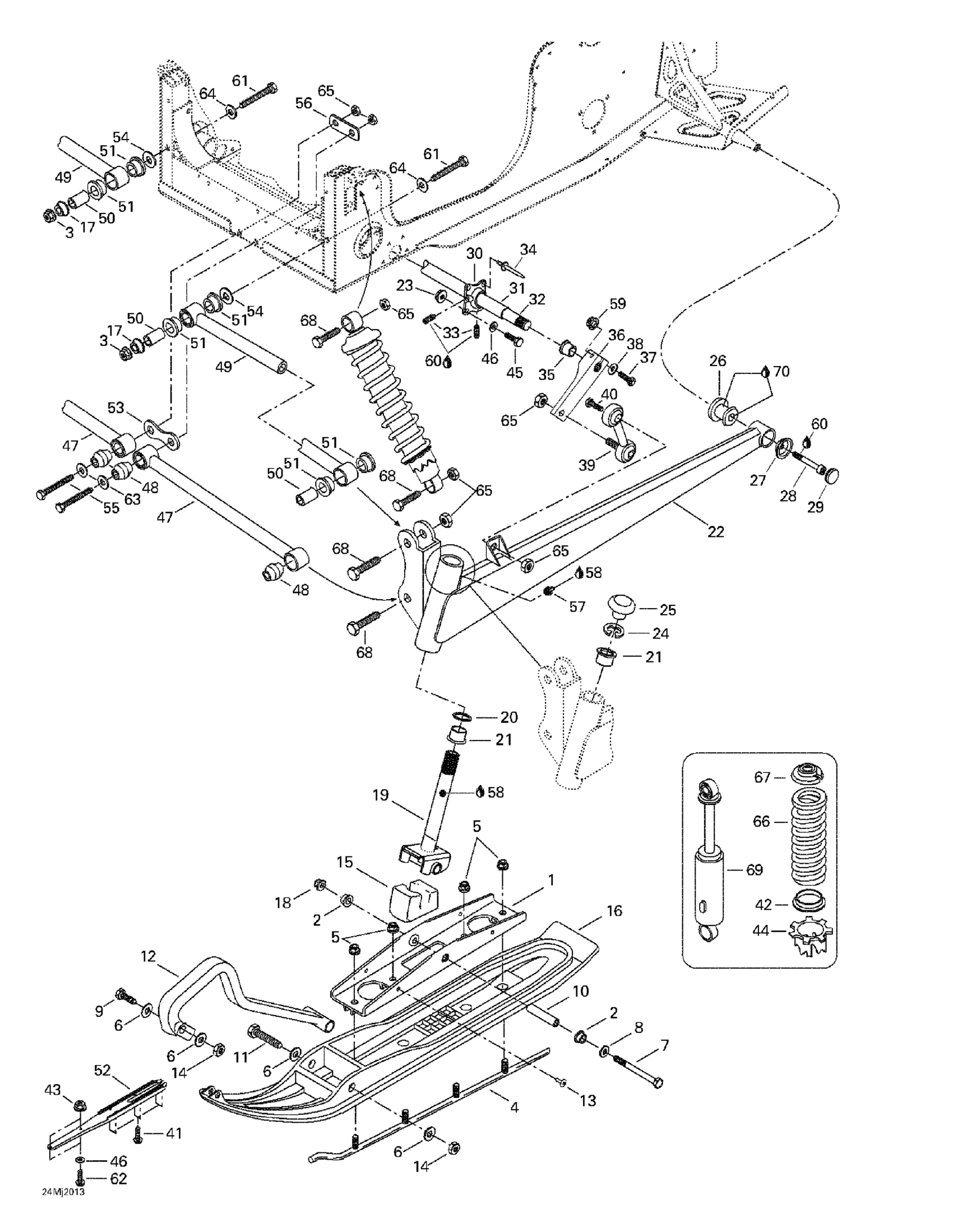

Ski-Doo Formula III 700 R, 2000 Front Suspension Diagram

#

Description
Price

1

Bridge-ass'y | Includes 2 - 3.

505070055

Unavailable

Bridge Ass'y

505070479

Unavailable

2

BUSHING - Call your local BRP dealership

505070001

Unavailable

3

Hex. Flange Elastic Nut M10

233201414

$1.26

4

CARBIDE RUNNER - Call your local BRP dealership

860501900

Unavailable

5

Elastic Locking Nut M10 X 1.5

233601416

$1.68

6

Flat Washer 8 mm

234081410

Unavailable

7

HEX. SCREW M10 X 110 - Call your local BRP dealership

250000001

Unavailable

8

Washer

732900049

Unavailable

9

Hex. Screw M8 X 50

207085044

Unavailable

10

Spacer

506133300

Unavailable

11

SCREW-HEX. M8 X 100 - Call your local BRP dealership

230080044

Unavailable

12

Black, Handle

505070963

Unavailable

13

RIVET_POP 1/4 - Call your local BRP dealership

390911100

Unavailable

14

Hex. Elastic Stop Nut M8

232581414

Unavailable

15

SKI STOPPER - Call your local BRP dealership

505072018

Unavailable

16

Ski-Liner Flex

505070189

Unavailable

17

Spacer

506148400

Unavailable

18

Hex. Flange Elastic Nut M10

233201414

$1.26

19

Ski Leg

506151234

Unavailable

20

WASHER - Call your local BRP dealership

505070004

Unavailable

21

Cushion

505070003

Unavailable

22

RH Swing Arm

505070386

Unavailable

LH Swing Arm

505070387

Unavailable

23

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

24

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

25

Cap

572091300

$8.97

26

Damper

570062700

Unavailable

27

Cup

506128500

Unavailable

28

Socket Head Screw M10 X 25

205002544

Unavailable

29

CAP - Call your local BRP dealership

572045900

Unavailable

30

RH Housing

505070276

Unavailable

LH Housing

506138900

Unavailable

31

Main Tube

506136200

Unavailable

32

Stabilizator

506134300

Unavailable

33

Socket Set Screw M8 X 10

414440800

$4.00

34

Rivet pop 1/4"

390404900

Unavailable

35

CUSHION - Call your local BRP dealership

415039500

$3.82

36

Stabilizer Lever

506134402

Unavailable

37

Hex. Screw M8 X 45

207084544

Unavailable

38

Washer 8 mm | Formula S.

224081410

Unavailable

39

Double Ball Joint

415101400

Unavailable

40

Hex. Screw M10 X 35

207103544

Unavailable

41

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

42

GUIDE_SPRING - Call your local BRP dealership

503165100

$1.91

43

Hex. Flange Elastic Nut M5

233251414

Unavailable

44

Cam

503169000

Unavailable

45

Hex. Screw M6 X 25

207162544

Unavailable

46

Flat Washer 6 mm

234061410

Unavailable

47

Lower Arm Ass'y | Includes 57 - 58.

505070140

Unavailable

48

Bushing

505070025

Unavailable

49

Adjustable Arm Ass'y | Includes 49 - 51.

505070405

Unavailable

50

Bushing

505070143

Unavailable

51

CUSHION - Call your local BRP dealership

506149100

Unavailable

52

PROACTIVE CONTROL (GT ONLY) - Call your local BRP dealership | GT

505070232

Unavailable

53

Plate

506147900

Unavailable

54

WASHER - Call your local BRP dealership

506148100

Unavailable

55

Hex. Screw M10 x 85

207008544

Unavailable

56

Plate

506148300

Unavailable

57

Grease Fitting

408200700

Unavailable

58

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

59

Hex. Flange Elastic Nut M8

233281414

Unavailable

60

Loctite 271, 10 ml

293800005

Unavailable

61

HEX. SCREW M10 X 110 - Call your local BRP dealership

230001044

Unavailable

62

Socket Head Screw M5 x 25 (Europe) | 500 F.

250000015

Unavailable

63

Washer

503175800

$3.26

64

Flat Washer

399910100

Unavailable

65

Elastic Locking Nut M10 X 1.5

233601416

$1.68

66

Spring

505070153

Unavailable

67

Spring Stopper

706200881

$10.30

68

Hex. Screw M10 X 55

207005544

$1.85

69

Front Shock

505070171

Unavailable

70

Grease, Super Lube

293550030

Unavailable
