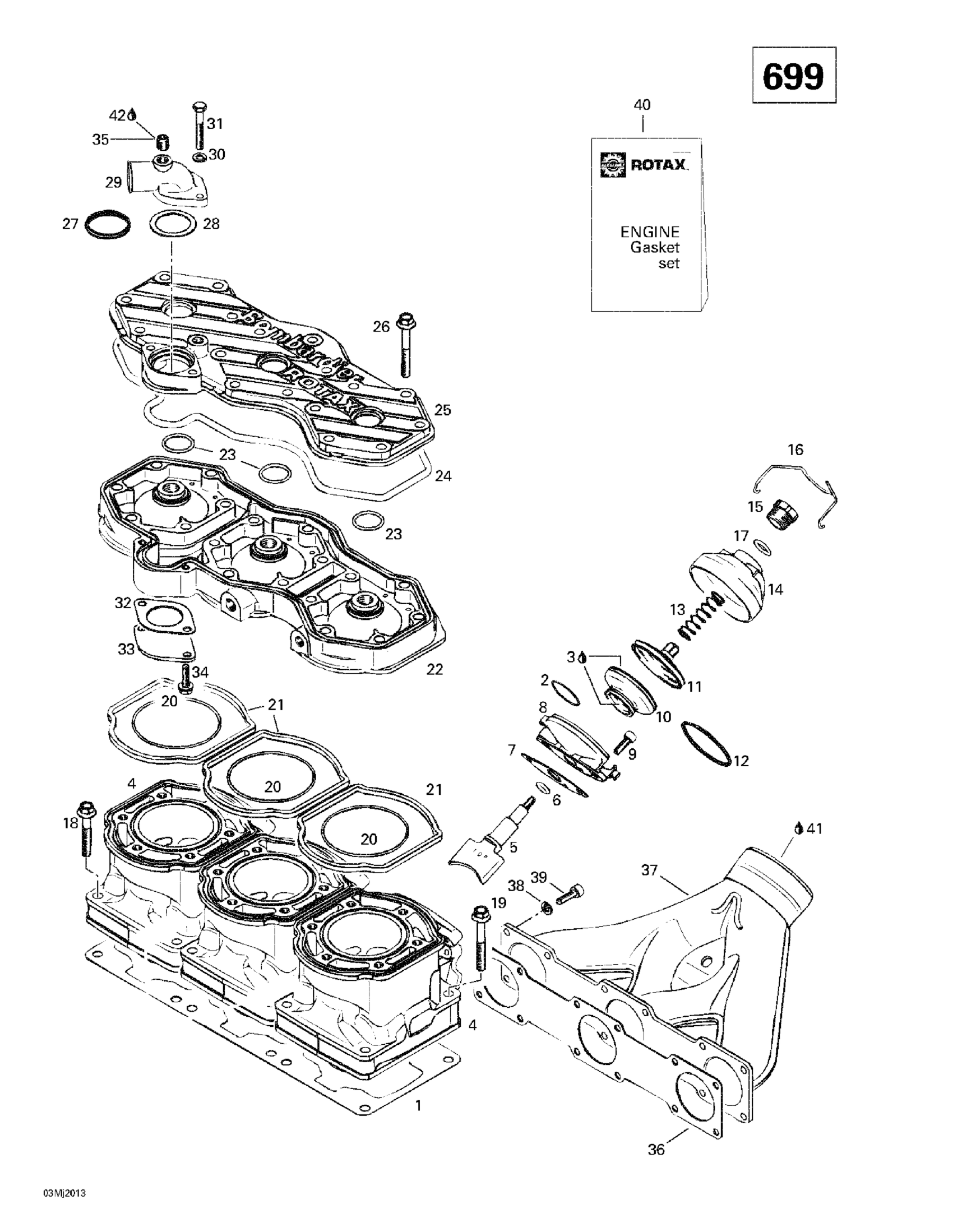

Ski-Doo Formula III 700 R, 2000 Cylinder, Exhaust Manifold Diagram

#

Description
Price

1

GASKET 0.6 MM - Call your local BRP dealership | Formula III 700 R.

420931572

Unavailable

GASKET 0.4 MM - Call your local BRP dealership | Formula III 700 R.

420931571

Unavailable

Gasket 0.3 mm | Formula III 700 R.

420931570

Unavailable

2

Hose Spring This part replaces 420838253.

420838255

$7.01

3

Dow Corning 111, 150 g

413707000

$59.99

4

CYLINDER (NICASIL COATED) - Call your local BRP dealership | Formula III 700 R.

420923420

Unavailable

4

REBUILD-CYLINDER NICASIL REP. 699 - Call your local BRP dealership

421000064

Unavailable

5

Exhaust Valve | Formula III 700 R.

420854307

Unavailable

6

O-Ring

420430110

$4.15

7

Gasket

420250239

$6.42

8

Valve Housing | Grand Touring 600.

420854265

Unavailable

9

Socket Head Screw M6 x 16

420241237

$2.12

10

Exhaust Bellows

420260723

$40.27

11

Exhaust Valve This part replaces 290253257.

420854449

$34.30

12

Hose Spring This part replaces 420239048.

420939281

$6.88

13

Spring

420239945

Unavailable

14

Valve Cover

420911552

$36.54

15

Adjuster Screw

420241221

$12.15

16

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

17

O-Ring

420430220

$7.79

18

Hex. Collar Screw M8 x 45

420640432

$1.88

19

Collar Hex. Screw M8 x 53.5

420640441

Unavailable

20

O-Ring | Grand Touring 500.

420831792

$14.90

21

SEAL RING - Call your local BRP dealership

420931320

Unavailable

22

Cylinder Head (Silver) | Formula III 700 R.

420923128

Unavailable

23

O-Ring

420430782

$5.06

24

O-Ring | Formula III 700 R.

420931330

Unavailable

25

Cylinder Head Cover (Silver) | Formula III 700 R.

420923134

Unavailable

26

Hex. Screw M8 X 56.5

420941627

$8.09

27

SEALING RING - Call your local BRP dealership

420931270

Unavailable

28

RETAINING DISK - Call your local BRP dealership

420927745

Unavailable

29

Exhaust Socket

420922485

Unavailable

30

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

31

Hex. Screw M6 X 40

207064044

$1.43

32

Gasket

420850338

$9.97

33

COVER - Call your local BRP dealership

420926260

$23.85

34

TAPTITE SCREW M6 X 16 - Call your local BRP dealership

420240580

Unavailable

35

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

36

GASKET - Call your local BRP dealership | Formula III 700 R.

420931740

Unavailable

37

Exhaust Socket | Formula III 700 R.

420979610

Unavailable

38

Lock Washer M6, Black

234161471

$0.51

39

Socket Head Screw M6 X 25

205062544

$1.01

40

Gasket Set | Formula III 700 R.

420886313

Unavailable

41

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

293800023

Unavailable

42

Loctite 243, 10 ml

293800060

$21.49
