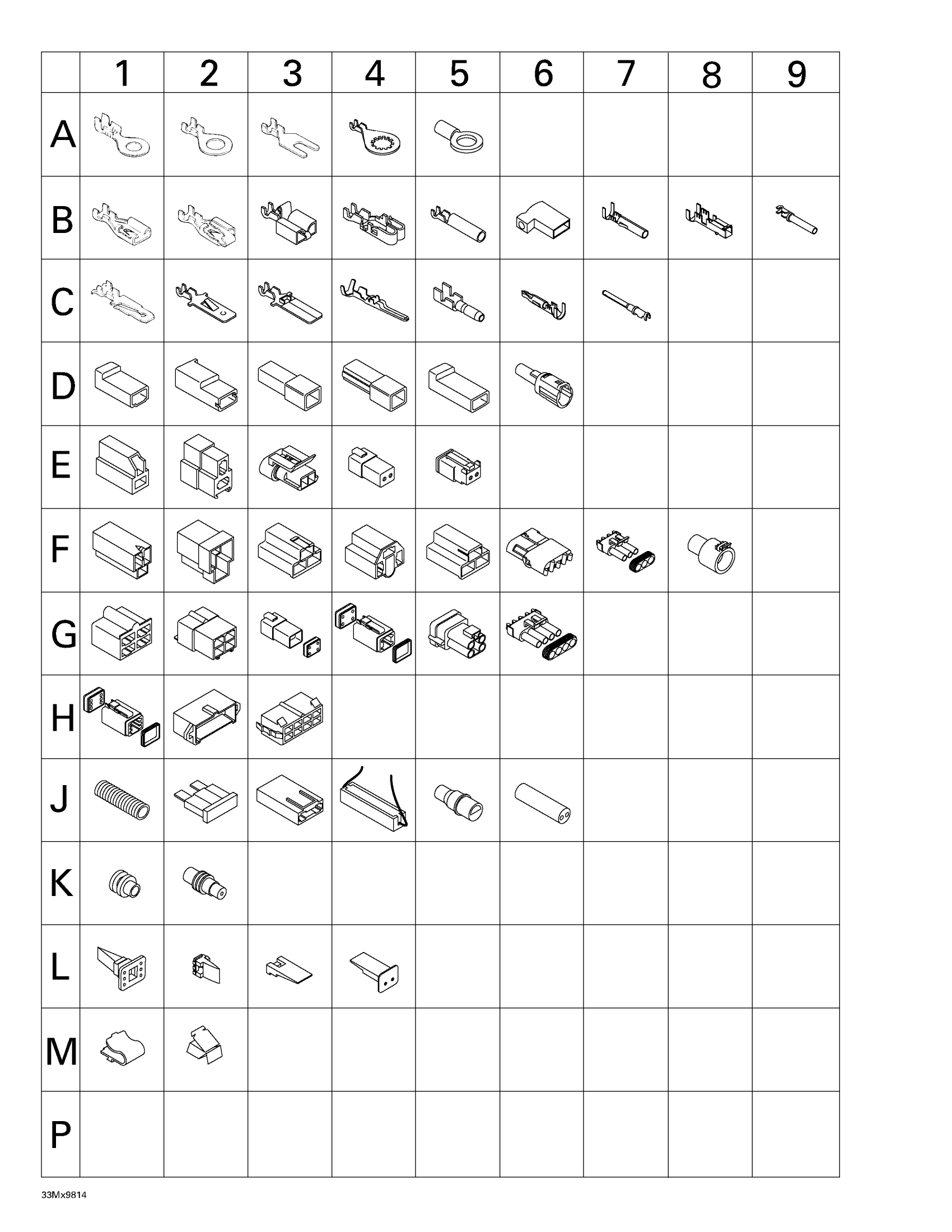

Ski-Doo Formula III 600 LT, 1998 Electrical Accessories Diagram
#
A1
Open Barrel
409012500
Unavailable
A1
Open Barrel Terminal
278001392
Unavailable
A2
Open Barrel | (16/14 gauge-5/16" stud)
561502700
Unavailable
A2
OPEN BARREL - Call your local BRP dealership
409003200
Unavailable
A3
Spade Terminal | (16/14 gauge-8 mm stud)
561503000
Unavailable
A4
Ring Terminal | (16/14 gauge-10 mm stud)
409001800
Unavailable
B1
Female Terminal
561503100
Unavailable
B1
Female Terminal
561503100
Unavailable
B2
Female Terminal (18/16 gauge)
409205100
Unavailable
B2
Female Terminal PACKARD
561503200
Unavailable
B2
Female Terminal (16/14 gauge)
561503800
Unavailable
B4
Female Terminal
409003600
Unavailable
B5
Female Terminal | DS 650 X
278001009
Unavailable
B7
Female Terminal
278000223
Unavailable
B9
Female Terminal
278000632
Unavailable
C1
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
C1
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
C2
Male Terminal
409201000
Unavailable
C3
Male Terminal
409010900
Unavailable
C5
Male Terminal
278000230
Unavailable
D1
Female Terminal Housing (1 circuit)
409204800
Unavailable
D3
Male Connector Housing (Single)
409204700
Unavailable
D4
Male Connector Housing (Single)
409201300
Unavailable
D5
Female Connector Housing (Single)
409201200
Unavailable
D6
Male Connector Housing (1 Circuit)
409208800
Unavailable
E1
FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership
409204600
Unavailable
E2
MALE HOUSING - Call your local BRP dealership
409204500
Unavailable
E4
Male Housing, 2 Circuits
409206900
Unavailable
F1
Female Housing
409204300
Unavailable
F3
Female Terminal Housing (3 circuits)
409008500
Unavailable
F4
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
409202700
Unavailable
F5
Male Terminal Housing (3 circuits)
409008600
Unavailable
F6
Female Terminal Housing, 3 Circuits | XT Models
278000281
Unavailable
F6
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership
278000394
Unavailable
F7
Male Housing, 3 Circuits
278000273
Unavailable
G1
FEMALE HOUSING - Call your local BRP dealership
409204900
Unavailable
G2
MALE HOUSING - Call your local BRP dealership
409209300
Unavailable
G5
Male Terminal Housing (4 circuits)
409207700
Unavailable
G6
Male Housing, 4 Circuits
278000395
Unavailable
H2
Male Connector Housing (8)
572151500
Unavailable
H3
Female Connector Housing (8)
572151200
Unavailable
J1
Was 409901700 Tubing (9 mm)
219704399
Unavailable
J1
Was 409901800 Tubing (13 mm)
219704400
Unavailable
J1
Tubing 10 MM 1000MM Long
219704407
Unavailable
J1
Tubing | Formula S.
410112800
Unavailable
J1
Tubing (Meter)
410112900
Unavailable
J1
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
J3
Fuse Holder
409004000
Unavailable
J4
Resistance
515175241
Unavailable
J5
Insulated Sheath
278001008
Unavailable
J6
Insulated Sheath
278001007
Unavailable
K1
SEAL - Call your local BRP dealership
409208500
Unavailable
K1
Seal
409012300
Unavailable
K1
Wire Seal
278000218
Unavailable
K1
Seal
409208300
Unavailable
K2
Wire Seal
278000216
Unavailable
L3
Male Lock
409013100
Unavailable
L4
FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership
409207100
Unavailable
