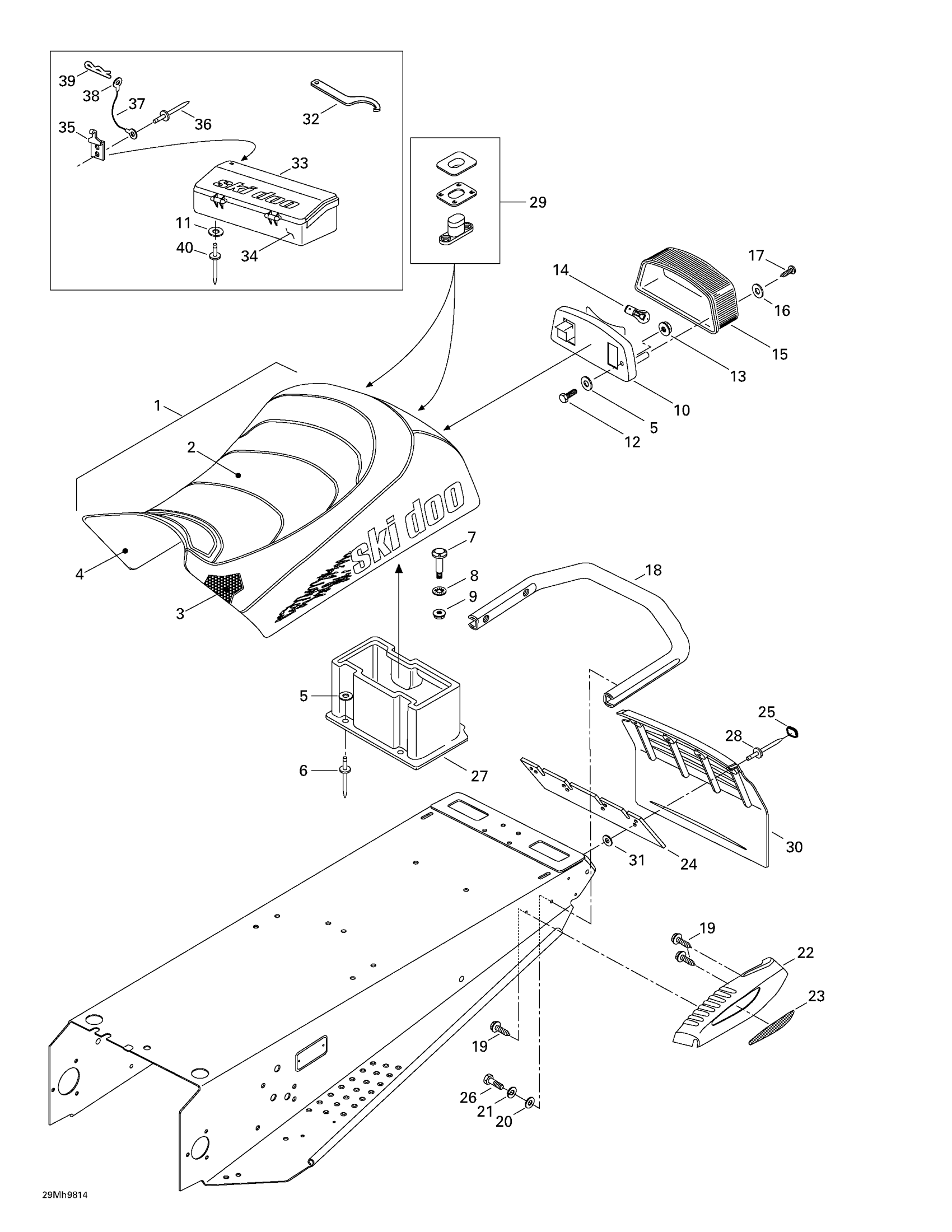

Ski-Doo Formula III 600 LT, 1998 Seat And Accessories Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Seat Cover (1 pass.)

415066503

Unavailable

3

Foam Seat

415046302

Unavailable

4

Sub-Seat

572088200

Unavailable

5

WASHER - Call your local BRP dealership | MX Z X 600RS

517297900

Unavailable

6

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

7

«T» Bolt

732601221

Unavailable

8

Push Nut

732610072

Unavailable

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

10

LIGHT HOUSING - Call your local BRP dealership

510004061

Unavailable

11

Washer

517124300

Unavailable

12

Hex. Screw M5 X 30

207053044

Unavailable

13

Hex. Flange Elastic Nut M5

233251414

Unavailable

14

Bulb

520000758

$7.49

15

Lens

414513700

Unavailable

16

Washer - Call your local BRP dealership

414516400

Unavailable

17

Phillips Tapping Screw M3.9 X 25

209632540

Unavailable

18

REAR BUMPER - Call your local BRP dealership

518314000

Unavailable

19

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

20

Flat Washer 8 mm

234081410

Unavailable

21

Lock Washer 8 mm

234181401

Unavailable

22

RH Moulding Ass'y | Includes 22 - 23. Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.

520000024

Unavailable

LH Moulding Ass'y | Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.

520000025

Unavailable

RH Moulding Ass'y (Europe) | Formula III 600.

520000026

Unavailable

LH Moulding Ass'y (Europe) | Formula III 600.

520000027

Unavailable

RH Moulding Ass'y | Formula III 600 LT.

520000028

Unavailable

LH Moulding Ass'y | Formula III 600 LT.

520000029

Unavailable

23

RH Red Reflector

415056000

Unavailable

LH Red Reflector

415056001

Unavailable

RH Amber Reflector (Europe) | Formula III 600.

415099700

Unavailable

LH Amber Reflector (Europe) | Formula III 600.

415099701

Unavailable

24

REINFORCEMENT - Call your local BRP dealership

572108200

Unavailable

25

Cap

415073300

Unavailable

26

Hex. Screw M8 X 20

207182044

$0.61

27

Rear Trunk

572039802

Unavailable

28

Pop Rivet 3/16"

293150100

$1.08

29

SEAT BUCKLE - Call your local BRP dealership

414728000

Unavailable

30

SNOW GUARD - Call your local BRP dealership

572092100

Unavailable

Snow Guard

572103804

Unavailable

31

Flat Washer

517225900

$0.17

32

ADJUSTER WRENCH (SUSPENSION) - Call your local BRP dealership

529034100

Unavailable

Wrench-Adjuster | Formula III 600 LT. Formula III 700. Formula III 700 R.

529030700

Unavailable

33

Tool Box Ass'y

572092400

Unavailable

34

Tool Kit (Not Shown)

529032000

Unavailable

35

Latch

517168500

Unavailable

36

Pop Rivet 5/32

390403000

Unavailable

37

Wire

414407400

Unavailable

38

Terminal Ring

561502800

Unavailable

39

HAIR PIN - Call your local BRP dealership

414112400

Unavailable

40

Pop Rivet 3/16" | DS 650 X

293150104

$1.49
