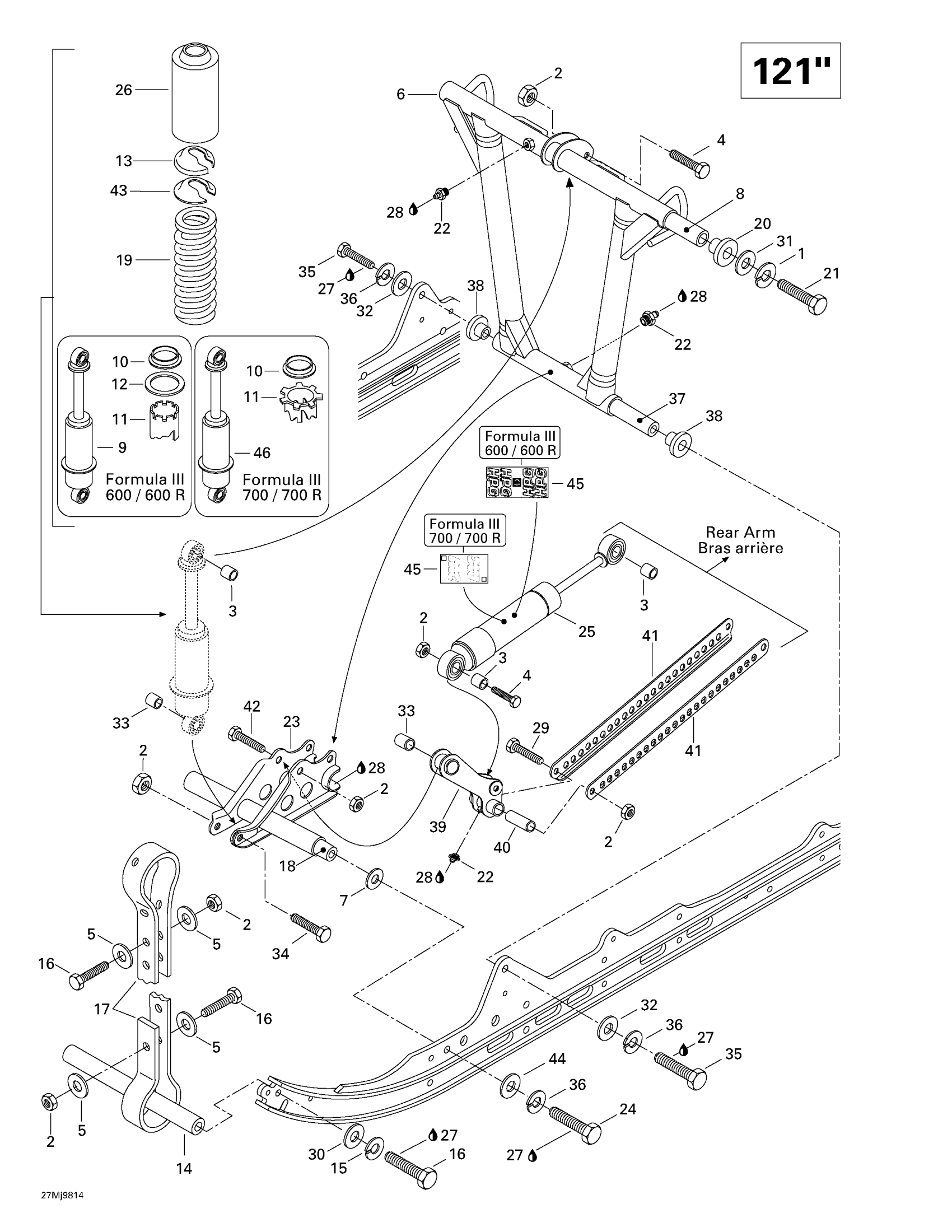

Ski-Doo Formula III 600 LT, 1998 Front Arm, Rear Suspension (121’’) Diagram

#

Description
Price

1

Helicoidal Lock Washer M10 | XT Models

234101601

$1.06

2

Hex. Elastic Stop Nut M8

232581414

$0.54

3

Bushing

414936000

$11.21

4

Hex. Screw M8 X 40

207084044

$1.06

5

WASHER - Call your local BRP dealership

517078700

Unavailable

6

Welded Front Arm | Formula Z 583. Formula 583 Deluxe.

503176000

Unavailable

7

Hardened Washer

503175400

Unavailable

8

SHAFT - Call your local BRP dealership

503190387

Unavailable

9

Shock

415033500

Unavailable

10

Spring Guide

415052800

Unavailable

GUIDE_SPRING - Call your local BRP dealership

503165100

Unavailable

11

Cam | Formula III 600.

415052700

Unavailable

Cam

503169000

Unavailable

12

Thrust Washer

415052900

Unavailable

13

Spring Stopper

706200881

$11.82

14

Axle

503151600

$14.90

15

Lock Washer 8 mm

234181401

$0.87

16

Hex. Screw M8 X 30

207183044

$1.06

17

Stopper Strap | Formula Z 583. Formula 583 Deluxe.

570038800

Unavailable

18

Lower Axle

503174800

Unavailable

19

Spring | Touring 500 F.

415103600

Unavailable

20

Bushing

503189324

$10.84

21

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

22

Grease Fitting

408200700

$3.21

23

Welded Shock Support | Formula Z 583. Formula 583 Deluxe.

503182800

Unavailable

24

SCREW-HEX.CAP M12 X 35 - Call your local BRP dealership

222023565

Unavailable

25

Shock | Formula III 600.

415101800

Unavailable

Shock | Includes 24 - 26.

415101900

Unavailable

26

Protector

503193663

$34.30

27

Loctite 271, 10 ml

293800005

$23.85

28

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

29

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

30

Flat Washer 8 mm

234081410

$0.79

31

Flat Washer 10 mm

234001410

$1.12

32

Flat Washer 12 mm

234021410

$0.66

33

Cushion

414917900

Unavailable

34

Hex. Screw M8 X 55

207085544

$1.57

35

Hex. Screw M12 x 60 | Formula Deluxe 500 LC. Formula Deluxe 583.

222026065

Unavailable

36

Lock Washer 12 mm

224721218

Unavailable

37

Shaft

503182000

Unavailable

38

Cushion | Formula Z 583. Formula 583 Deluxe.

415026300

Unavailable

39

Lever

503158500

Unavailable

40

Tie Rod Shaft

503158600

Unavailable

41

Tie Rod | Formula Z 583. Formula 583 Deluxe.

503158700

Unavailable

42

Hex. Screw M8 X 50

207085044

$1.43

43

Cap

706200785

$4.28

44

Flat Washer 12 mm

234021410

$0.66

45

HPG Decal | Formula III 600. Formula III 600 R.

414871400

Unavailable

Shock Decal

418001500

Unavailable

46

Shock

415101700

Unavailable

47

BUSHING (NOT SHOWN) - Call your local BRP dealership

503189649

Unavailable

48

Bushing

503189363

Unavailable
