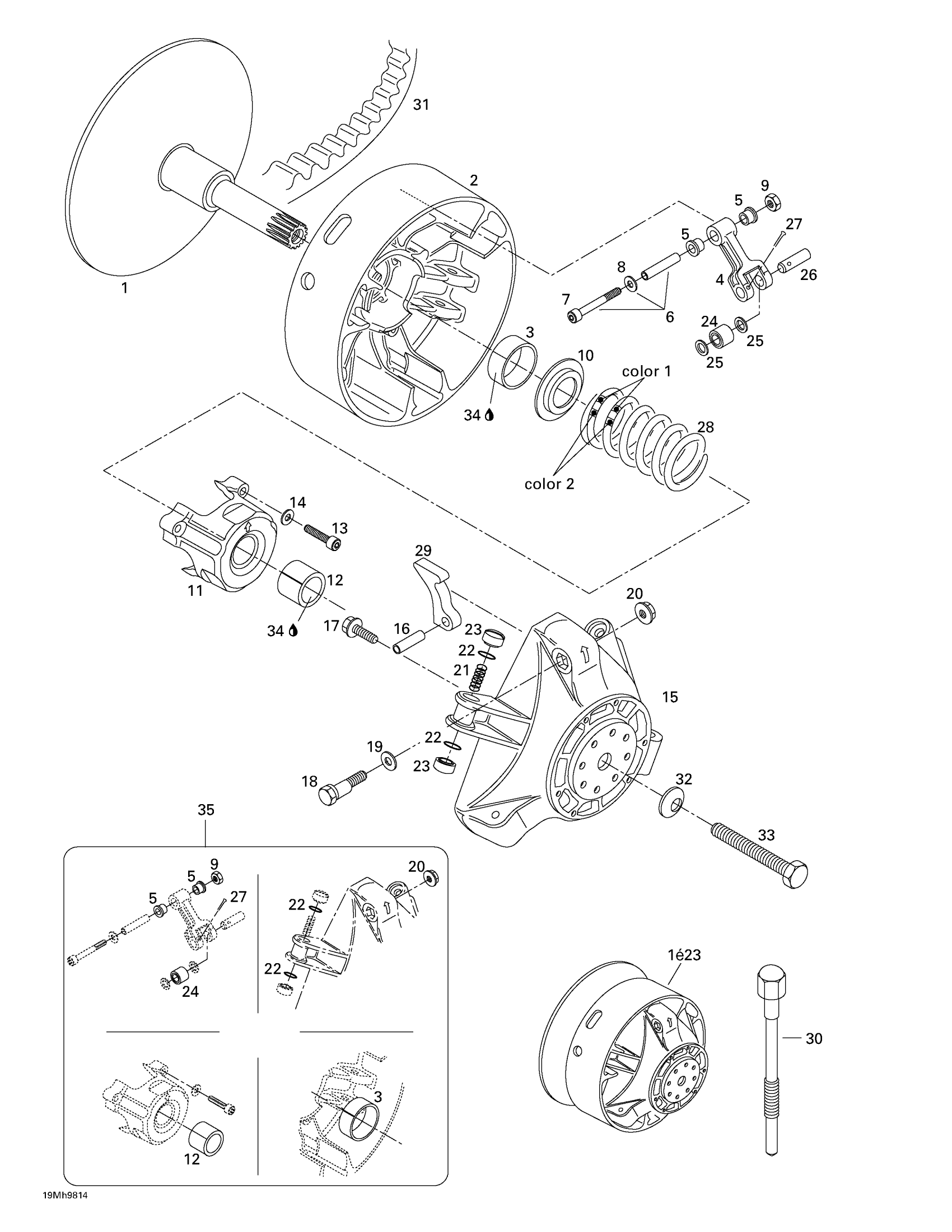

Ski-Doo Formula III 600 LT, 1998 Drive Pulley Diagram
#
Description
Price
1
Drive Pulley Ass'y | Includes 1 - 23.
417221600
Unavailable
1
Fixed Flange
417222411
Unavailable
2
SLINDING FLANGE - Call your local BRP dealership | Formula Z 583. Formula Z 670.
417003703
Unavailable
3
Bushing
417004201
Unavailable
4
LEVER ASS'Y - Call your local BRP dealership | Includes 4 - 5.
417003801
Unavailable
5
Bushing
417004305
Unavailable
6
SCREW ASSY - Call your local BRP dealership | Includes 12 to 13
417004800
Unavailable
8
Flat Washer 6 mm
234061410
Unavailable
9
Elastic Stop Nut M6
232561414
Unavailable
10
Spring Seat
417005000
Unavailable
11
Spring Cover Ass'y | Includes 9 - 10.
417004000
Unavailable
12
Bushing
417004501
Unavailable
13
Allen Screw M6 x 40
222964066
Unavailable
14
WASHER - Call your local BRP dealership
420245370
Unavailable
15
Governor Cup
417222005
Unavailable
16
Pin M8 X 24
732804009
Unavailable
17
Hex. Locking Screw M6 x 18 | Formula Deluxe 500.
732601249
Unavailable
18
CALIBRATION SCREW - Call your local BRP dealership
417222955
Unavailable
20
Hex. Flange Nut M6
233061414
Unavailable
21
Spring
417005700
Unavailable
26
Pin
417004308
Unavailable
SPRING (GREEN/BLUE) - Call your local BRP dealership
414768200
Unavailable
29
Ramp (285) | Grand Touring 583.
417005285
Unavailable
Ramp (286) | Formula DLX 500 LC.
417005286
Unavailable
30
Puller This part replaces 529022400.
529000064
Unavailable
31
BELT_DRIVE - Call your local BRP dealership This part replaces 415045000.
417300069
Unavailable
32
Spring Washer 14 mm
250200006
Unavailable
35
Clutch Repair Kit
417006100
Unavailable
