1998 Ski-Doo Formula Iii 600 LT Cooling System Diagram

← All diagrams

Find the part on the Cooling System diagram for your 1998 Ski-Doo Formula Iii 600 LT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

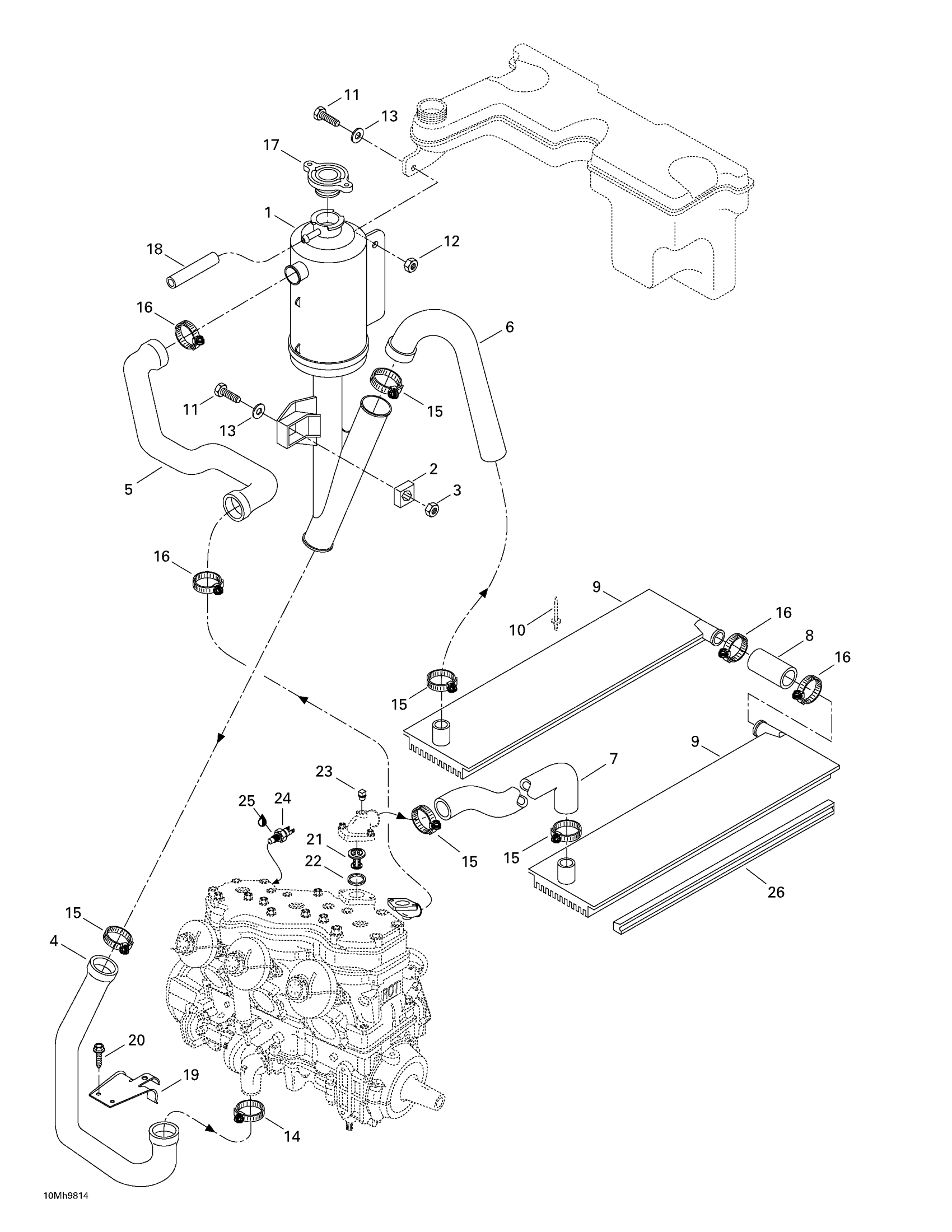

1998 Ski-Doo Formula Iii 600 LT Cooling System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Coolant Tank Ass'y | Includes 1 - 2.

572088600

—
Out of stock

2

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

1
Out of stock

3

Hex. Nut M6

232061600

1
Out of stock

4

Engine Inlet Hose

415046700

—
Out of stock

5

Engine Outlet Hose

415046800

—
Out of stock

6

Radiator Outlet Hose

415047000

—
Out of stock

7

RADIATOR INLET HOSE - Call your local BRP dealership

415047100

—
Out of stock

8

Radiator Hose

414795800

—
Out of stock

9

RH Radiator

517280510

—
Out of stock

RH Radiator | Formula III 600 LT.

517290710

—
Out of stock

LH Radiator

517280511

—
Out of stock

LH Radiator | Formula III 600 LT.

517290711

—
Out of stock

10

Not Available As Spare Part - Friction Washer

—
Out of stock

11

Hex. Screw M6 X 25

207162544

2
Out of stock

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

1
Out of stock

13

Flat Washer

224061121

2
Out of stock

14

Not Available As Spare Part - Friction Washer

—
Out of stock

15

TRIDON GEAR CLAMP - Call your local BRP dealership

408800400

—
Out of stock

16

Clamp Tridon

408803400

—
Out of stock

17

Pressure Cap

509000187

1
Out of stock

18

Polyurethane Hose 10000Mm Long

219704410

1
Out of stock

19

Hose Protector

517294200

—
Out of stock

20

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

—
Out of stock

21

Thermostat This part replaces 414834100.

420922519

1
Out of stock

22

SEALING RING - Call your local BRP dealership

420931270

—
Out of stock

23

PLUG SCREW - Call your local BRP dealership

420240480

—
Out of stock

24

Temperature Sensor | Formula Deluxe 600. Formula Deluxe 700.

414728700

—
Out of stock

25

Was 293800018 Loctite 592, 50 ml | Package T

219704455

1
Out of stock

26

Radiator Protector

415056500

—
Out of stock

RADIATOR PROTECTOR - Call your local BRP dealership | Formula III 600 LT.

415012300

—
Out of stock
