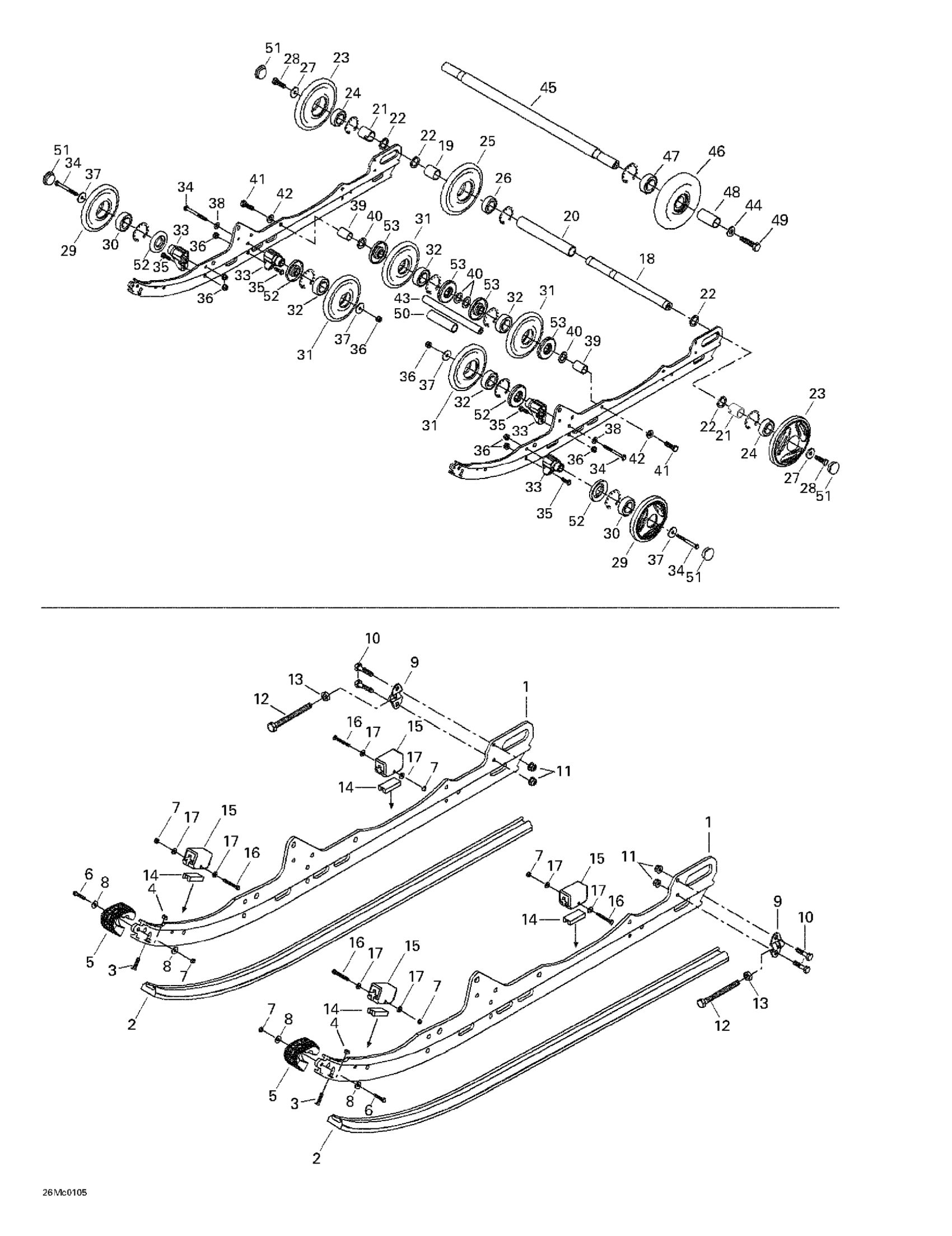

Ski-Doo Formula Deluxe 500 F, 2001 Rear Suspension Diagram

#

Description
Price

1

Runner

503188931

Unavailable

2

Runner Shoe

560103300

$27.66

3

Phillips Screw M6 X 25

208562560

$1.92

4

Elastic Stop Nut M6

232561414

$1.55

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

7

Elastic Stop Nut M5

232551414

$0.72

8

Washer | DS 650 X

391301600

$0.48

9

Tensioner

503155300

Unavailable

10

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

12

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

13

Elastic Locking Nut M10 X 1.5

233601416

$1.68

14

Reinforcement Stopper

572084800

$5.25

15

Rubber Stopper

570063000

Unavailable

16

HEX. SCREW M5 X 40 - Call your local BRP dealership

207054044

Unavailable

17

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

18

Rear Axle

503167900

$129.20

19

Inner Spacer

503182900

$10.18

20

CENTRAL SPACER - Call your local BRP dealership

503183000

Unavailable

21

Outer Spacer

503189809

$15.35

22

Washer

503180400

$3.37

23

Wheel 165 mm Yellow

503190817

$49.97

Wheel 165 mm

503190856

$49.97

24

Ball Bearing

293350115

$11.15

25

Wheel 165" | Includes 670 to 670b

503194127

$49.97

26

Ball Bearing

293350115

$11.15

27

Washer

503183300

$5.68

28

Hex. Screw With Nylon

250000019

$1.42

29

Wheel 135, Yellow

503190785

$32.28

Wheel 135 | Includes 18 to 19

503190797

$32.28

30

Ball Bearing

293350115

$11.15

31

Wheel 135

503191029

$32.28

32

Ball Bearing

293350115

$11.15

33

SUPPORT - Call your local BRP dealership

503190389

Unavailable

34

Hex. Screw M8 X 80

207088044

$1.58

35

Hex. Screw M8 X 25

207182544

$0.74

36

Hex. Flange Elastic Nut M8

233281414

$1.14

37

Washer

503183100

$3.08

38

Flat Washer 8 mm

234081410

$0.69

39

SPACER - Call your local BRP dealership

503188800

Unavailable

40

WASHER - Call your local BRP dealership

503154000

Unavailable

41

Hex. Screw M10 x 35 (Scotch Grip)

207303544

$1.65

42

Washer

732900049

$0.57

43

WHEEL AXLE - Call your local BRP dealership

503188700

Unavailable

44

Washer

503189157

$3.20

45

Wheel Support Axle

503153600

Unavailable

46

Idler Wheel | Includes 48 - 49.

572043500

$32.28

47

Ball Bearing

405404600

$24.58

48

Spacer

572048300

Unavailable

49

HEX. SCREW M8 X 30, SCOTCH GRIP - Call your local BRP dealership

207383044

Unavailable

50

Spacer

503153100

Unavailable

51

Wheel Cap

570063600

$3.28

52

LABYRINTH SEAL - Call your local BRP dealership

572089000

Unavailable

53

Labyrinth Shaft

503189314

Unavailable
