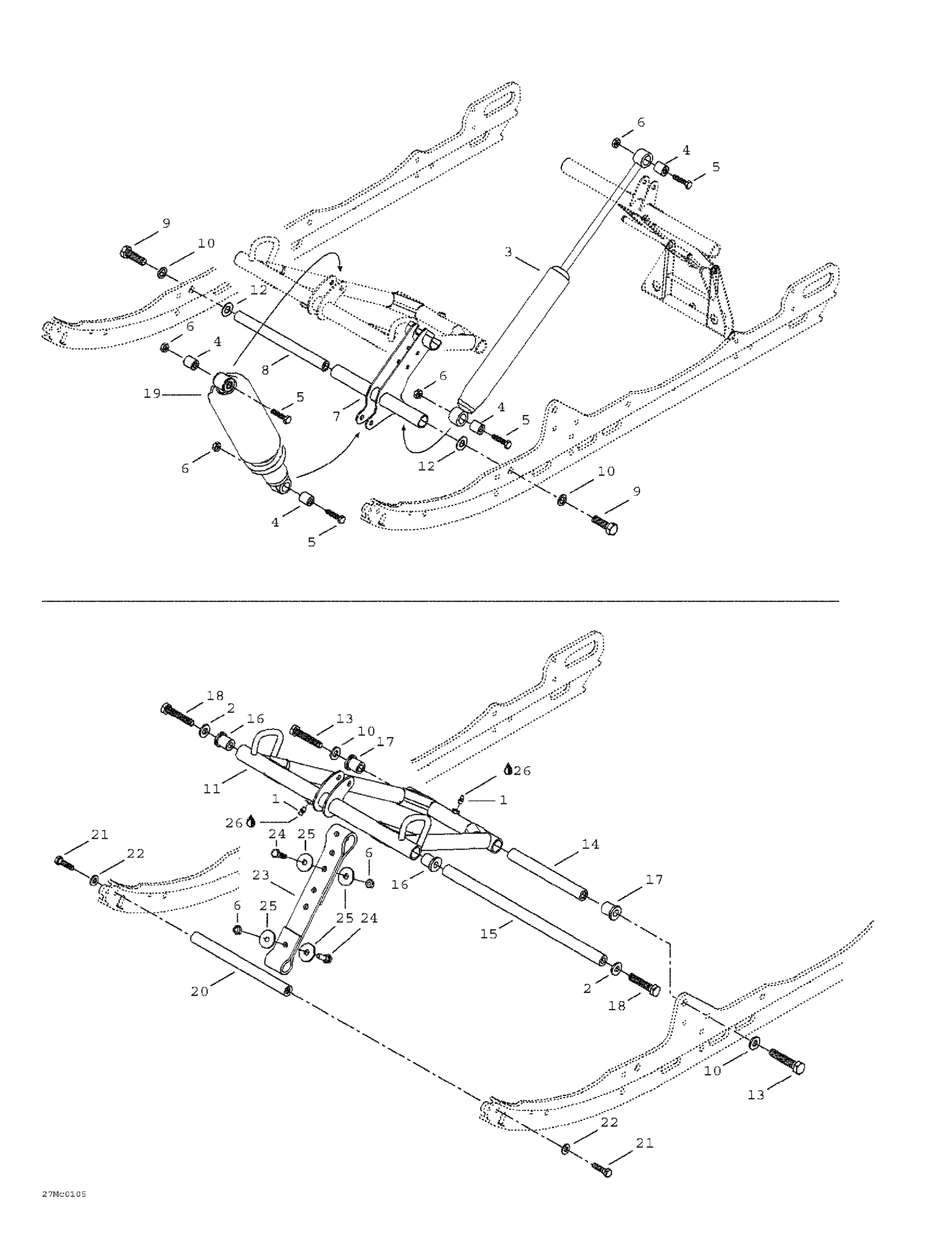

Ski-Doo Formula Deluxe 500 F, 2001 Front Arm Diagram

#

Description
Price

1

Grease Fitting

408200700

Unavailable

2

Washer

732900049

Unavailable

3

Shock

503188973

Unavailable

4

Bushing

414936000

Unavailable

5

Hex. Screw M8 X 40

207084044

Unavailable

6

Hex. Elastic Stop Nut M8

232581414

Unavailable

7

Welded Shock Support

503182100

Unavailable

8

Lower Axle

503174800

Unavailable

9

Hex. Screw M12 x 35 (Scotch Grip)

207323544

Unavailable

10

Washer

503189276

Unavailable

11

Welded Front Arm

503189311

Unavailable

12

Hardened Washer

503175400

Unavailable

13

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

14

SHAFT - Call your local BRP dealership

503189313

Unavailable

15

SHAFT - Call your local BRP dealership

503190387

Unavailable

16

Bushing

503189324

$11.17

17

CUSHION - Call your local BRP dealership

503189323

Unavailable

18

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

Unavailable

19

SHOCK - Call your local BRP dealership

503189331

Unavailable

20

Axle

503151600

$15.35

21

HEX. SCREW M8 X 30, SCOTCH GRIP - Call your local BRP dealership

207383044

Unavailable

22

Washer

503189157

$3.20

23

STOPPER STRAP - Call your local BRP dealership

503190782

Unavailable

24

Hex. Screw M8 X 25

207182544

Unavailable

25

Flat Washer

224081301

$0.86

26

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
