Front Suspension And Ski

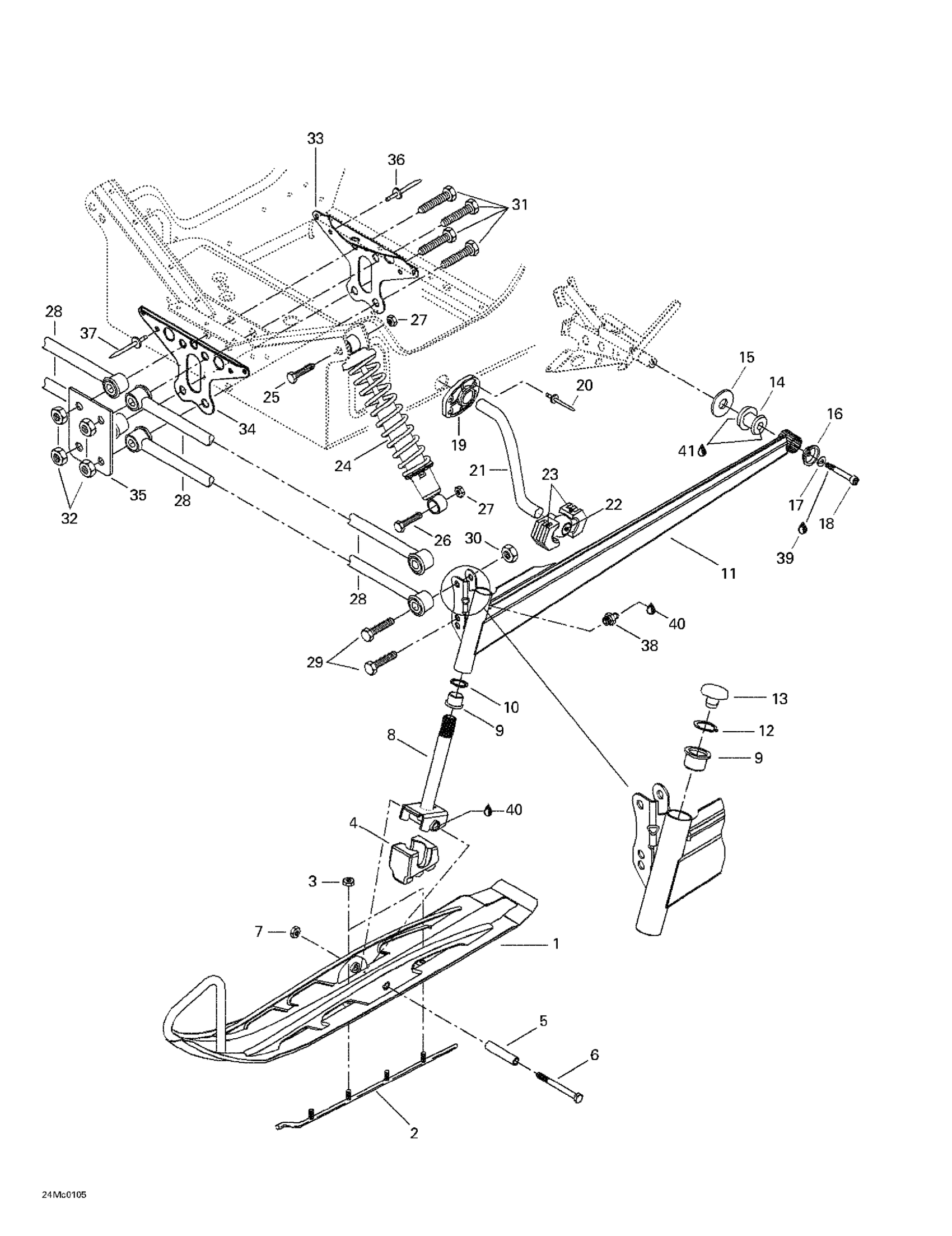

Ski-Doo Formula Deluxe 500 F, 2001 Front Suspension And Ski Diagram
#
1
Ski
505070325
Unavailable
2
Carbide Runner Kit | Includes 5 to 6, US/CAN
860502300
Unavailable
3
Hex. Elastic Stop Nut M8
232581414
Unavailable
4
Ski Stopper
505070324
Unavailable
5
Spacer
505070323
Unavailable
6
HEX. SCREW M10 X 110 - Call your local BRP dealership
250000001
Unavailable
8
Ski Leg
505070321
Unavailable
9
Cushion
505070003
Unavailable
10
WASHER - Call your local BRP dealership
505070004
Unavailable
11
RH Swing Arm
505070633
Unavailable
LH Swing Arm
505070634
Unavailable
12
CIRCLIP - Call your local BRP dealership
371910400
Unavailable
14
DAMPER - Call your local BRP dealership
570062200
Unavailable
16
Cup | Package Hunter
705007171
Unavailable
17
Lock Washer 8 mm
234181401
Unavailable
18
Socket Head Screw M8 X 25
205082544
Unavailable
19
Bushing | 550F
505070191
Unavailable
20
Pop Rivet 3/16"
390402300
Unavailable
21
Stabilisator
506134100
Unavailable
22
Ball Joint
506127300
Unavailable
23
Block Sliding
572069800
Unavailable
24
Shock
505070396
Unavailable
25
HEX. SCREW M10 X 60 - Call your local BRP dealership
207006044
Unavailable
28
Arm Ass'y (42")
580649700
Unavailable
29
Hex. Screw M12 x 50
207025044
Unavailable
30
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership
232521414
Unavailable
31
Hex. Screw M12 x 100
230020044
Unavailable
32
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership
232521414
Unavailable
33
Rear Link Plate
517254900
Unavailable
34
Front Link Plate
517254800
Unavailable
35
Support
518306700
Unavailable
36
Avex Rivet
390909200
Unavailable
37
Rivet pop 1/4"
390404900
Unavailable
38
Grease Fitting
408200700
Unavailable
40
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
41
Grease, Super Lube
293550030
Unavailable
