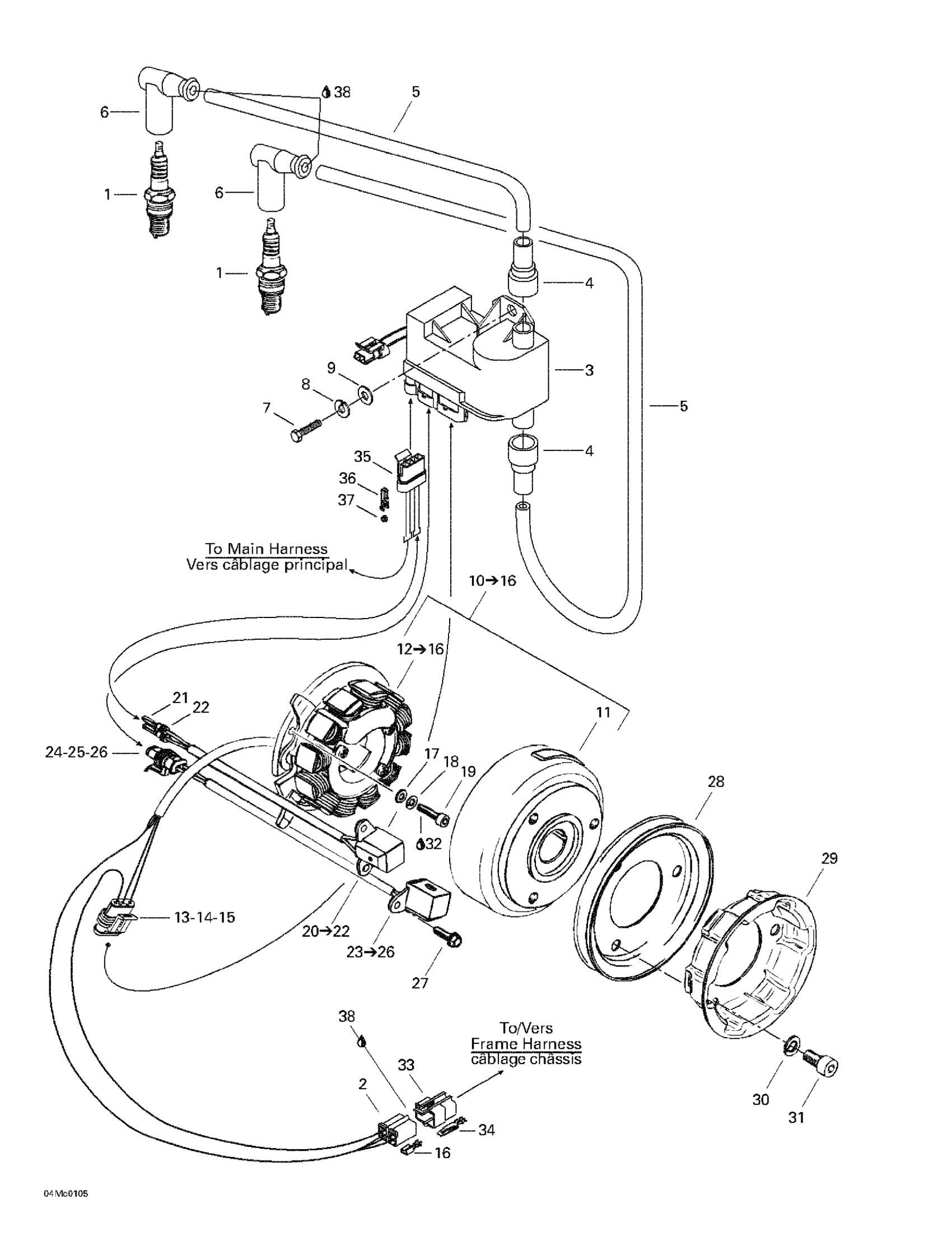

Ski-Doo Formula Deluxe 500 F, 2001 Magneto Diagram
#
1
Spark Plug NGK BR9ES This part replaces 414961100.
219703120
Unavailable
2
FEMALE HOUSING - Call your local BRP dealership
409204900
Unavailable
3
Calibration Module | Includes 3 - 6. MX Z 440 F.
512059169
Unavailable
Calibration Module | MX Z 500 F. Formula DLX 500 F.
515175386
Unavailable
4
PROTECTION CAP - Call your local BRP dealership
515174900
Unavailable
5
SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.
278002198
Unavailable
6
SPARK PLUG CAP - Call your local BRP dealership
278000237
Unavailable
7
Hex. Screw M6 X 16
207161644
Unavailable
9
Flat Washer 6 mm
234061410
Unavailable
10
Ducati Magneto | Includes 1 to 2
420887654
Unavailable
12
STATOR PLATE A - Call your local BRP dealership
420886603
Unavailable
13
Female Housing, 3 Circuits
409209600
Unavailable
14
Female Terminal
278001014
Unavailable
15
Wire Seal
278001013
Unavailable
16
FEMALE TERMINAL - Call your local BRP dealership
515175253
Unavailable
17
Washer 5.3
420927574
Unavailable
18
Lock Washer
420945750
Unavailable
19
SOCKET HEAD SCREW M5 X 18 - Call your local BRP dealership
420840515
Unavailable
20
Pick-Up
420665163
Unavailable
21
Female Terminal
278001014
Unavailable
22
Wire Seal
278001013
Unavailable
23
PICK-UP - Call your local BRP dealership
420665160
Unavailable
25
Female Terminal
278001014
Unavailable
26
Wire Seal
278001013
Unavailable
27
Taptite Screw M5 X 16
420941928
Unavailable
28
V-Belt Pulley
420980486
Unavailable
29
Rope Sheave
420852414
Unavailable
30
Lock Washer
420845311
Unavailable
31
SOCKET HEAD SCREW M8 X 12 - Call your local BRP dealership
420841522
Unavailable
33
MALE HOUSING - Call your local BRP dealership
409209300
Unavailable
34
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
35
Female Housing, 4 Circuits
409209700
Unavailable
36
Female Terminal
278001014
Unavailable
37
Wire Seal
278001013
Unavailable
38
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
