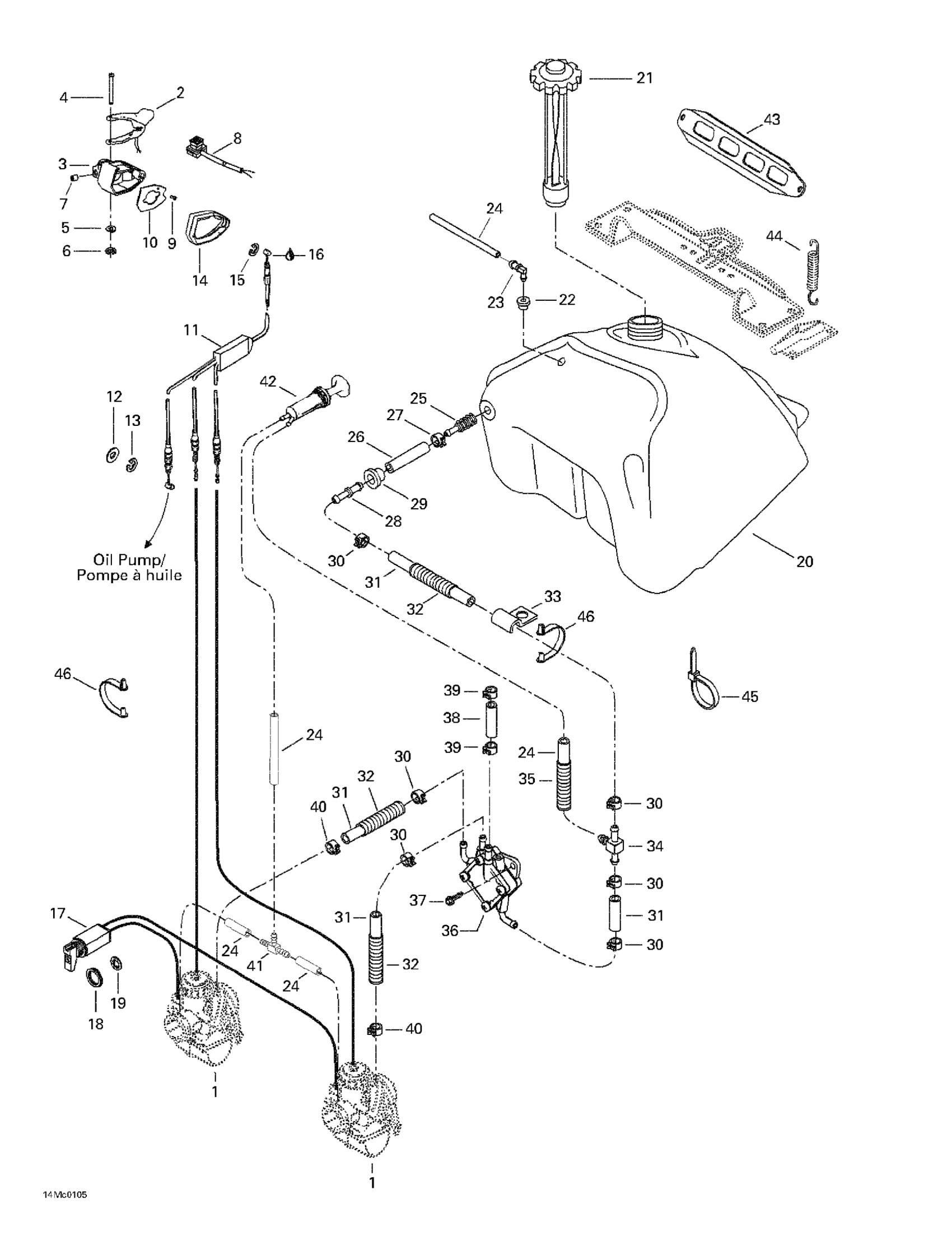

Ski-Doo Formula Deluxe 500 F, 2001 Fuel System Diagram

#

Description
Price

1

Carburetor VM 34 547 (PTO) | Includes 1 - 36. MX Z 440 F.

403138601

Unavailable

Carburetor VM 34 548 (MAG) | MX Z 440 F.

403138602

Unavailable

Carburetor VM 34 549 (PTO) | MX Z 500 F. Formula DLX 500 F.

403138603

Unavailable

Carburetor VM 34 550 (MAG) | MX Z 500 F. Formula DLX 500 F.

403138604

Unavailable

2

Handle Ass'y

512060214

Unavailable

3

Throttle Housing

512060603

$10.57

4

Lever Pin

414438700

$11.14

5

Flat Washer M5, Stainless

234051600

$0.64

6

Circlip | Model-RS

414439000

Unavailable

7

Socket Set Screw M8 X 10

414440800

$4.00

8

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.58

9

Screw

414473200

$3.69

10

Plate

512060390

$9.31

11

THROTTLE CABLE AND HOUSING - Call your local BRP dealership

414883100

Unavailable

12

Flat Washer 8 mm, Nylon

234081100

$1.00

13

Circlip

414753500

$0.59

14

THROTTLE COVER - Call your local BRP dealership

572044600

Unavailable

15

Circlip

414274500

Unavailable

16

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

17

CHOKE CABLE - Call your local BRP dealership

414967000

Unavailable

18

NUT-PLASTIC - Call your local BRP dealership

512059364

Unavailable

19

Lock Washer, Interior Teeth

394103300

Unavailable

20

Fuel Tank

572108900

Unavailable

21

Fuel Tank Cap

572161200

Unavailable

22

Grommet

709200285

$8.38

23

Male Connector

414814100

$2.18

24

Was 415080100 Fuel Line Primer 3,2mm

219704409

Unavailable

25

Fuel Filter

414865700

$8.39

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Clamp

513033011

Unavailable

28

Male Connector

414518500

$3.50

29

Grommet

570045500

Unavailable

30

Spring Clamp

414554800

$0.83

31

Polyurethane Hose 10000Mm Long

219704410

Unavailable

32

Tubing 10 MM 1000MM Long

219704407

Unavailable

33

CLIP - Call your local BRP dealership

415018200

$2.89

34

T-fitting

414222500

$1.33

35

Tubing 6 Mm 3000Mm Long

219704425

$13.14

36

Fuel Pump

403801000

Unavailable

37

Hex. Flange Screw M6 X 16

210261650

$1.22

38

Hose

219704549

Unavailable

39

Spring Clamp

414415200

$0.83

40

Spring Clamp

414420700

Unavailable

41

T-Fitting

414222400

Unavailable

42

Primer

415060500

Unavailable

43

Fuel Tank Bracket

517249200

Unavailable

44

SPRING - Call your local BRP dealership

517182100

Unavailable

45

Tie-Rap 180 mm

414115200

$0.09

46

CABLE CLIP - Call your local BRP dealership

414379300

$4.58
