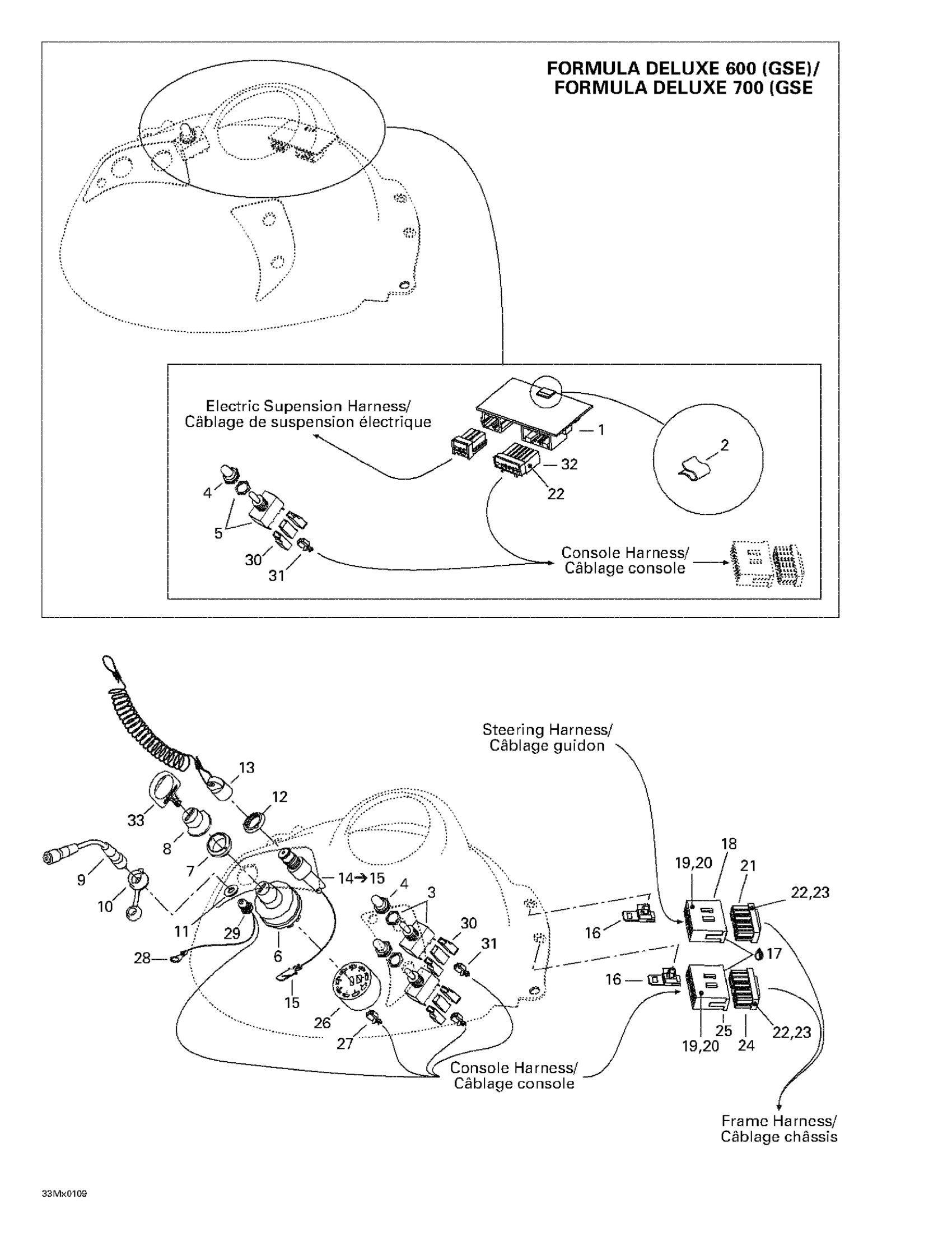

Ski-Doo Formula Deluxe 500/600/700, 2001 Electrical System 2 Diagram

#

Description
Price

1

Electrical Control Unit (SE, Europe) | Legend 600. Legend 800.

515175547

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Switch (Heating Grip) | FREERIDE

410107300

$33.55

4

Switch Cover

515175281

$14.58

Switch Cover

515175281

$14.58

5

Switch (Compressor) | Grand Touring 600. Grand Touring 800.

410111500

Unavailable

6

IGNITION SWITCH - Call your local BRP dealership | Formula Deluxe 380 F.

410111300

Unavailable

7

FACE NUT - Call your local BRP dealership

410112100

Unavailable

8

Switch Boot

570013700

$10.49

9

EXTENSION - Call your local BRP dealership

515175971

Unavailable

10

Cap

572103300

$9.36

11

Washer

503175800

$3.16

12

Safety Nut (DESS Switch)

278002963

$3.12

13

DESS

515178284

$79.07

14

DESS SWITCH - Call your local BRP dealership

515175145

Unavailable

15

Male Terminal

515175232

$1.45

16

Housing Support

515175283

$8.18

17

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

18

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

Unavailable

19

Male Terminal

515175232

$1.45

20

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

21

Female Terminal Housing, 13 Circuits

515175350

$12.49

22

Female Terminal

515175231

$4.00

23

Female Terminal

515175282

$6.24

24

FEMALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175349

Unavailable

25

MALE TERMINAL HOUSING, 15 CIRCUITS - Call your local BRP dealership

515175351

Unavailable

26

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

27

Female Terminal

561503100

Unavailable

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Female Terminal Housing, 1 Circuit

409010400

$7.25

31

Female Terminal

409010100

$5.30

32

Female Terminal Housing, 6 Circuits

515175543

$8.31

33

Blank Key

415129350

Unavailable

34

Frame Harness (Not Shown)

515175549

Unavailable

35

Console Harness (Not Shown)

515175551

Unavailable
