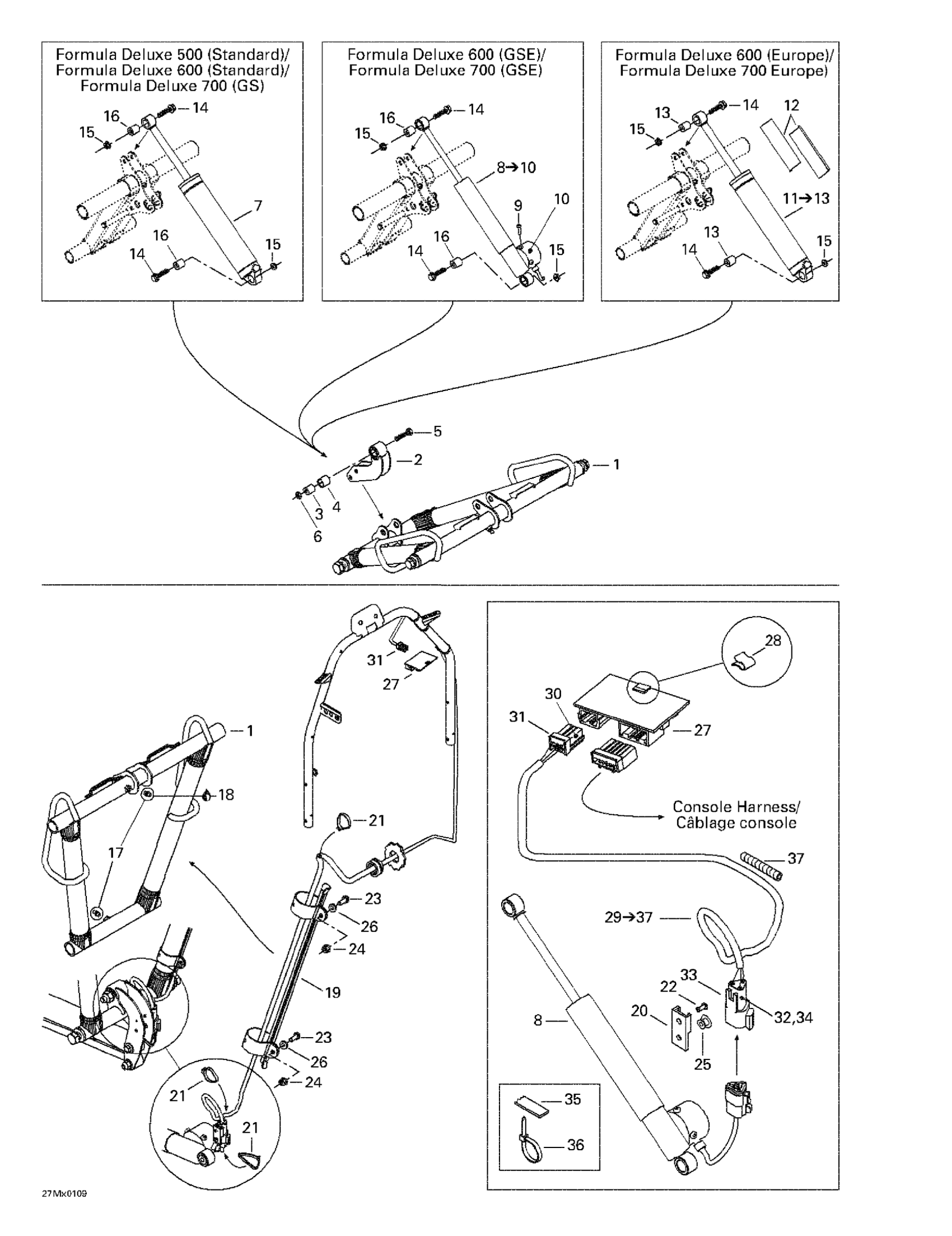

Ski-Doo Formula Deluxe 500/600/700, 2001 Rear Shocks Diagram

#

Description
Price

1

Front Arm

503189292

Unavailable

2

Rocker

503189303

Unavailable

3

Rocker Axle

503189388

Unavailable

4

Cushion

503189410

Unavailable

5

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

6

Elastic Locking Nut M10 X 1.5

233601416

$1.63

7

Rear Shock

503191582

$152.96

8

Electric Rear Shock (GSE) | Includes 8 - 10. Formula Deluxe 600. Formula Deluxe 700.

503189453

Unavailable

9

Bolt (SE, Europe) | Legend 600. Legend 800.

503189692

Unavailable

10

Actuator (SE, Europe) | Legend 600. Legend 800.

503189693

Unavailable

11

Rear Shock Kit (HPG) (Europe) | Includes 11 - 13. Formula Deluxe 600. Formula Deluxe 700.

860306300

Unavailable

12

HPG Decal (Europe)

516000182

Unavailable

13

Bushing

414936000

$11.21

14

Hex. Flange Screw M8 X 40

207684044

$1.43

15

Hex. Flange Elastic Nut M8

233281414

$1.31

16

Bushing

414936000

$11.21

17

Grease Fitting

408200700

$3.21

18

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

19

Grommet Support (SE, Europe) | Legend 600. Legend 800.

503189573

Unavailable

20

Bracket (SE, Europe) | Legend 600. Legend 800.

503189685

Unavailable

21

Tie-Rap 180 mm

414115200

$0.10

22

Pop Rivet 1/8" | SM5

390401600

$5.16

23

Hex. Screw M5 X 16 | 4X4

207151644

$0.85

24

Hex. Flange Elastic Nut M5

233251414

$1.91

25

Pop Rivet 3/16" | DS 650 X

390402000

$0.27

26

Flat Washer M5

234051410

$0.51

27

Electrical Control Unit (SE, Europe) | Legend 600. Legend 800.

515175547

Unavailable

28

Not Available As Spare Part - Friction Washer

Unavailable

29

ElectricSuspensionHarness(SE,Europe) | Includes 29 - 37. Legend 600. Legend 800.

515175553

Unavailable

30

Female Terminal

515175231

$4.00

31

Female Housing, 3 Circuits

515175495

$14.90

32

Male Terminal

278000631

$4.00

33

Male Housing

278002378

$12.52

34

Male Lock, 3 Circuits

409207600

$2.93

35

Tape

293740005

Unavailable

36

Tie Wrap 94 mm | 4X4

293750001

$0.96

37

Hose 6 Mm 15000Mm Long

219704360

$120.12
