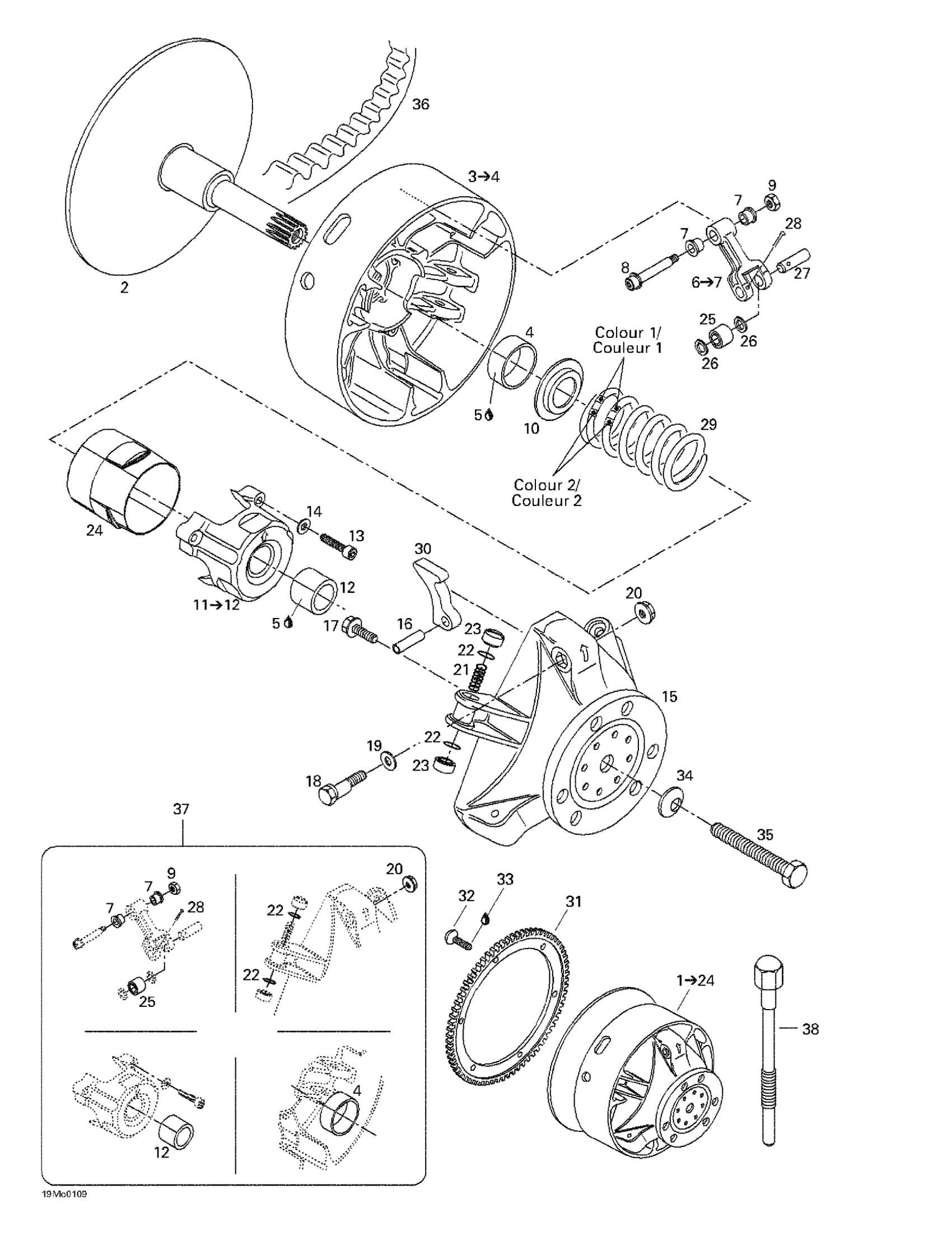

Ski-Doo Formula Deluxe 500/600/700, 2001 Drive Pulley Diagram
#
Description
Price
1
Drive Pulley Ass'y | Includes 1 - 24.
417222369
Unavailable
2
Fixed Flange
417222411
Unavailable
3
SLIDING FLANGE ASSY - Call your local BRP dealership | Includes 2 to 4
417222241
Unavailable
4
Bushing
417004201
Unavailable
6
LEVER ASSY - Call your local BRP dealership | Includes 5 to 6
417222383
Unavailable
7
Bushing
417004305
Unavailable
8
SCREW ASSY - Call your local BRP dealership | Includes 12 to 13
417004800
Unavailable
9
Elastic Stop Nut M6
232561414
Unavailable
10
Spring Seat
417222044
Unavailable
11
Spring Cover Ass‘Y | Includes 17 to 18
417222304
Unavailable
12
Bushing
417004501
Unavailable
13
Socket Head Screw M6 X 40
250000038
Unavailable
14
WASHER - Call your local BRP dealership
420245370
Unavailable
15
GOVERNOR CUP ASSY - Call your local BRP dealership
417222081
Unavailable
16
Pin M8 X 24
732804009
Unavailable
17
HEX. FORMING SCREW M6 X 18 - Call your local BRP dealership
210361890
Unavailable
18
CALIBRATION SCREW - Call your local BRP dealership
417222955
Unavailable
20
Hex. Flange Nut M6
233061414
Unavailable
21
Spring
417005700
Unavailable
24
Guard
417222176
Unavailable
27
Pin
417004308
Unavailable
29
SPRING (GREEN/BLUE) - Call your local BRP dealership
414768200
Unavailable
30
Ramp 281 | Formula Deluxe 500. Formula Deluxe 600.
417005281
Unavailable
RAMP 299 - Call your local BRP dealership
417222372
Unavailable
31
Ring Gear
417300057
Unavailable
32
Hex. Screw M8 X 16
236281684
Unavailable
33
Loctite 271, 10 ml
293800005
Unavailable
34
Spring Washer 14 mm
250200006
Unavailable
36
Drive Belt
414860700
Unavailable
Drive Belt
417300585
Unavailable
37
Clutch Repair Kit
417006100
Unavailable
38
Puller This part replaces 529022400.
529000064
Unavailable
