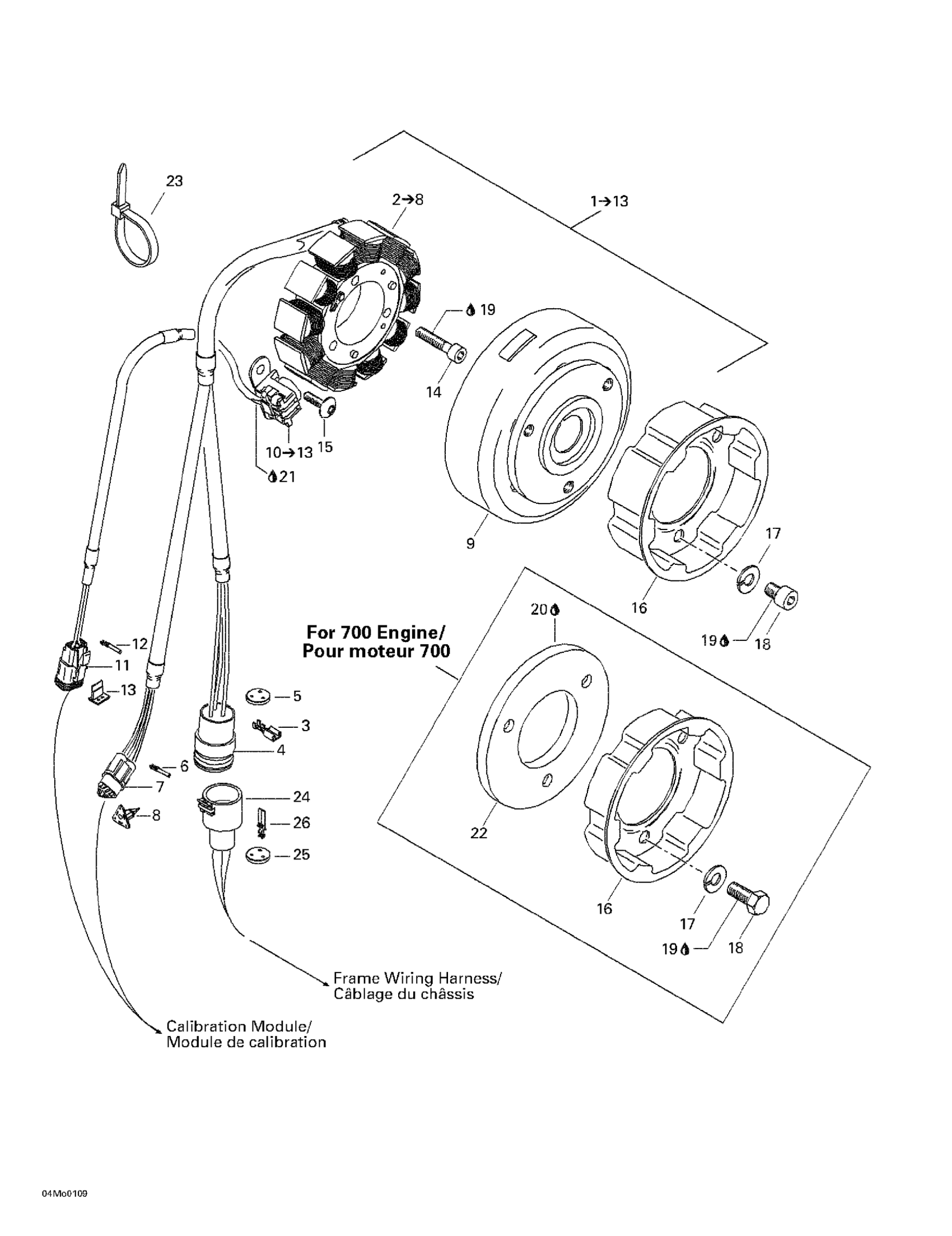

Ski-Doo Formula Deluxe 500/600/700, 2001 Magneto (12V, 290W) Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Stator Plate Ass'y | Includes 2 - 8.

410922934

Unavailable

3

FEMALE TERMINAL - Call your local BRP dealership

409011900

$3.82

4

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409208200

$10.74

5

SEAL - Call your local BRP dealership

409208500

Unavailable

6

Female Terminal

278000632

Unavailable

7

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

Unavailable

8

Female Lock

409207200

$3.48

9

Flywheel

410922933

Unavailable

10

Pickup Ass'y

410922925

Unavailable

11

Female Connector, 2 Circuits

409207300

$9.60

12

Female Terminal

278000632

Unavailable

13

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

14

Socket Head Screw M6 X 30

205063044

Unavailable

15

Torx Screw M6 X 16

420640324

$2.06

16

Starting Pulley

420852590

$28.43

Starting Pulley | Manual Start This part replaces 420852532.

420852533

Unavailable

17

Washer-Lock Din.128

420945832

Unavailable

18

Socket Head Screw M8 X 12

420841520

$1.68

Hex. Screw M8 X 20

207182044

$0.61

19

Loctite 243, 10 ml

293800060

$20.77

20

Sealant Loctite 648

219703000

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Flywheel

420866756

Unavailable

23

Tie Wrap 94 mm | 4X4

293750001

$0.83

24

MALE HOUSING - Call your local BRP dealership

409207900

$7.66

25

SEAL - Call your local BRP dealership

409208500

Unavailable

26

MALE TERMINAL - Call your local BRP dealership

409011100

$3.82
