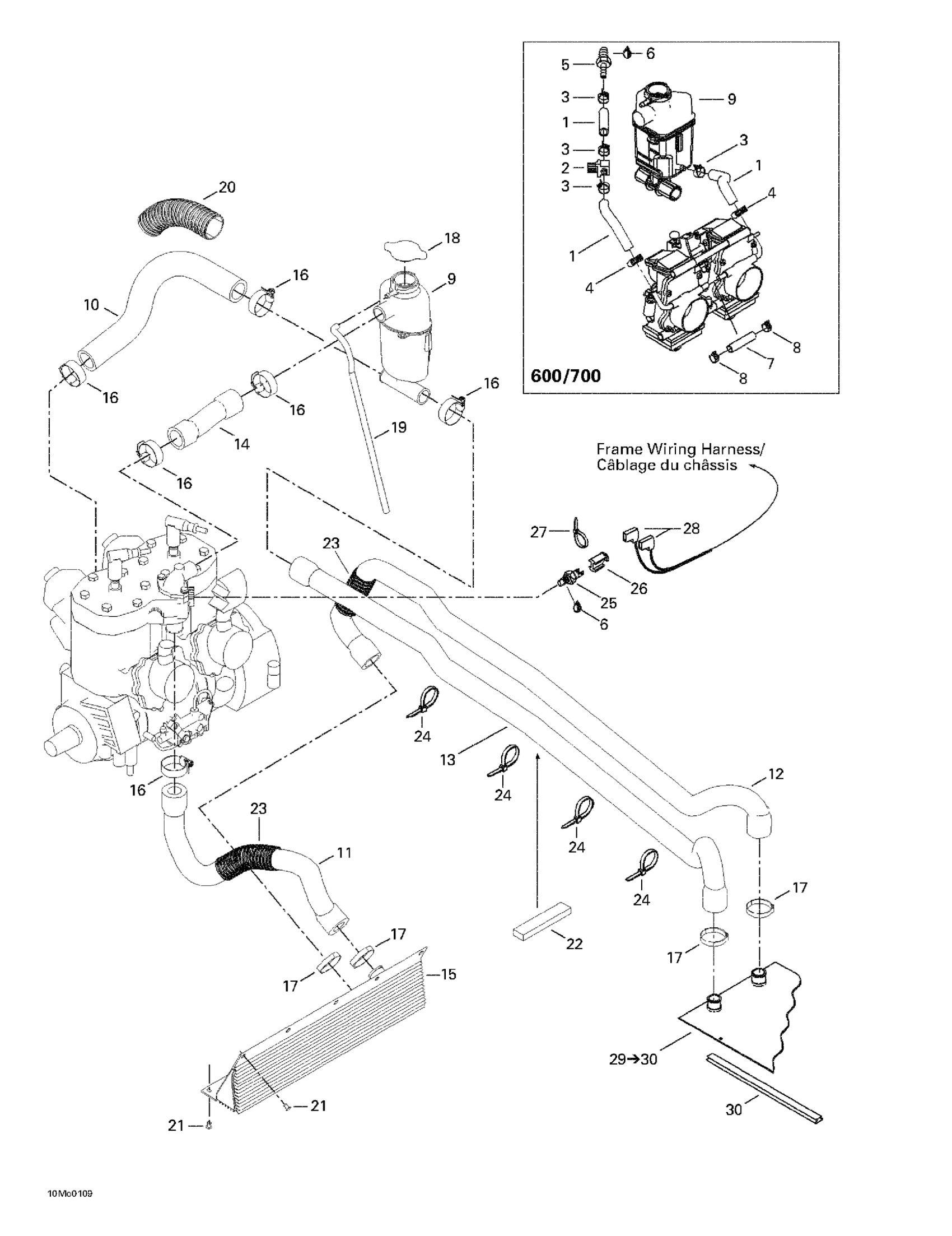

Ski-Doo Formula Deluxe 500/600/700, 2001 Cooling System Diagram

#

Description
Price

1

Hose 8 mm

509000093

Unavailable

2

Valve 5/16” | Grand Touring 500.

512059324

Unavailable

3

Spring Clamp

414655700

Unavailable

4

Tridon Gear Clamp

293650170

$1.74

5

STRAIGHT FITTING - Call your local BRP dealership | Grand Touring 500.

293710082

Unavailable

6

Was 293800018 Loctite 592, 50 ml | Package T

219704455

Unavailable

7

Hose | Grand Touring 500.

404161956

Unavailable

8

Clip | Grand Touring 500.

404161957

$16.12

9

Tank Coolant | Grand Touring 500. This part replaces 509000133.

509000134

Unavailable

Tank Coolant | Grand Touring 500. This part replaces 509000133.

509000134

Unavailable

10

Engine Inlet Hose

509000001

Unavailable

11

ENGINE OUTLET HOSE - Call your local BRP dealership | Grand Touring 500.

509000046

Unavailable

12

RADIATOR INLET HOSE - Call your local BRP dealership | Grand Touring 500.

509000003

Unavailable

13

Radiator Outlet Hose | Grand Touring 500.

509000004

Unavailable

14

Deviation Hose | Grand Touring 500.

509000112

Unavailable

15

Front Radiator | Grand Touring 500.

517297100

Unavailable

16

TRIDON GEAR CLAMP - Call your local BRP dealership

408800400

Unavailable

17

Oetiker Gear Clamp 36.1MM

509000045

Unavailable

18

Pressure Cap

509000187

Unavailable

19

Was 415110000 Polyurethane Hose 5.2 mm

219704414

Unavailable

20

Was 415084700 Protective Shield | Grand Touring 500.

219704413

Unavailable

21

Pop Rivet 3/16"

390402200

$0.26

22

Neoprene Seal (1PAC=3M)

219704364

$22.72

23

Tubing 25 MM 1000MM Long

219704402

Unavailable

24

Tie Wrap 368 mm

293750008

$0.85

25

Temperature Sensor | Grand Touring 500.

512047000

Unavailable

Temperature Sensor | Formula Deluxe 600. Formula Deluxe 700.

414728700

Unavailable

26

Connector Plug | Grand Touring 500.

515175297

Unavailable

27

Tie Wrap 142 mm

293750002

Unavailable

28

Female Terminal

409010300

$4.12

29

Rear Radiator | Includes 29 - 30.

517296300

Unavailable

30

Radiator Protector

518321655

Unavailable
