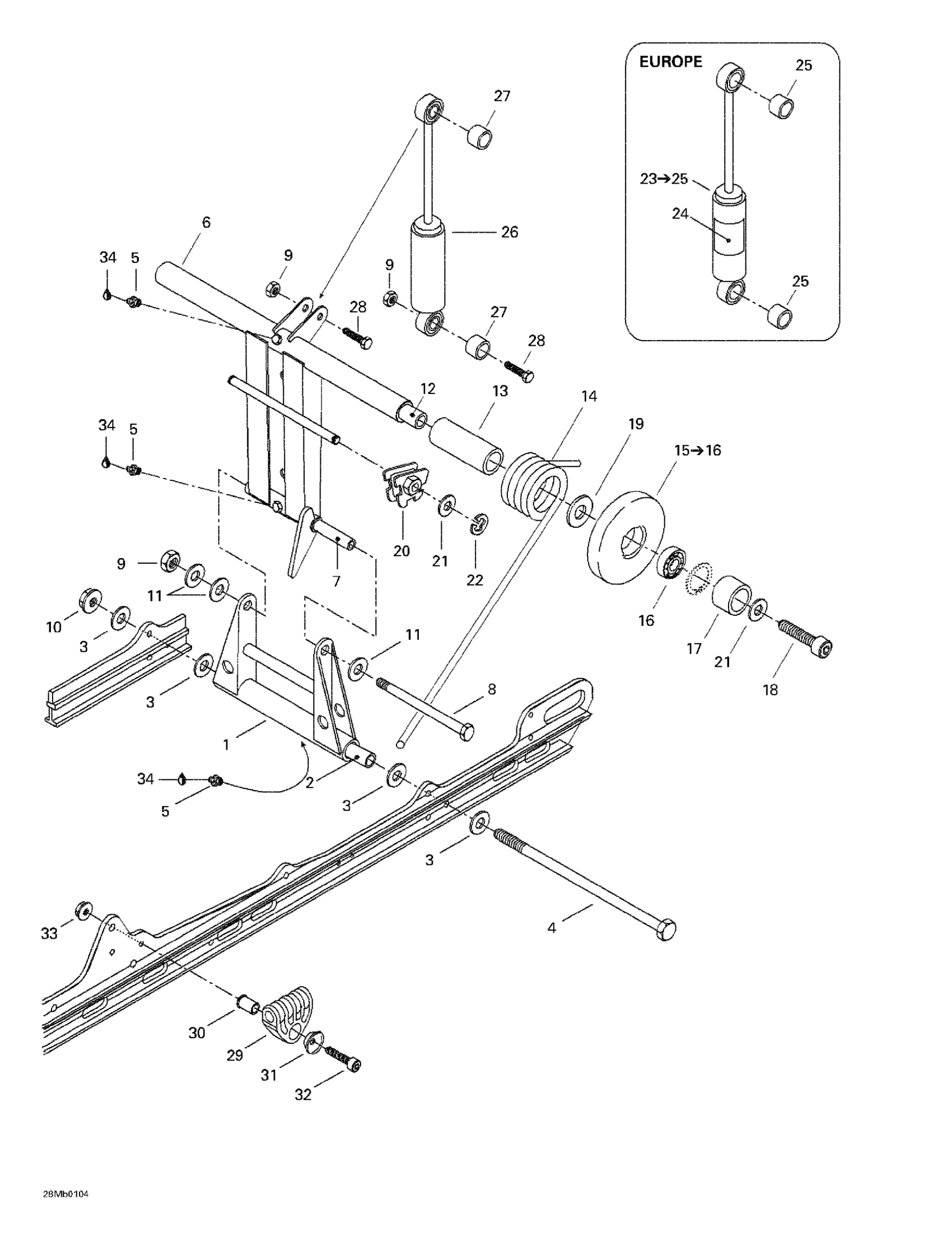

Ski-Doo Formula Deluxe 380 F, 2001 Rear Arm Diagram
#
Description
Price
2
Lower Axle Pivot
503154703
Unavailable
3
FLAT WASHER - Call your local BRP dealership
224081201
Unavailable
4
Bolt M8 X 248mm
503192440
Unavailable
5
Grease Fitting
408200700
Unavailable
6
Welded Rear Arm
503151200
Unavailable
7
Upper Axle, Pivot Arm
503144300
Unavailable
8
Bolt M8, Short
732601197
Unavailable
9
Hex. Elastic Stop Nut M8
232581414
Unavailable
10
Hex. Flange Elastic Nut M8
233281414
Unavailable
11
Flat Washer 8 mm
234081410
Unavailable
12
Transversal Rear Axle
503151400
Unavailable
13
Bushing
572047800
Unavailable
14
RH Spring
503189346
Unavailable
RH Spring (Europe) | MX Z 380 F.
503189354
Unavailable
LH Spring
503189347
Unavailable
LH Spring (Europe) | MX Z 380 F.
503189355
Unavailable
15
IDLER WHEEL 155 - Call your local BRP dealership | Includes 15 - 16.
572094300
Unavailable
17
Spacer
503154200
Unavailable
20
RH ADJUST CAM - Call your local BRP dealership
572030900
Unavailable
LH ADJUST CAM - Call your local BRP dealership
572030800
Unavailable
21
Washer
732900049
Unavailable
22
e Circlip
371907100
Unavailable
23
Rear HPG Shock Kit (Europe) | Includes 23 - 25. MX Z 380 F.
860305000
Unavailable
24
HPG Decal (Europe)
516000182
Unavailable
25
CUSHION - Call your local BRP dealership
414802600
Unavailable
26
Shock
503188905
Unavailable
27
Bushing
414936000
Unavailable
28
Hex. Screw M8 X 40
207084044
Unavailable
29
Spring Support
503189657
Unavailable
30
Spring Guide Axle
503188934
Unavailable
31
CUSHION RETAINER - Call your local BRP dealership
503188929
Unavailable
32
Socket Head Screw M8 X 45
205084544
Unavailable
33
Hex. Flange Elastic Nut M8
233281414
Unavailable
34
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
