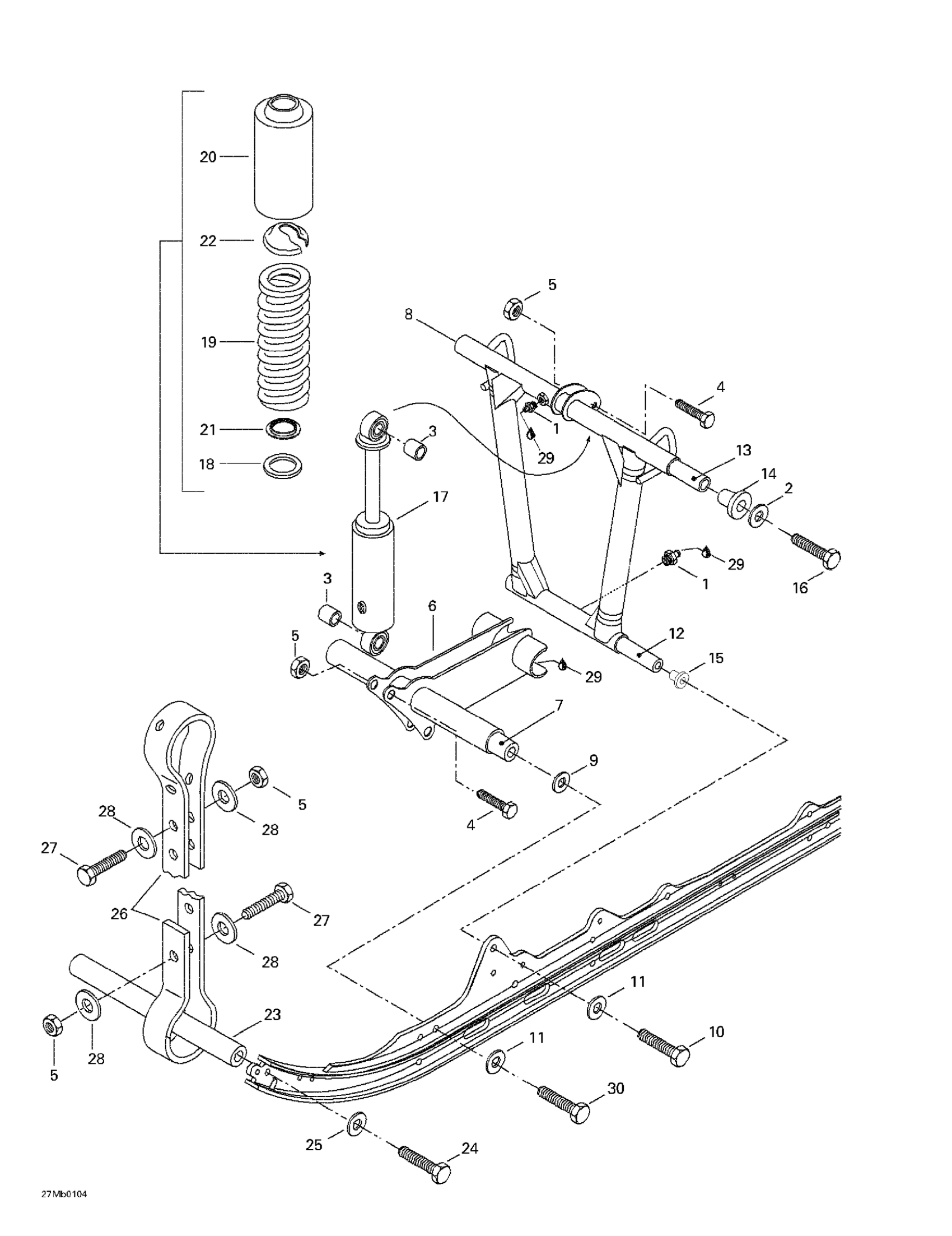

Ski-Doo Formula Deluxe 380 F, 2001 Front Arm Diagram

#

Description
Price

1

Grease Fitting

408200700

Unavailable

2

Washer

732900049

Unavailable

3

Bushing

414936000

Unavailable

4

Hex. Screw M8 X 40

207084044

Unavailable

5

Hex. Elastic Stop Nut M8

232581414

Unavailable

6

Welded Shock Support

503182100

Unavailable

7

Lower Axle

503174800

Unavailable

8

Welded Front Arm

503189311

Unavailable

9

Washer

503189157

$3.20

10

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

11

Washer

503189276

Unavailable

12

SHAFT - Call your local BRP dealership

503189313

Unavailable

13

SHAFT - Call your local BRP dealership

503190387

Unavailable

14

Bushing

503189324

$11.17

15

CUSHION - Call your local BRP dealership

503189323

Unavailable

16

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

Unavailable

17

Shock

503188903

Unavailable

18

WASHER - Call your local BRP dealership

503184400

$2.75

19

Spring

415069900

Unavailable

20

Protector

503193663

Unavailable

21

GUIDE_SPRING - Call your local BRP dealership

503165100

$1.91

22

Spring Stopper

706200881

$10.30

23

Axle

503151600

$15.35

24

HEX. SCREW M8 X 30, SCOTCH GRIP - Call your local BRP dealership

207383044

Unavailable

25

Washer

503189157

$3.20

26

STOPPER STRAP - Call your local BRP dealership

503190782

Unavailable

27

Hex. Screw M8 X 25

207182544

Unavailable

28

Flat Washer

224081301

$0.86

29

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

30

Hex. Screw M12 x 35 (Scotch Grip)

207323544

Unavailable
