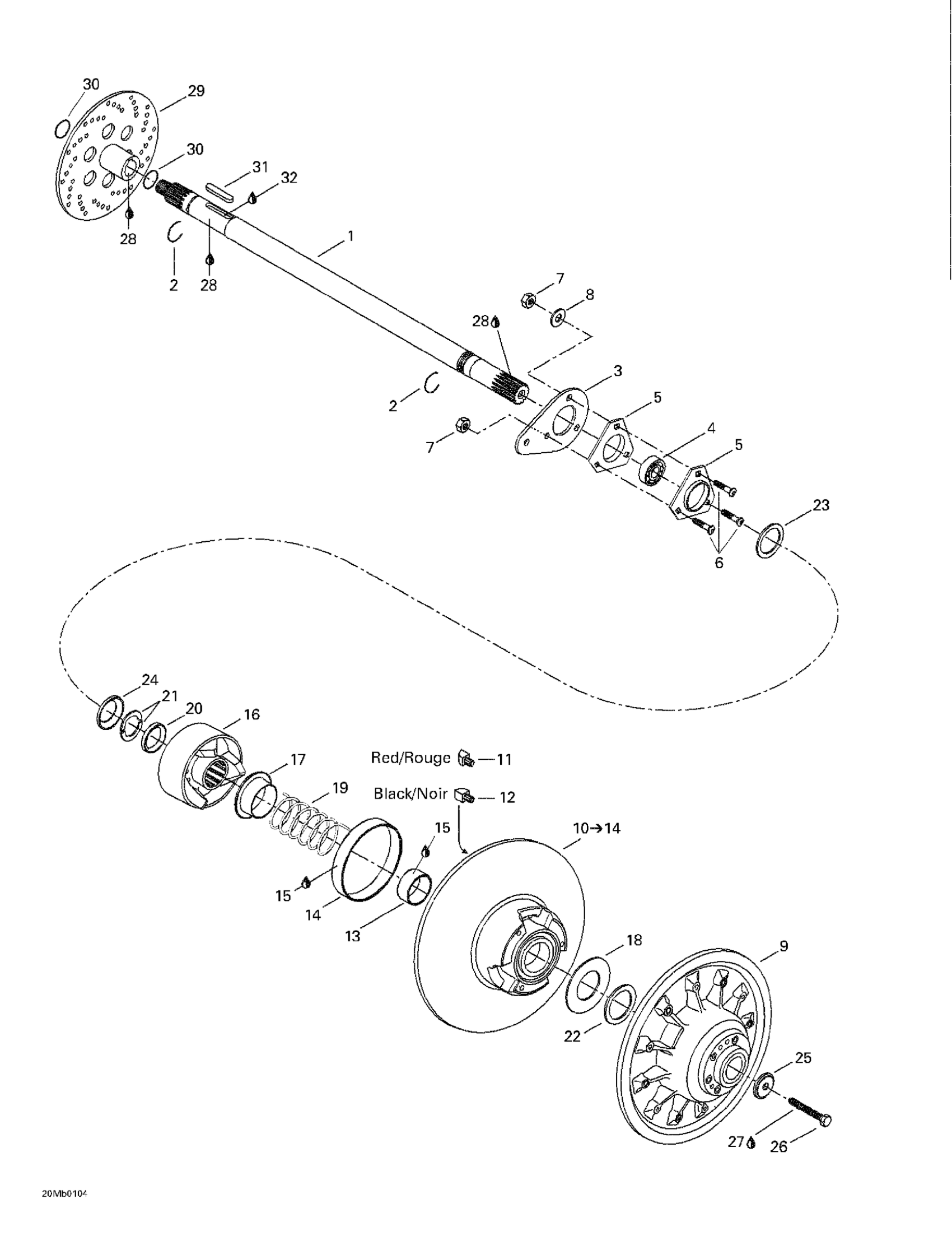

Ski-Doo Formula Deluxe 380 F, 2001 Driven Pulley Diagram

#

Description
Price

1

Countershaft

504151747

Unavailable

2

Circlip

371910000

$0.96

3

Spacer

501022300

Unavailable

4

BALL BEARING - Call your local BRP dealership

504152008

Unavailable

5

FLANGE - Call your local BRP dealership

501025000

Unavailable

6

SOCKET HEAD SCREW M8 X 25 - Call your local BRP dealership

205482546

Unavailable

7

Hex. Elastic Stop Nut M8

232581414

$0.54

8

Flat Washer 8 mm

234081410

$0.79

9

FIXED FLANGE ASS'Y - Call your local BRP dealership

417126401

Unavailable

10

Sliding Flange Ass'y | Includes 2 to 6

417126403

Unavailable

11

REAR CAM SLIDER SHOE, RED - Call your local BRP dealership

417126373

Unavailable

12

Front Cam Slider Shoe, Black This part replaces 619100040.

417126374

$3.18

13

BUSHING - Call your local BRP dealership

417126901

Unavailable

14

Bushing

415092700

Unavailable

15

Loctite 609, 10 ml

413703100

$23.85

16

Cam Ass'y

417124700

Unavailable

17

GUARD - Call your local BRP dealership

415006000

Unavailable

18

STOPPER WASHER - Call your local BRP dealership

504099600

Unavailable

19

YELLOW SPRING - Call your local BRP dealership

415092800

Unavailable

20

Spacer

417126368

Unavailable

21

HALF KEY - Call your local BRP dealership

371911000

Unavailable

22

SHIM - Call your local BRP dealership

504112300

Unavailable

23

Spacer

417300265

$2.06

24

Protector

417300055

Unavailable

25

Strength Washer

517302322

$10.76

26

Hex. Screw M8 X 80

207088044

$1.54

27

Loctite 243, 10 ml

293800060

$21.49

28

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

293800023

Unavailable

29

WELDED DISK - Call your local BRP dealership

507029000

Unavailable

30

O'RING - Call your local BRP dealership

414928900

Unavailable

31

KEY - Call your local BRP dealership

507021300

Unavailable

32

Not Available As Spare Part - Friction Washer

Unavailable
