Description

Price

1

Flange Connector

420810955

$105.35

2

Allen Screw M6 x 22 This part replaces 420840401.

420840403

$1.25

3

Rewind Starter Assy | Includes 3 - 12.

420888212

Unavailable

3

Starter Housing

420811340

Unavailable

4

Rewind Spring

420939115

$25.32

5

Rope Sheave

420852480

$65.99

6

Was 412500100 Rope-Starter

219704403

$10.15

7

Key Clamp

420852070

$3.50

8

Pawl

420852296

$19.20

9

PAWL LOCK - Call your local BRP dealership

420852302

Unavailable

10

Stage Sleeve

420847926

$14.54

11

O-Ring

420250400

$5.22

12

Lock Ring

420852520

$8.34

13

Locking Element

420845560

$2.03

14

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$4.65

15

Molykote PG 54, 10 g

420899763

$18.82

16

Starter Grip

572084400

$14.54

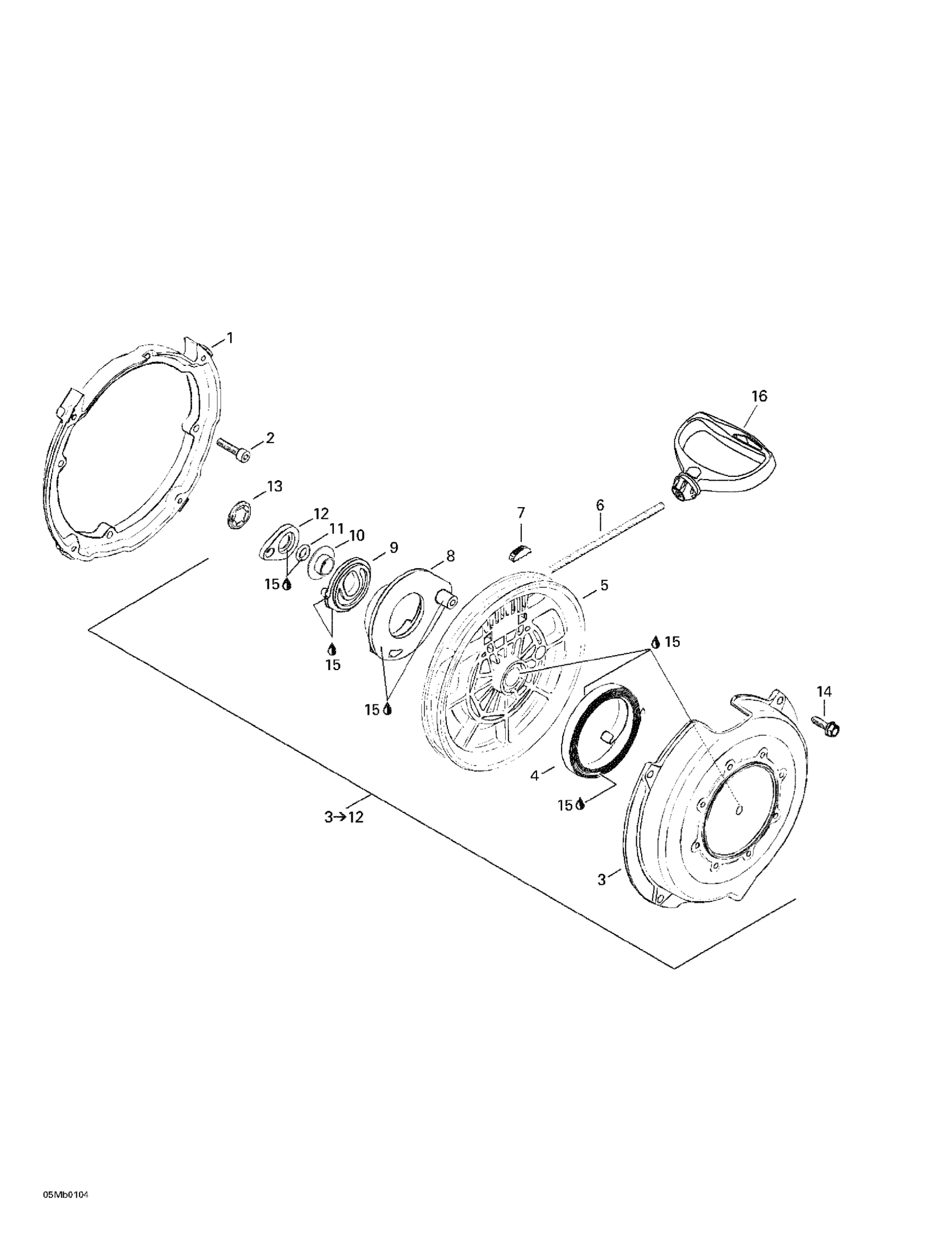

Ski-Doo Formula Deluxe 380 F, 2001 Rewind Starter Diagram

Flange Connector

Allen Screw M6 x 22 This part replaces 420840401.

Rewind Starter Assy | Includes 3 - 12.

Starter Housing

Rewind Spring

Rope Sheave

Was 412500100 Rope-Starter

Key Clamp

Pawl

PAWL LOCK - Call your local BRP dealership

Stage Sleeve

O-Ring

Lock Ring

Locking Element

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

Molykote PG 54, 10 g

Starter Grip
