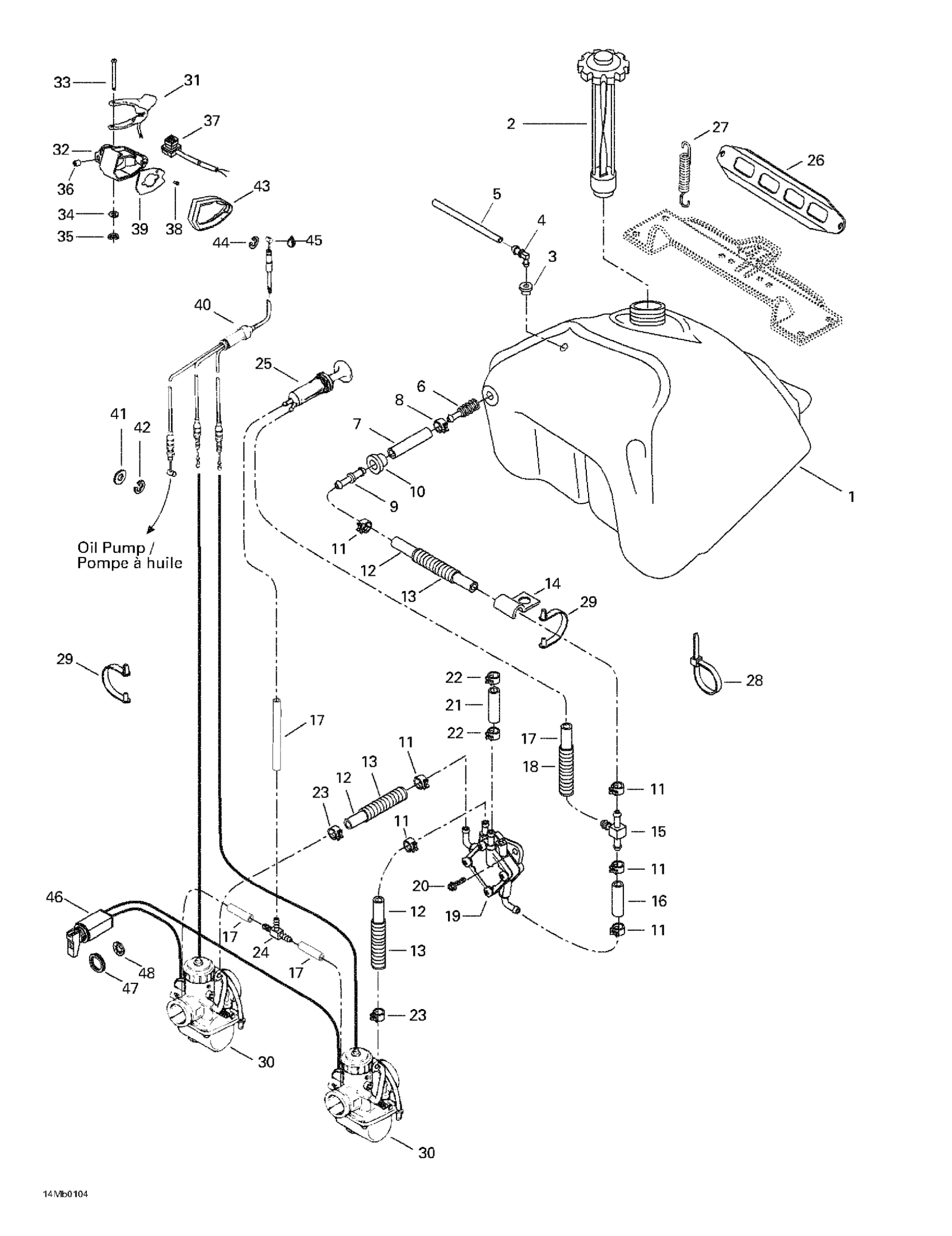

Ski-Doo Formula Deluxe 380 F, 2001 Fuel System Diagram

#

Description
Price

1

Fuel Tank

572108900

Unavailable

2

Fuel Tank Cap

572161200

Unavailable

3

Grommet

709200285

$8.38

4

Male Connector

414814100

$2.18

5

Was 415080100 Fuel Line Primer 3,2mm

219704409

Unavailable

6

Fuel Filter

414865700

$8.39

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Clamp

513033011

Unavailable

9

Male Connector

414518500

$3.50

10

Grommet

570045500

Unavailable

11

Spring Clamp

414554800

$0.83

12

Polyurethane Hose 10000Mm Long

219704410

Unavailable

13

Tubing 10 MM 1000MM Long

219704407

Unavailable

14

CLIP - Call your local BRP dealership

415018200

$2.89

15

T-fitting

414222500

$1.33

16

Polyurethane Hose 10000Mm Long

219704410

Unavailable

17

Was 415080100 Fuel Line Primer 3,2mm

219704409

Unavailable

18

Tubing 6 Mm 3000Mm Long

219704425

$13.14

19

Fuel Pump

403801000

Unavailable

20

Hex. Flange Screw M6 X 16

210261650

$1.22

21

Hose

219704549

Unavailable

22

Spring Clamp

414415200

$0.83

23

Spring Clamp

414420700

Unavailable

24

T-Fitting

414222400

Unavailable

25

Primer

415060500

Unavailable

26

Fuel Tank Bracket

517249200

Unavailable

27

SPRING - Call your local BRP dealership

517182100

Unavailable

28

Tie-Rap 180 mm

414115200

$0.09

29

CABLE CLIP - Call your local BRP dealership

414379300

$4.58

30

Carburetor VM 30-200 | Includes 1 - 36.

403138600

Unavailable

31

Handle Ass’Y

512059624

Unavailable

32

Throttle Housing

512060603

$10.57

33

Lever Pin

414438700

$11.14

34

Flat Washer M5, Stainless

234051600

$0.64

35

Circlip | Model-RS

414439000

Unavailable

36

Socket Set Screw M8 X 10

414440800

$4.00

37

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.58

38

Screw

414473200

$3.69

39

Plate

512060390

$9.31

40

THROTTLE CABLE AND HOUSING - Call your local BRP dealership

414883100

Unavailable

41

Flat Washer 8 mm, Nylon

234081100

$1.00

42

Circlip

414753500

$0.59

43

THROTTLE COVER - Call your local BRP dealership

572044600

Unavailable

44

Circlip

414274500

Unavailable

45

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

46

CHOKE CABLE - Call your local BRP dealership

414967000

Unavailable

47

NUT-PLASTIC - Call your local BRP dealership

512059364

Unavailable

48

Lock Washer, Interior Teeth

394103300

Unavailable
