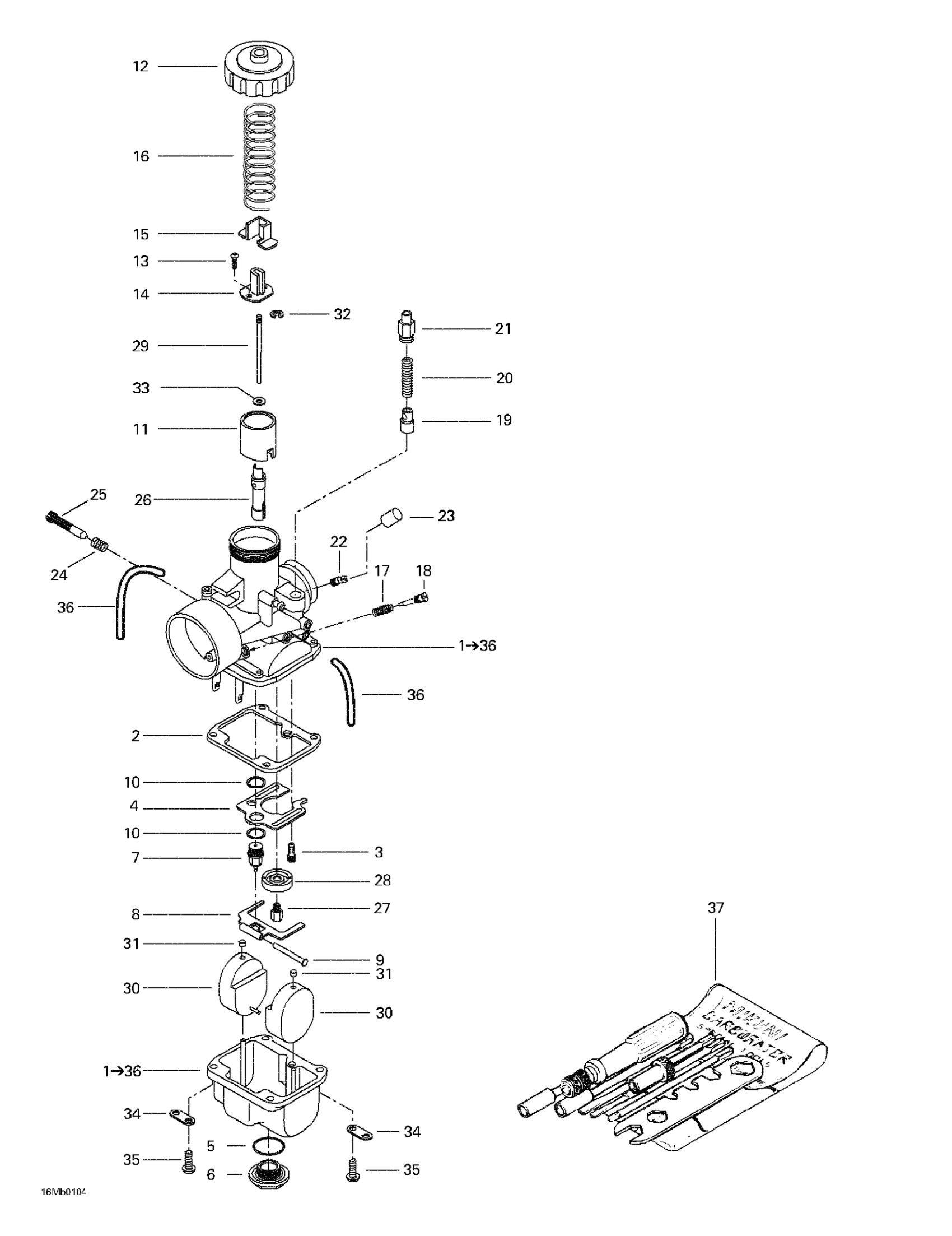

Ski-Doo Formula Deluxe 380 F, 2001 Carburetors Diagram

#

Description
Price

1

Carburetor VM 30-200 | Includes 1 - 36.

403138600

Unavailable

2

Gasket | Includes 1900a to 1900am

404104200

$6.49

3

PILOT JET PJ40 - Call your local BRP dealership

404109100

Unavailable

4

BAFFLE - Call your local BRP dealership

404109600

Unavailable

5

O-Ring

404107300

$8.14

6

Drain Plug Screw

404107400

$23.99

7

Needle Valve 1.5

404103200

$32.99

8

Float Lever

404107600

$23.99

9

Lever Pin

404103300

$6.39

10

Seat Washer

404101600

$3.31

11

Piston Valve 2.5

404128400

$129.97

12

Cover

404103700

$32.99

13

Screw With Washer

404121300

$4.29

14

Packing

404161948

Unavailable

15

Cover

404122100

$18.43

16

Spring

404154800

$24.99

17

Spring

404101800

$4.39

18

Air Screw

404102300

$14.91

19

PLUNGER ASS'Y - Call your local BRP dealership

404161000

$19.97

20

SPRING - Call your local BRP dealership | MAG Side

404127400

Unavailable

21

GUIDE HOLDER - Call your local BRP dealership | MAG Side

404161100

Unavailable

22

Nipple

404153400

$11.51

23

Cap

404156600

$16.12

24

Spring

404101700

$4.29

25

Idle Speed Screw

404109700

$18.43

26

NEEDLE JET - Call your local BRP dealership

404107000

$15.35

27

Main Jet MJ 140

404126600

$8.14

28

BAFFLE RING - Call your local BRP dealership

404110900

Unavailable

29

Needle JN 6DP9-3

404152600

Unavailable

30

FLOAT - Call your local BRP dealership

404107100

$25.35

31

Cap

404105800

$6.49

32

E-Ring

404152400

$6.55

33

Packing

404117000

$3.39

34

PLATE - Call your local BRP dealership

404103000

$8.51

35

Screw With Lock Washer

404102000

$3.29

36

HOSE - Call your local BRP dealership

404161880

Unavailable

37

TOOL KIT - Call your local BRP dealership

404112000

Unavailable
