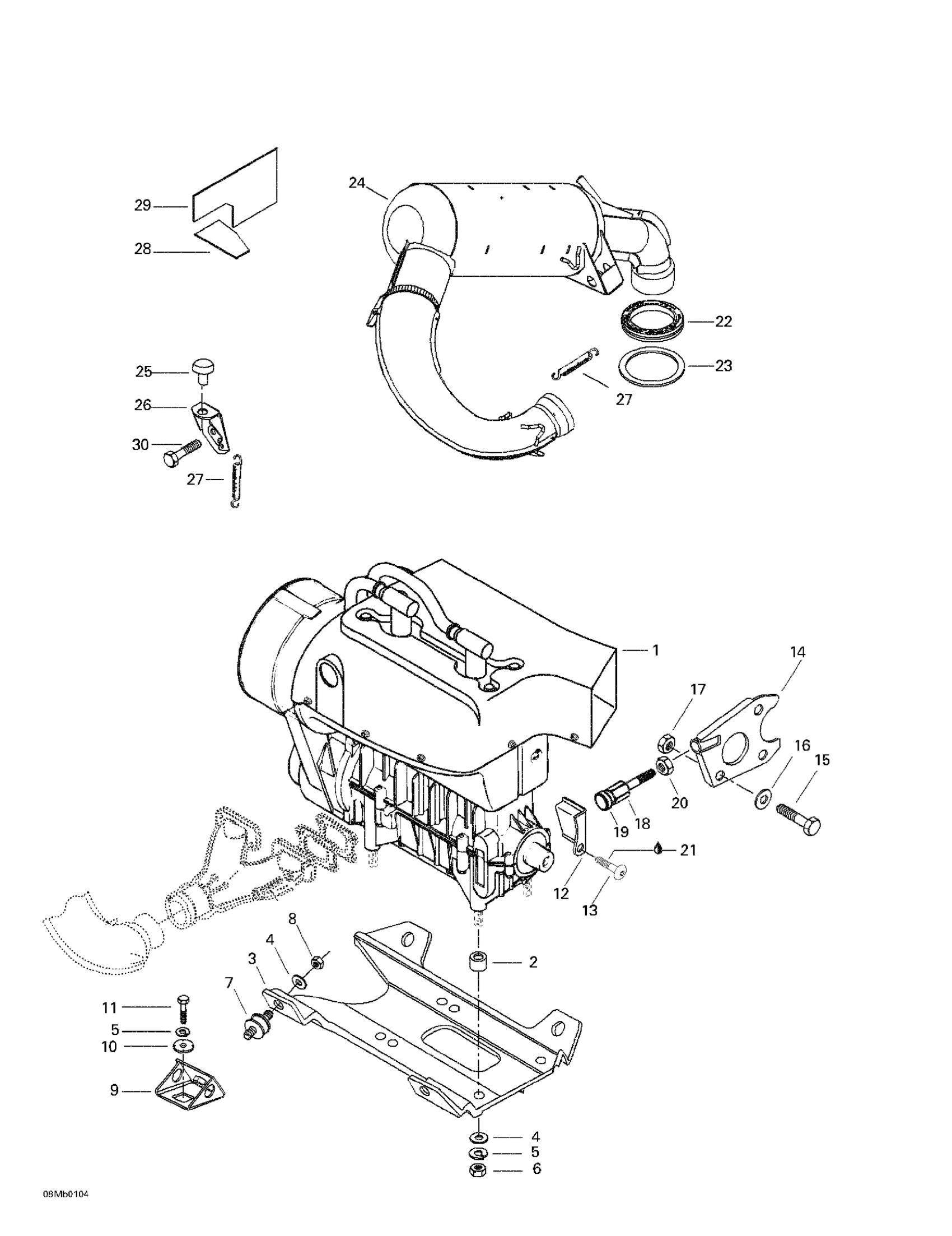

Ski-Doo Formula Deluxe 380 F, 2001 Engine Support And Muffler Diagram

#

Description
Price

1

<<377>> Engine

400308905

Unavailable

2

Spacer

512057700

Unavailable

3

Engine Support

512059134

Unavailable

4

Flat Washer 10 mm

234001410

$1.12

5

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

6

Hex. Nut M10 X 1.5

232006414

$1.27

7

RUBBER MOUNT - Call your local BRP dealership

570127700

Unavailable

8

Elastic Locking Nut M10 X 1.5

233601416

$1.63

9

Engine Support

512050900

Unavailable

10

Lock Washer

512056700

$3.01

11

Hex. Screw M10 X 25

207102544

$1.27

12

Stopper Plate

512059198

Unavailable

13

Hex. Screw M8 X 20

236282084

$1.43

14

Support Plate

517271800

Unavailable

15

Hex. Screw M8 X 25

207182544

$0.85

16

Flat Washer 8 mm

234081410

$0.79

17

Hex. Elastic Stop Nut M8

232581414

$0.54

18

Screw

517244200

Unavailable

19

Rod retainer

570025100

Unavailable

20

HEX. NUT M12 - Call your local BRP dealership

232120414

Unavailable

21

Loctite 271, 10 ml

293800005

$23.85

22

EXHAUST GROMMET - Call your local BRP dealership

570039000

Unavailable

23

Aluminum Washer

514049300

Unavailable

24

Muffler

514052852

Unavailable

25

Rubber Bumper

514053654

$47.73

26

Muffler Support

514044100

Unavailable

27

SPRING - Call your local BRP dealership

517182100

Unavailable

28

Reflection Sheet

514052858

Unavailable

29

Reflection Sheet

514052949

Unavailable

30

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable
