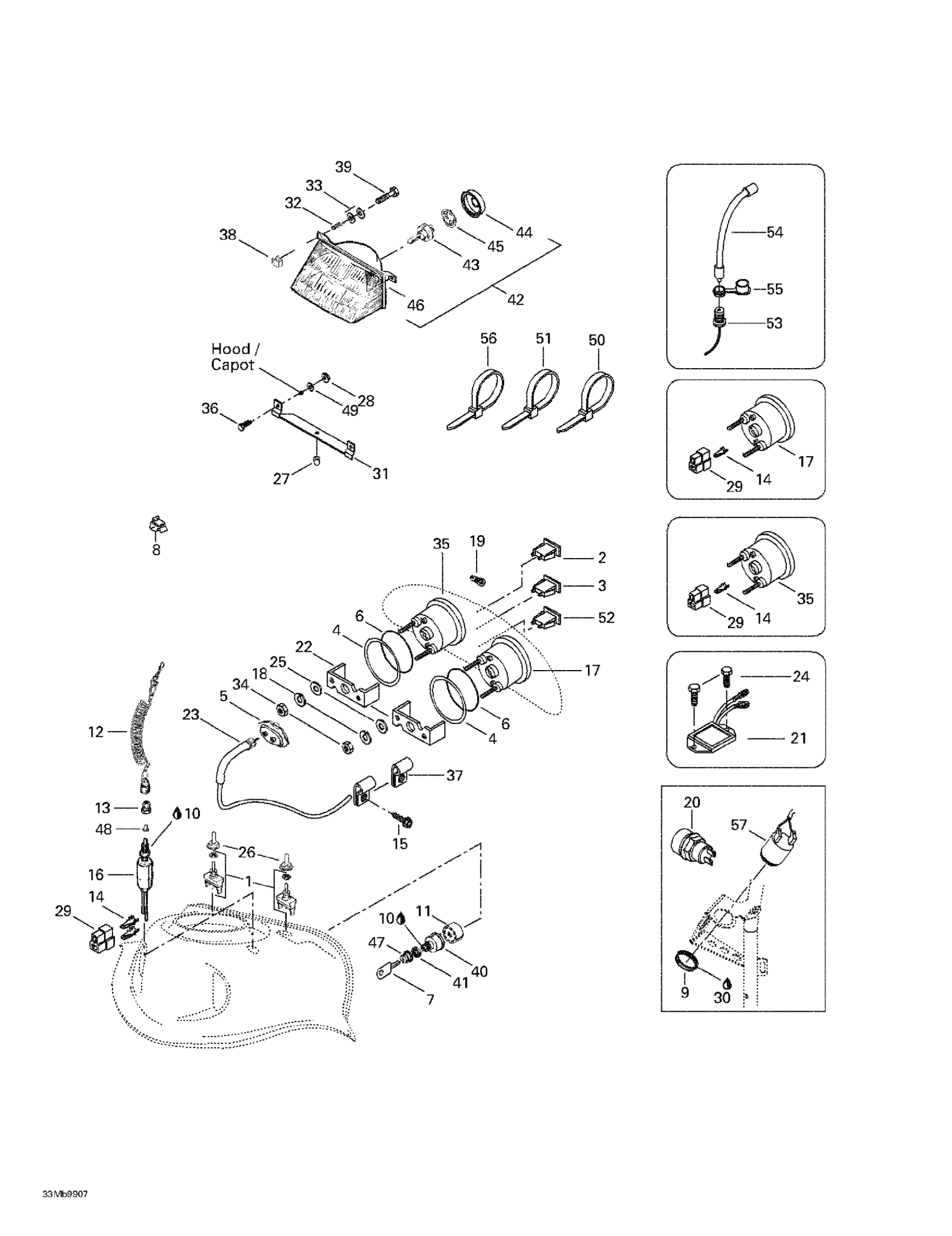

Ski-Doo Formula Deluxe 380/500, 1999 Electrical System Diagram

#

Description
Price

1

Switch (Heating Grip) | FREERIDE

410107300

$34.58

2

Pilot Lamp (Red)

410109500

Unavailable

3

Pilot Lamp (Blue)

410109600

Unavailable

4

Washer

517258500

Unavailable

5

Drive Angle | Formula S.

572022300

Unavailable

6

O-Ring

414807100

Unavailable

7

Blank Key

415129350

Unavailable

8

Clip

414227300

$1.45

9

PLASTIC NUT - Call your local BRP dealership

414805101

$3.57

10

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

11

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

12

Cap Ass'y

515178283

$37.66

13

Switch Nut

515145900

$10.83

14

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

15

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

16

Brake Switch

515175653

$15.57

17

Speedometer (KMH)

415097000

Unavailable

Speedometer (MPH)

415097100

Unavailable

18

Lock Washer

414806700

Unavailable

19

INSTRUMENTATION BULB - Call your local BRP dealership

410504200

Unavailable

20

Push Button

415130372

Unavailable

21

VOLTAGE REGULATOR - Call your local BRP dealership | Skandic 500F. Skandic 500F (SWT).

515175546

Unavailable

22

Case Holder

414806500

Unavailable

23

Speedometer Cable

414761400

Unavailable

24

Hex. Flange Screw M6 X 16

210261650

$1.22

25

Flat Washer

517225900

$0.17

26

Switch Cover

515175281

$15.03

27

RUBBER STOPPER - Call your local BRP dealership

410608200

$5.35

28

Elastic Stop Nut M5

232551414

Unavailable

29

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

30

Silicone Sealant 51388, 300 ml

296000309

Unavailable

31

Headlamp Support

517218500

Unavailable

32

Spring

517168600

Unavailable

33

Flat Washer M5

234051410

Unavailable

34

Nut

414806900

Unavailable

35

Tachometer | Formula Deluxe 500.

415098000

Unavailable

36

Hex. Screw M5 X 12

207151244

Unavailable

37

Open Clamp

414176000

$1.86

38

Projector Nut

572078600

Unavailable

39

Screw M4 x 40

732603002

Unavailable

40

IGNITION SWITCH - Call your local BRP dealership | Formula Deluxe 380 F.

410111300

Unavailable

41

FACE NUT - Call your local BRP dealership

410112100

$14.29

42

Headlamp | Includes 42 to 45

410609100

Unavailable

43

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

Unavailable

44

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

45

BULB HOLDER - Call your local BRP dealership

410608300

$9.97

46

Headlamp | Includes 53 to 56

410609300

Unavailable

47

Switch Boot

570013700

Unavailable

48

Plunger Cap

570151100

$10.14

49

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

50

Tie-Rap 180 mm

414115200

$0.09

51

Tie Wrap 368 mm

293750008

$0.85

52

PILOT LAMP, ELECTRIC REVERSE - Call your local BRP dealership | North America

410113400

$9.98

53

Visor Plug Harness | Formula Deluxe 380 F.

515175111

Unavailable

54

EXTENSION - Call your local BRP dealership

515175971

Unavailable

55

Cap

572103300

$9.65

56

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

$0.91

57

HORN - Call your local BRP dealership

515176035

Unavailable
