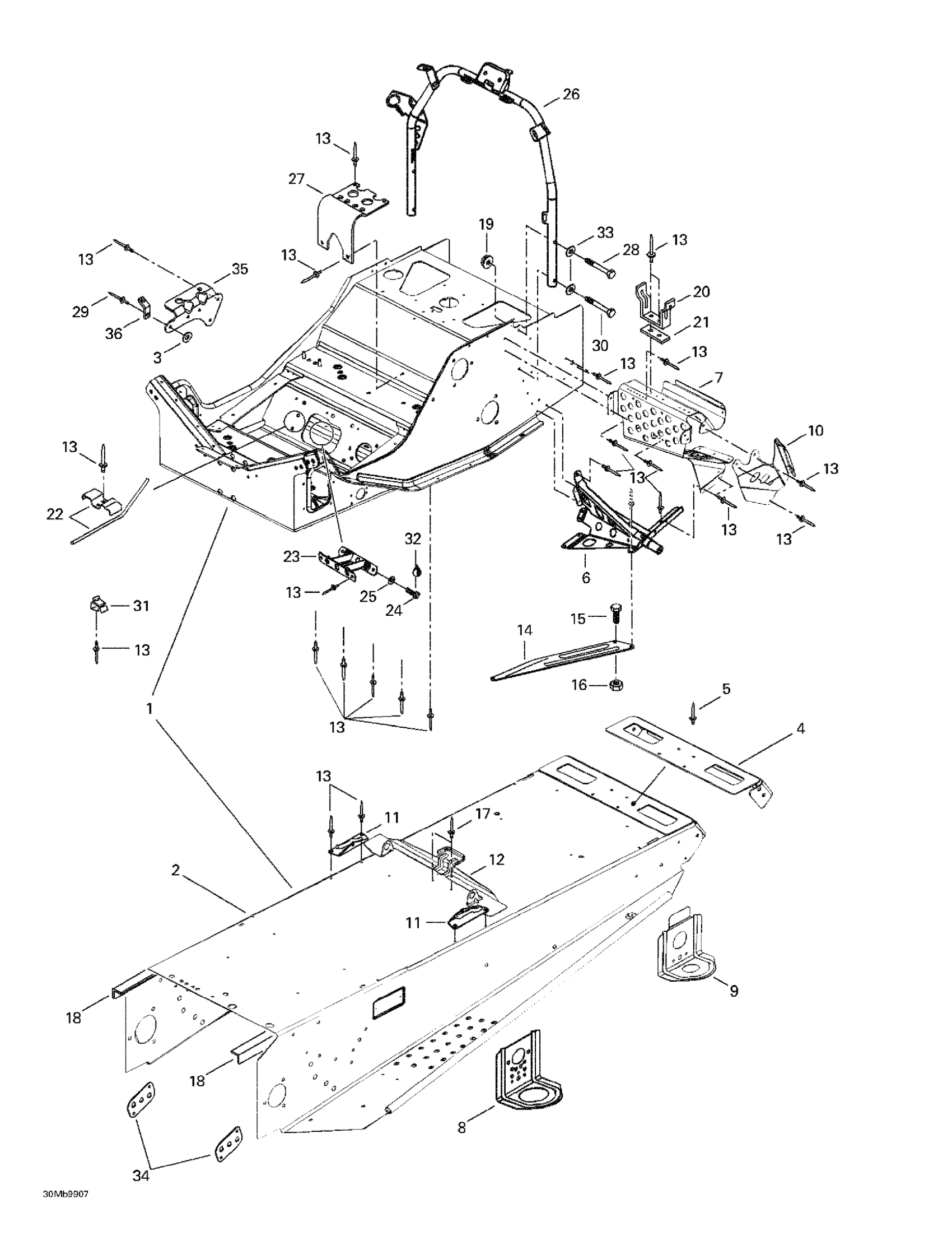

Ski-Doo Formula Deluxe 380/500, 1999 Frame And Accessories Diagram
#
Description
Price
1
Frame Ass'y | Includes 1 - 18.
518321641
Unavailable
2
Forming Frame
518321663
Unavailable
4
Cap-End
518321301
Unavailable
RH Footrest Support
518320506
Unavailable
7
RH Front Footrest
518318933
Unavailable
LH Front Footrest
518318934
Unavailable
8
Front Bracket
518321495
Unavailable
9
Rear Bracket
518308704
Unavailable
10
Upper Plate L.H
518308714
Unavailable
Upper Plate R.H
518308715
Unavailable
11
RH Tank Bracket
517266900
Unavailable
LH Tank Bracket
517267000
Unavailable
12
Seat Bracket
518317506
Unavailable
14
RH Reinforcement Plate
518316709
Unavailable
LH Reinforcement. Plate
518316710
Unavailable
15
Hex. Screw M5 X 16 | 4X4
207151644
Unavailable
16
Hex. Flange Elastic Nut M5
233251414
Unavailable
17
Pop Rivet 3/16"
390402400
Unavailable
18
LH Tunnel Reinforcement
518316713
Unavailable
RH Tunnel Reinforcement
518316714
Unavailable
19
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
22
Guide Rope
517276100
Unavailable
23
Reinf. Plate
518304741
Unavailable
25
Lock Washer 8 mm
234181401
Unavailable
26
Handle Steering Support
518321428
Unavailable
27
AIR INTAKE SUPPORT - Call your local BRP dealership
518310400
Unavailable
29
Pop Rivet 3/16"
390402300
Unavailable
32
Loctite 271, 10 ml
293800005
Unavailable
33
Flat Washer 6 mm
234061410
Unavailable
35
Muffler Support
518316704
Unavailable
