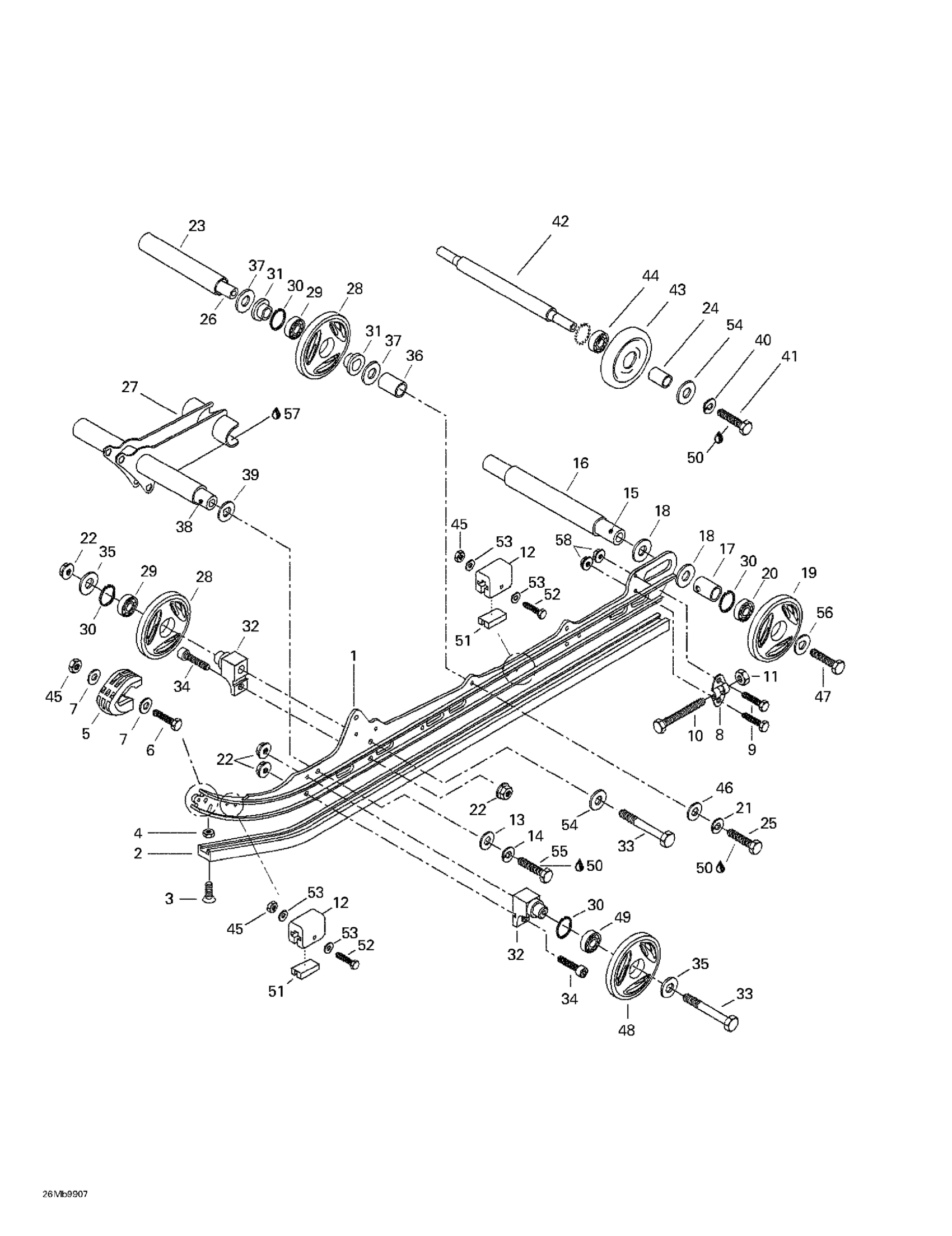

Ski-Doo Formula Deluxe 380/500, 1999 Rear Suspension Diagram

#

Description
Price

1

Runner

503188931

Unavailable

2

Runner-Shoe

560103400

Unavailable

3

Phillips Screw M6 X 25

208562560

Unavailable

4

Elastic Stop Nut M6

232561414

Unavailable

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

SCREW-HEX.CAP DIN.933 - Call your local BRP dealership

222052565

Unavailable

7

Washer | DS 650 X

391301600

Unavailable

8

Tensioner

503155300

Unavailable

9

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

10

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

11

Elastic Locking Nut M10 X 1.5

233601416

$1.68

12

Rubber Stopper

570063000

Unavailable

13

Flat Washer 12 mm

234021410

$0.68

14

Lock Washer 12 mm

224721218

Unavailable

15

REAR AXLE - Call your local BRP dealership

503162400

$83.05

16

SPACER - Call your local BRP dealership

503188941

$9.97

17

Outer Spacer

503189809

$15.35

18

Washer

503180400

$3.37

19

Wheel 165 mm Yellow

503190817

Unavailable

20

Ball Bearing

293350115

Unavailable

21

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

22

Hex. Flange Elastic Nut M8

233281414

Unavailable

23

Spacer

503153100

Unavailable

24

Spacer

572048300

Unavailable

25

Hex. Screw M10 X 35

207103544

Unavailable

26

WHEEL AXLE - Call your local BRP dealership

503188700

$39.97

27

Welded Shock Support

503182100

Unavailable

28

Wheel 135

503191029

Unavailable

29

Ball Bearing

293350115

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Cushion

503189534

Unavailable

32

SUPPORT - Call your local BRP dealership

503190389

Unavailable

33

Hex. Screw M8 X 80

207088044

Unavailable

34

Hex. Screw M8 X 25

207182544

Unavailable

35

Washer

503183100

$3.08

36

SPACER - Call your local BRP dealership

503188800

Unavailable

37

WASHER - Call your local BRP dealership

503154000

$4.20

38

Lower Axle

503174800

Unavailable

39

Hardened Washer

503175400

Unavailable

40

Lock Washer 8 mm

234181401

Unavailable

41

Hex. Screw M8 X 30

207183044

Unavailable

42

Wheel Support Axle

503153600

Unavailable

43

Idler Wheel | Includes 48 - 49.

572043500

Unavailable

44

Ball Bearing

405404600

$24.58

45

Elastic Stop Nut M5

232551414

Unavailable

46

Flat Washer 10 mm

234001410

Unavailable

47

Hex. Screw With Nylon

250000019

Unavailable

48

Wheel 135, Yellow

503190785

Unavailable

49

Ball Bearing

293350115

Unavailable

50

Loctite 271, 10 ml

293800005

Unavailable

51

Reinforcement Stopper

572084800

$5.25

52

SCREW-HEX.CAP DIN.931 - Call your local BRP dealership

222054065

Unavailable

53

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

54

Flat Washer 8 mm

234081410

Unavailable

55

SCREW-HEX.CAP M12 X 35 - Call your local BRP dealership

222023565

Unavailable

56

Washer

503183300

$5.68

57

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

58

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable
